Wiring Diagrams: SC300

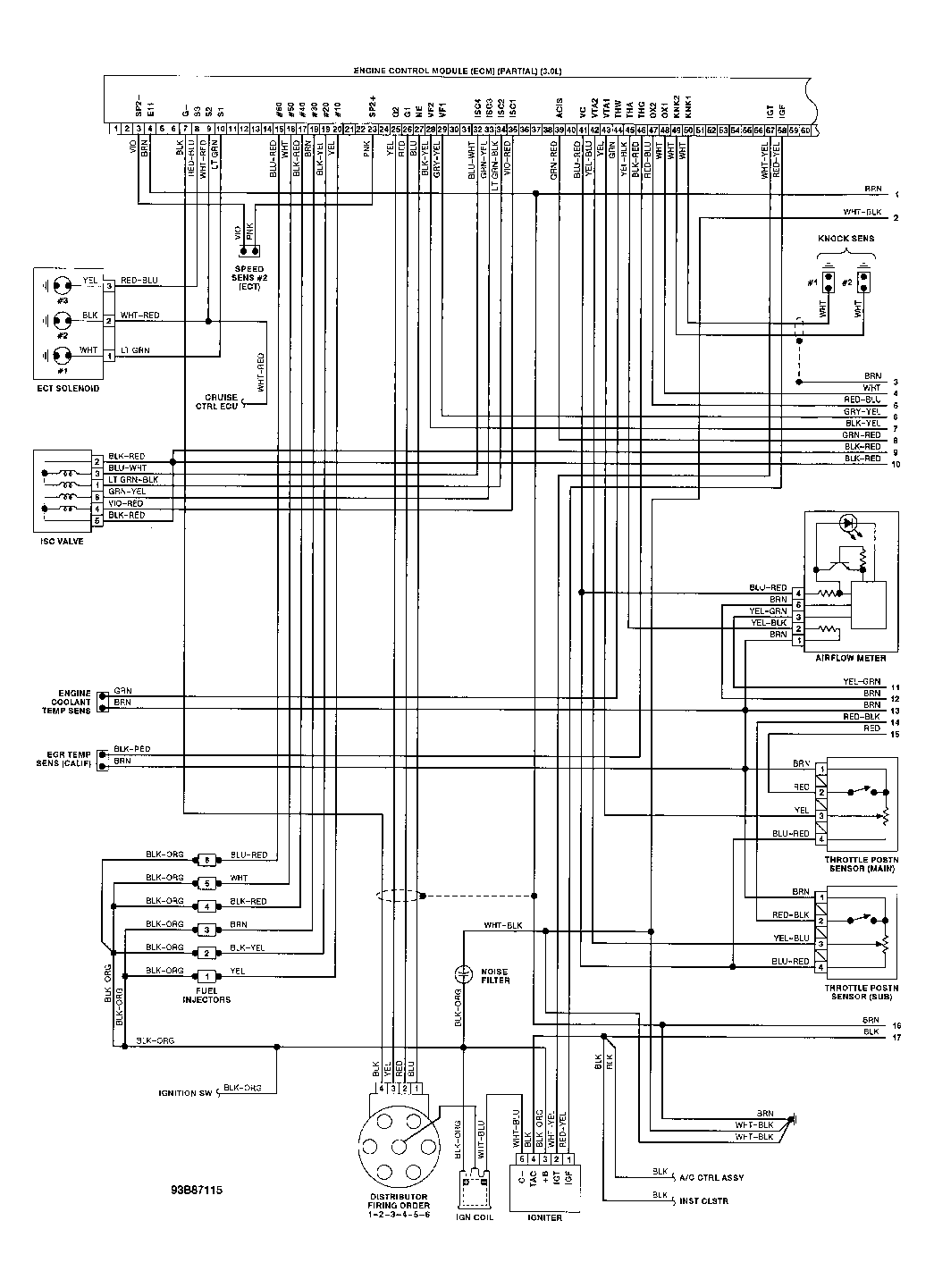

Fig 1: Wiring Diagram (SC300 3.0L - 1 Of 2)
G93B87115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

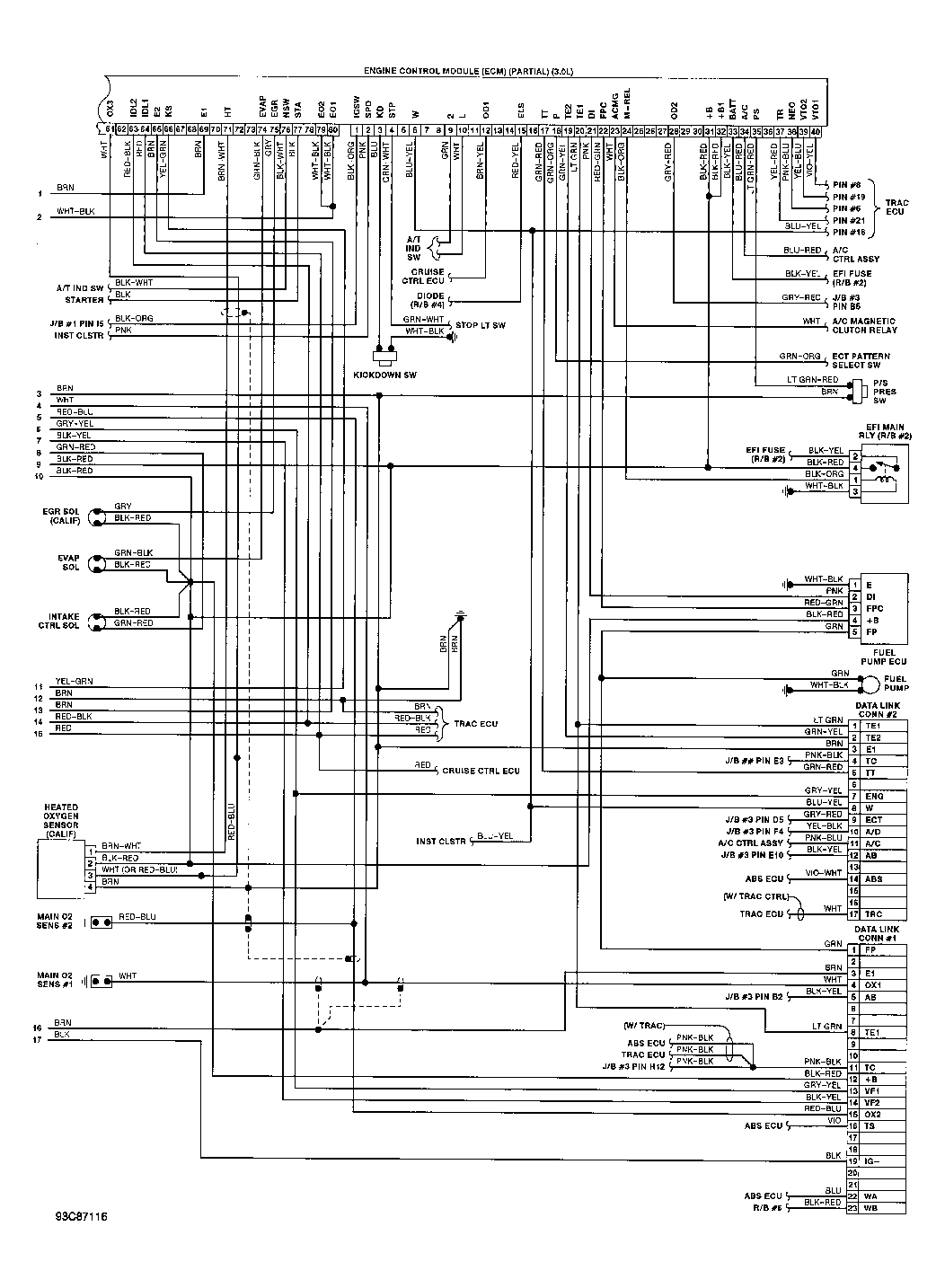

Fig 2: Wiring Diagram (SC300 3.0L - 2 Of 2)
G93C87116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
