Wiring Diagrams: LS400

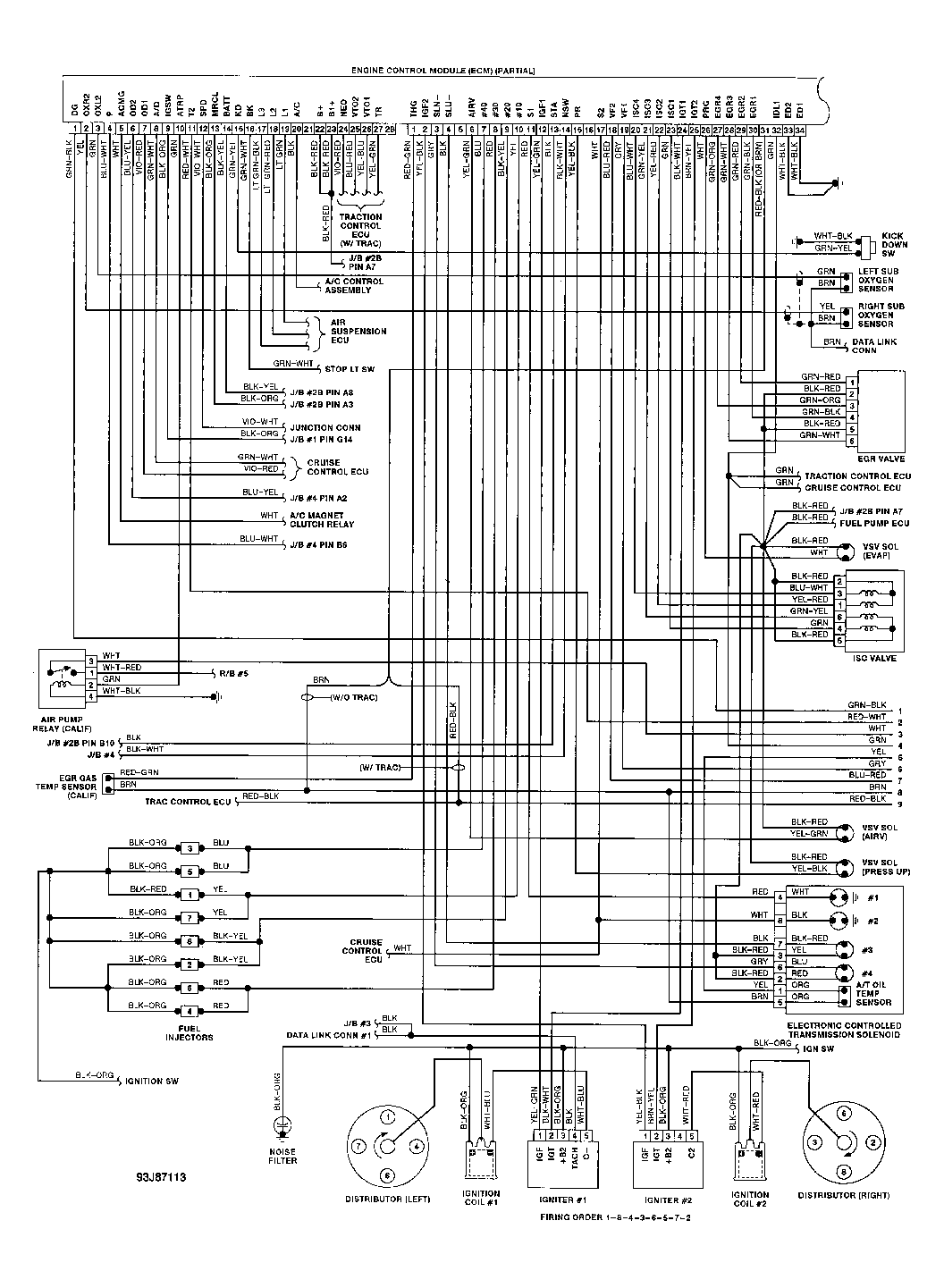

Fig 1: Wiring Diagram (LS400 4.0L - 1 Of 2)
G93J87113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

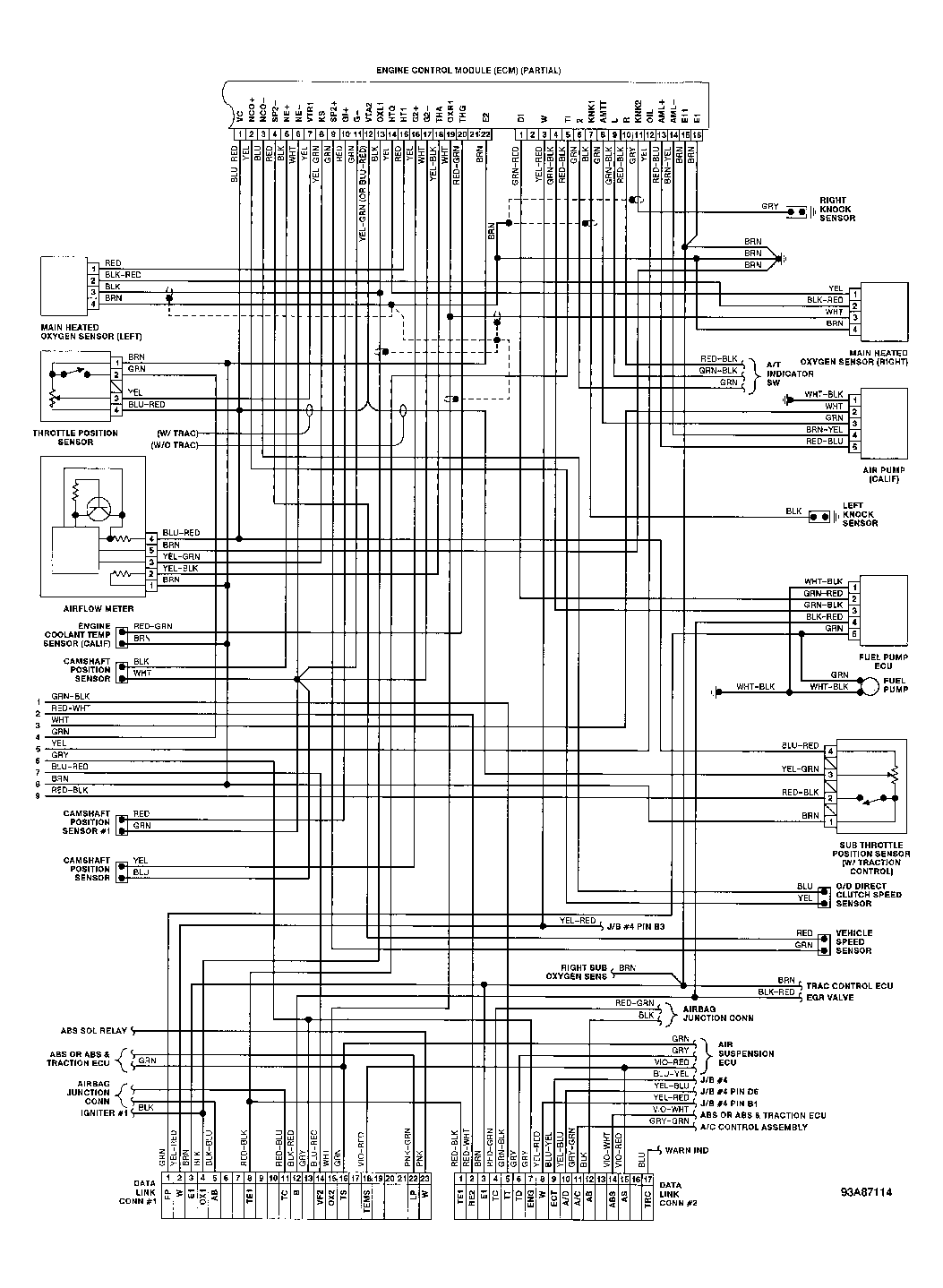

Fig 2: Wiring Diagram (LS400 4.0L - 2 Of 2)
G93A87114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
