DTC 49 - Engine Communication Circuit

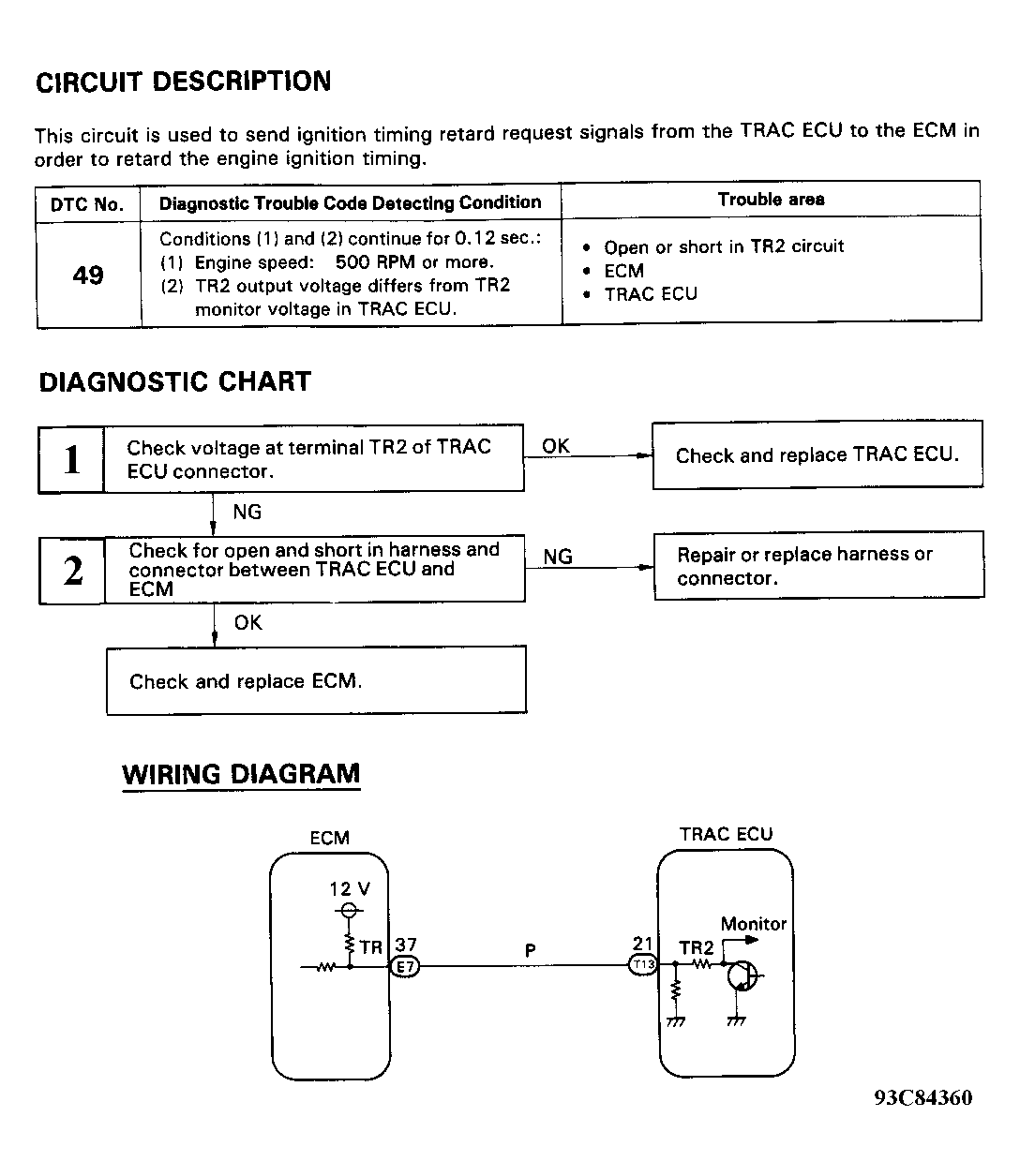

Fig 1: DTC 49 - Engine Communication Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

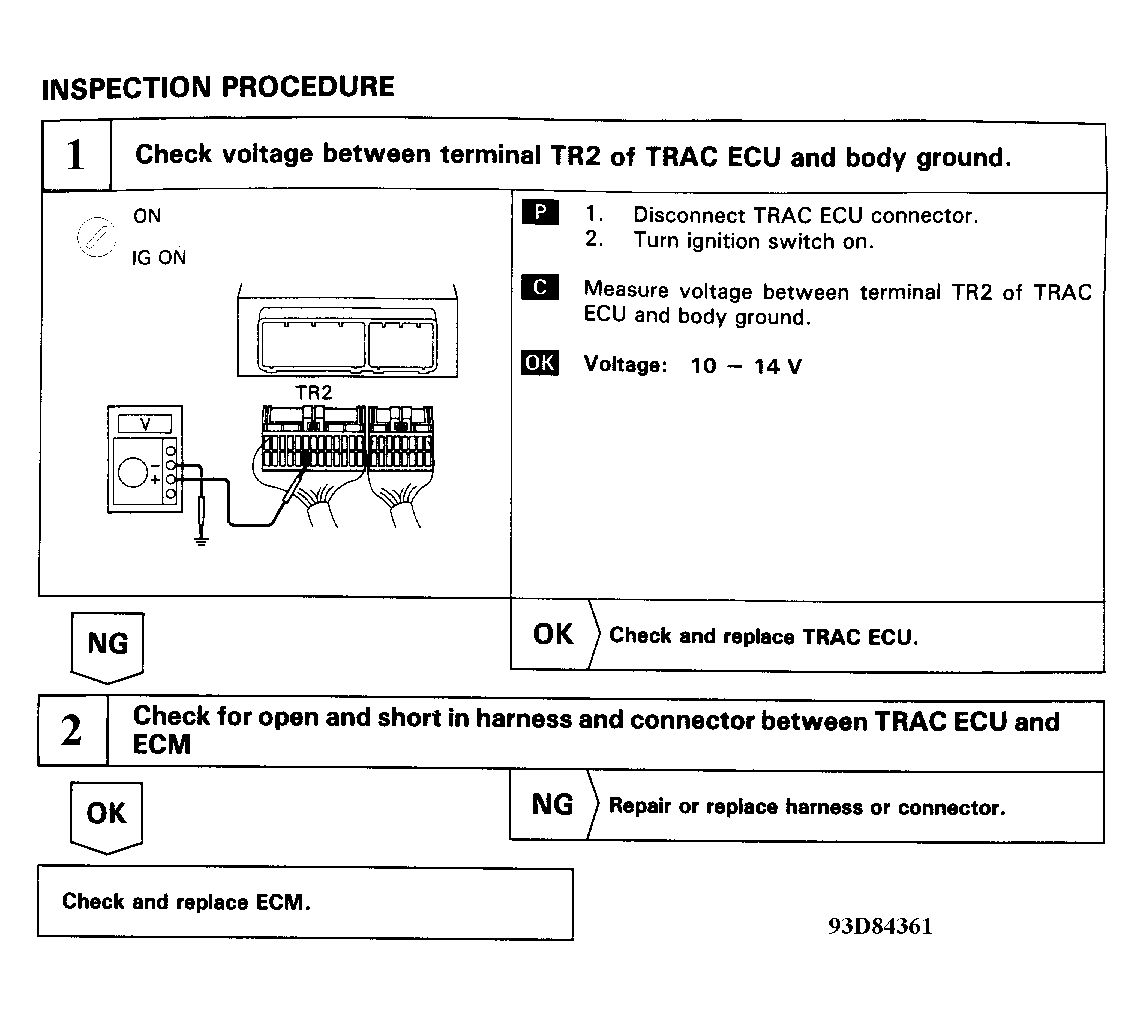

Fig 2: DTC 49 - Engine Communication Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
