Ts Terminal Circuit Description

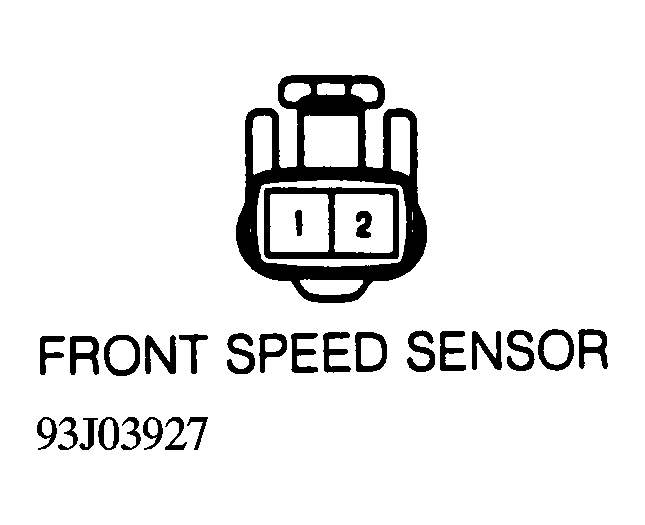

The sensor check circuit detects abnormalities in the speed sensor signal which can not be detected with the diagnostic code check. Connecting terminals Tc and E1 of the DCL1 in the engine compartment starts the check.

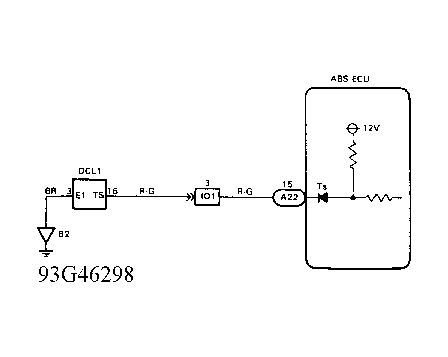

Fig 1: Ts Terminal Circuit Wiring Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

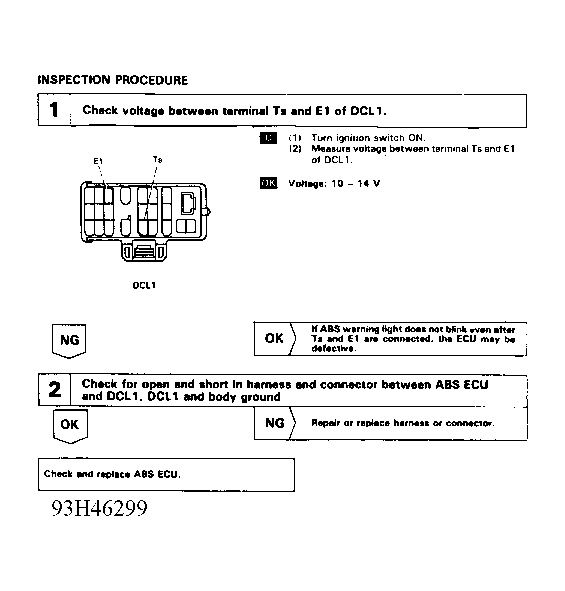

Fig 2: Voltage Check At Ts & E1 of Check Connector

TS TERMINAL CIRCUIT WIRE COLOR ABBREVIATION

Abbreviation	Wire Color
BR	Brown
LG-R	Light Green/Red
R-G	Red/Green
Y-B	Yellow/Black

NOTE: For diagnostic charts, see Figure through Figure .
