Codes 13 & 14
The ABS control (motor) relay supplies power to the ABS pump motor. If the accumulator pressure drops, the ECU switches the control (motor) relay ON and operated the ABS pump motor.
CODES 13 & 14 CIRCUIT DESCRIPTION
| Code | Diagnostic Code Detecting Condition | Trouble Area |
|---|---|---|
| 13 | Conditions [1] and [2] continued for 0.2 seconds or more: | ABS motor relay. Open or short in ABS motor relay circuit. ECU. |
| " | [1] ABS motor relay: ON | " |
| " | [2] Motor relay monitor terminal voltage: 0V | " |
| 14 | Conditions [1] and [2] continued for 2 seconds or more: | ABS motor relay +B short in ABS motor relay circuit. ECU. |
| " | [1] ABS motor relay: OFF | " |
| " | [2] Motor relay monitor terminal voltage: Battery voltage | " |
NOTE:
Fail Safe Function: If trouble occurs in the control (solenoid) relay circuit, the ECU cuts off current to the ABS control (solenoid) relay and prohibits ABS control.

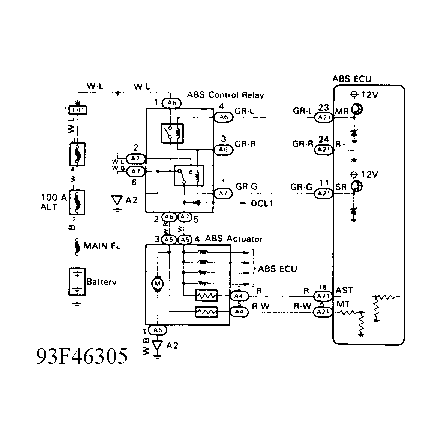

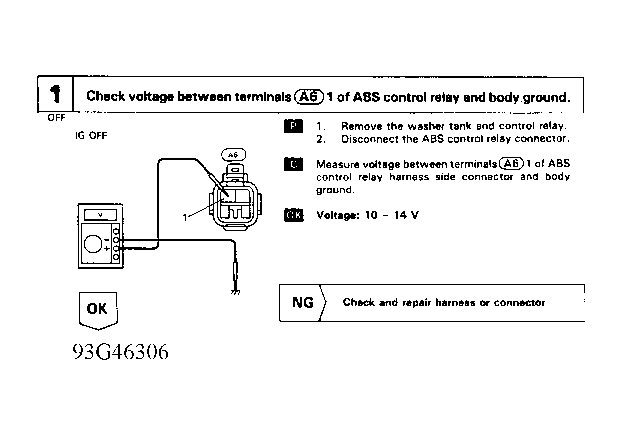

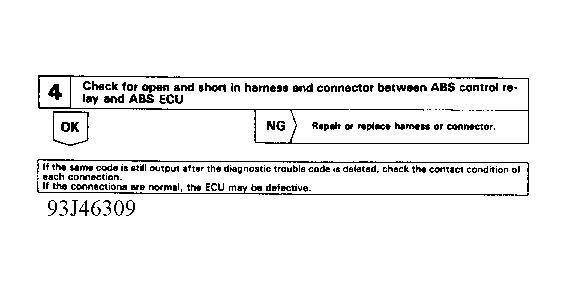

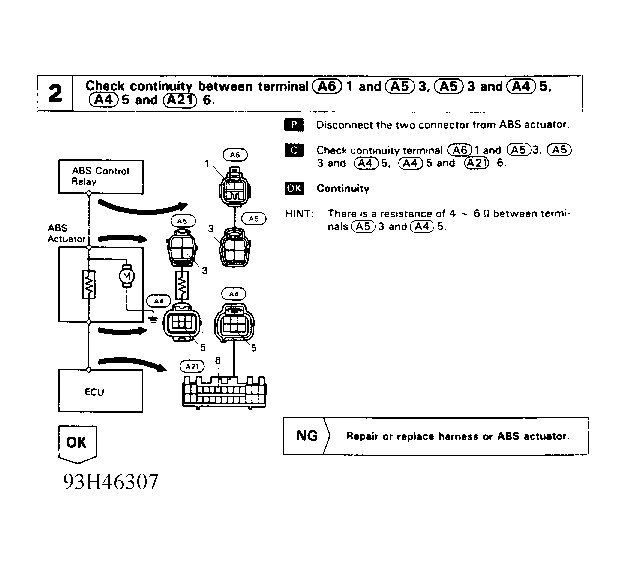

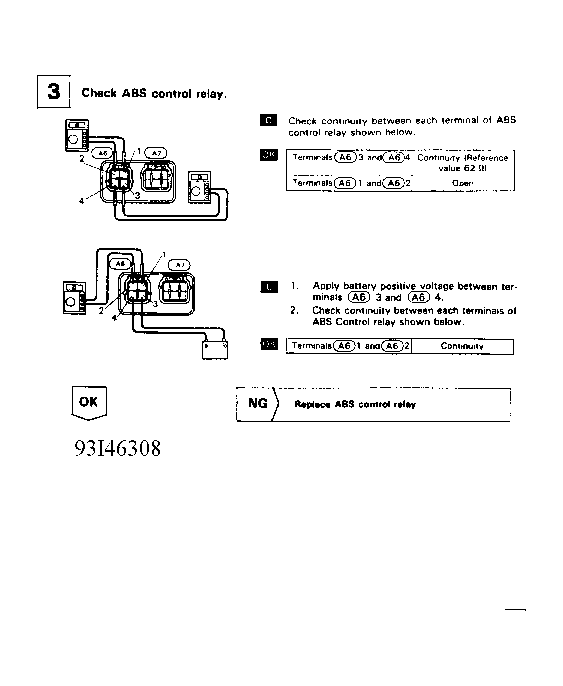

CODES 13 & 14 WIRE COLOR ABBREVIATIONS
| Abbreviation | Wire Color |
|---|---|
| B | Black |
| GR-G | Gray/Green |
| GR-L | Gray/Blue |
| GR-R | Gray/Red |
| LG-R | Light Green/Red |
| R | Red |
| R-G | Red/Green |
| R-W | Red/White |
| W | White |
| W-B | White/Black |
| W-L | White/Blue |
| W-R | White/Red |
| Y-B | Yellow/Black |
