Wiring Diagrams

For 1992 diagrams, see appropriate chassis wiring diagram in the WIRING DIAGRAMS section.

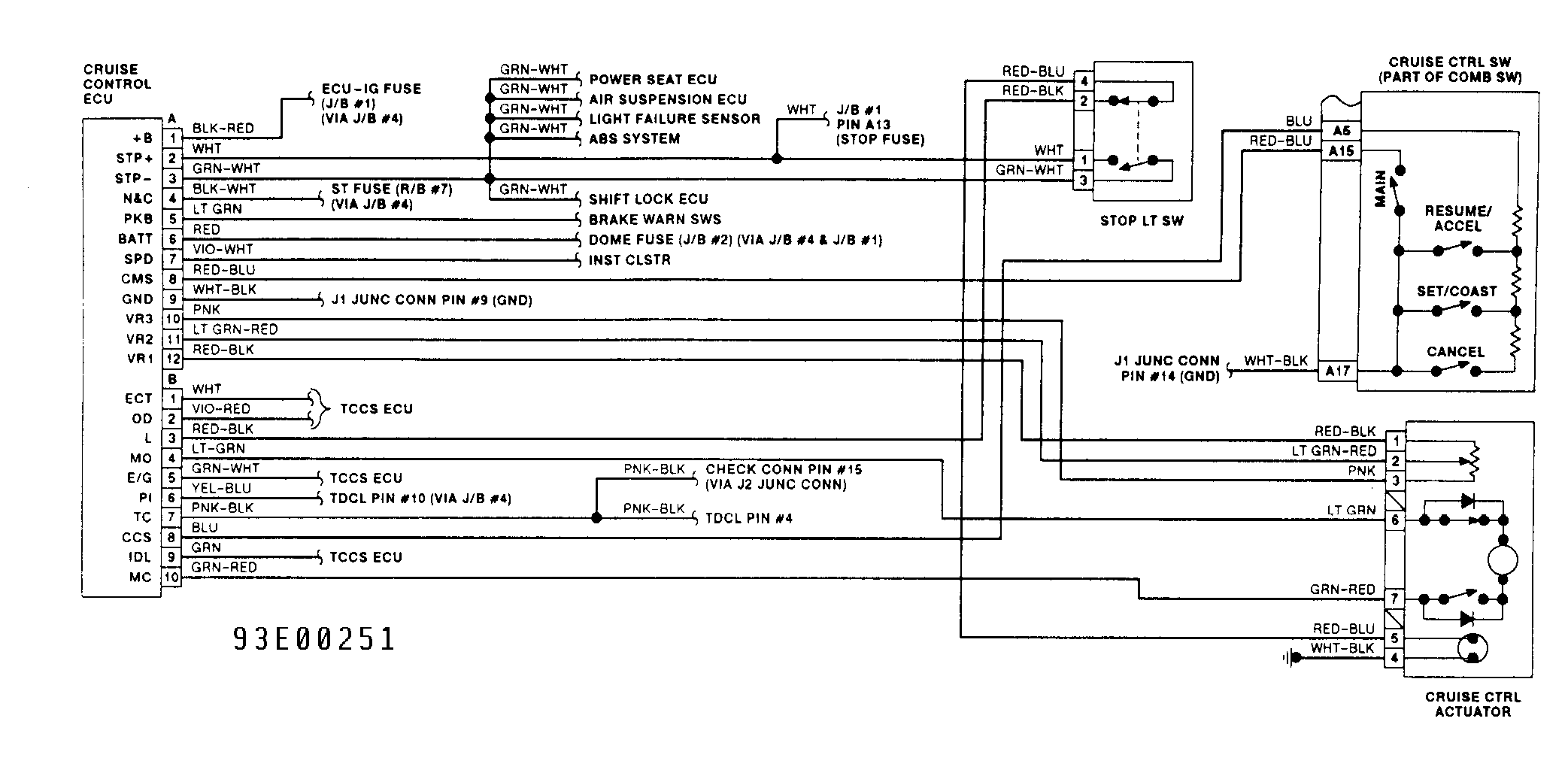

Fig 1: Cruise Control System Wiring Diagram (1991 LS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
