Wiring Diagrams

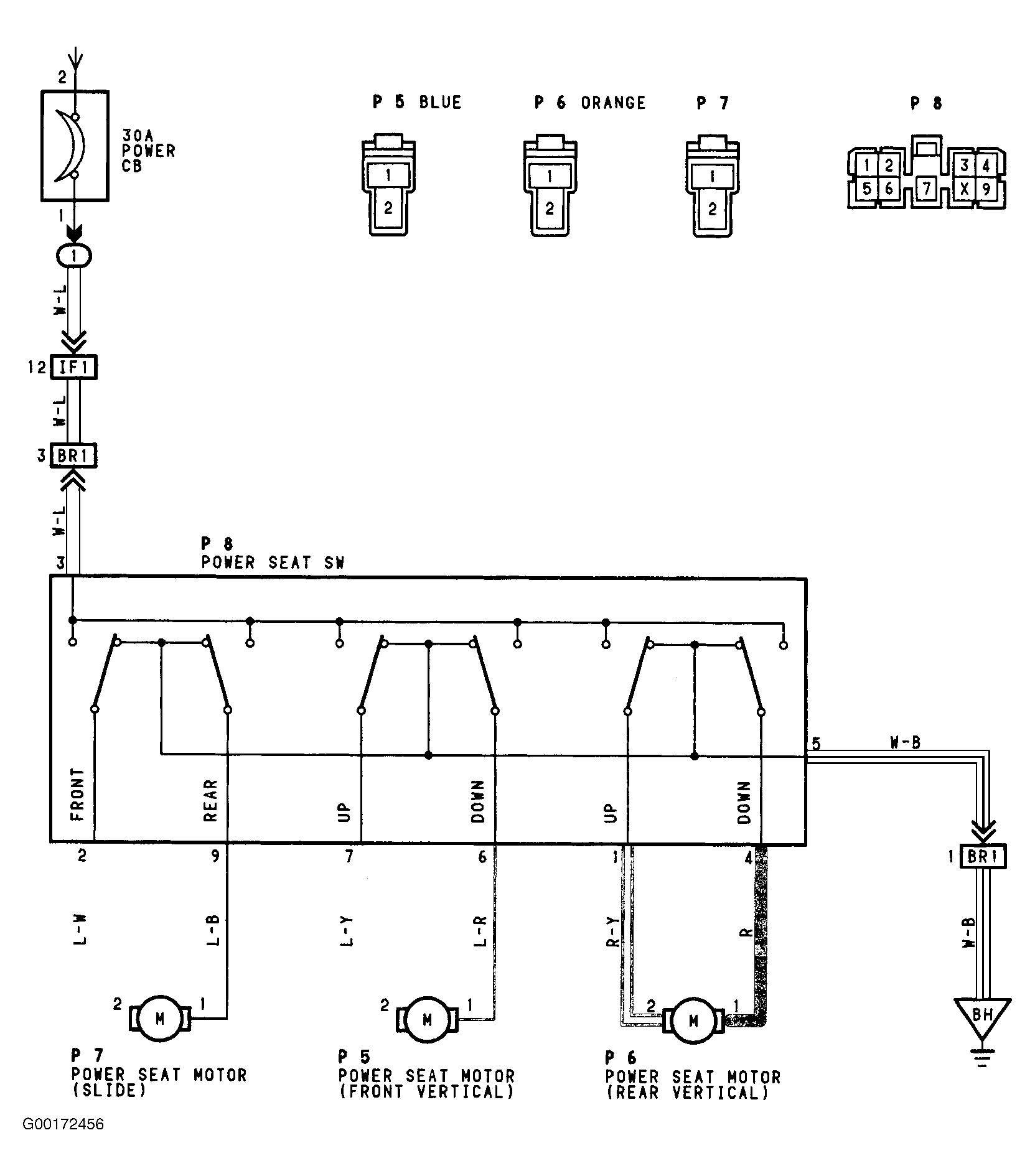

Fig 1: Power Seat Wiring Diagram

G00172456

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
