Door Trim Panel (Front): Installation

Keep the connector terminal protruding out from the trim. Install door trim. Insert the upper edge of the trim from above, tap the trim by hand and fix it in place with the clips. Install the 7 screws and the hook. Connect the connector and install the courtesy light in the trim. See Fig 1.

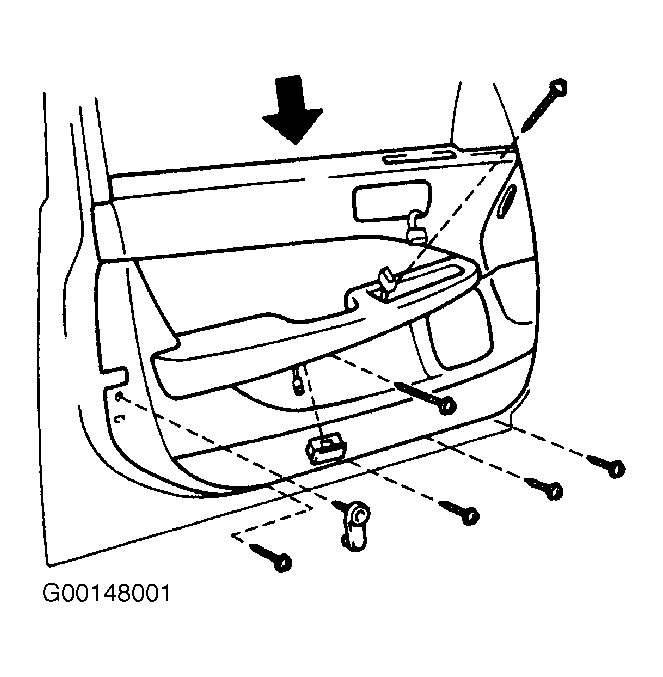

Fig 1: Installing Front Door Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install door inside handle bezel. With the door handle in open position, insert the bezel toward the front. Connect the connector. Push in the bezel to install it. See Fig 2.

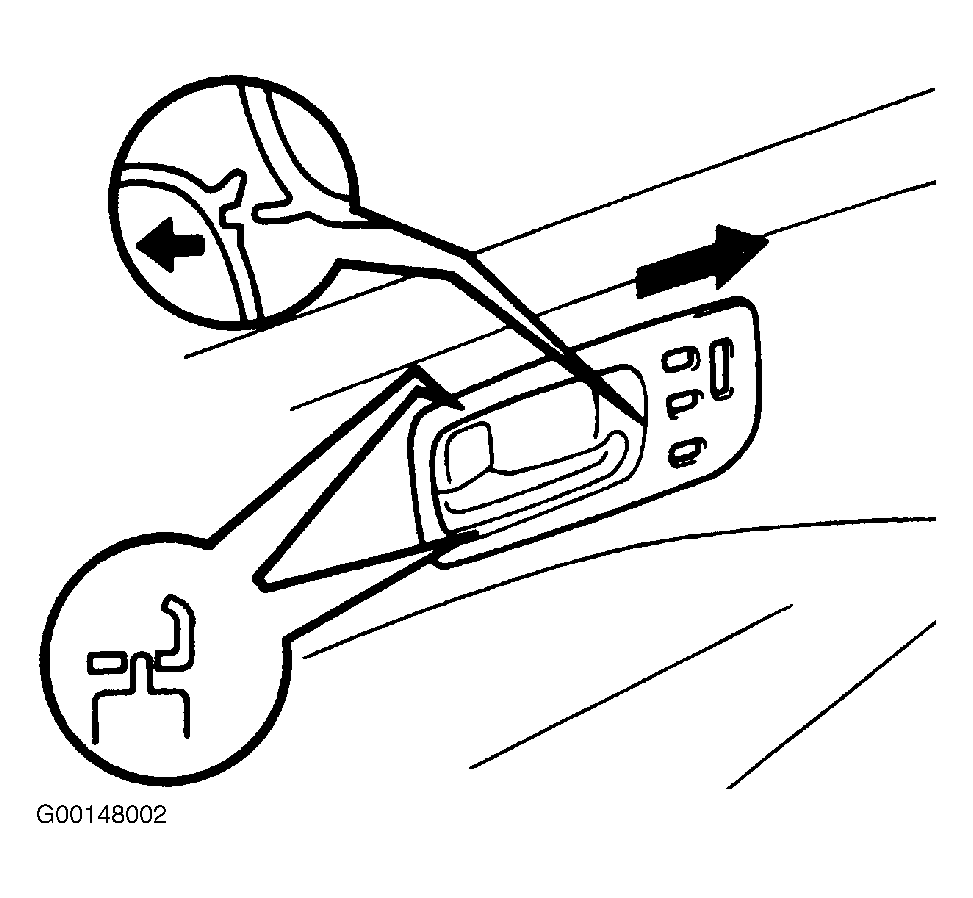

Fig 2: Installing Front Door Bezel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install armrest base panel. Connect the connector. Slide the panel forward and tap the panel to install it. See Fig 3.

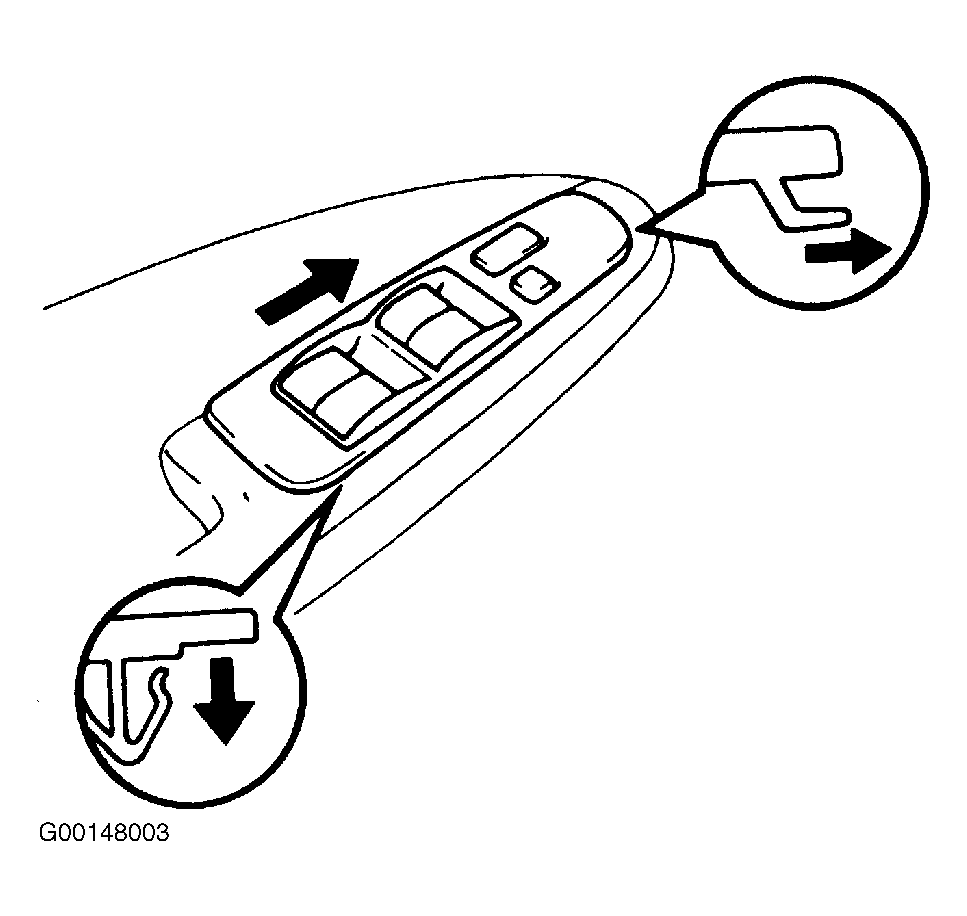

Fig 3: Installing Front Door Armrest Base Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install upper bracket garnish. Align the clips with the panel holes, then push in the garnish to install it.
