Connector Identification

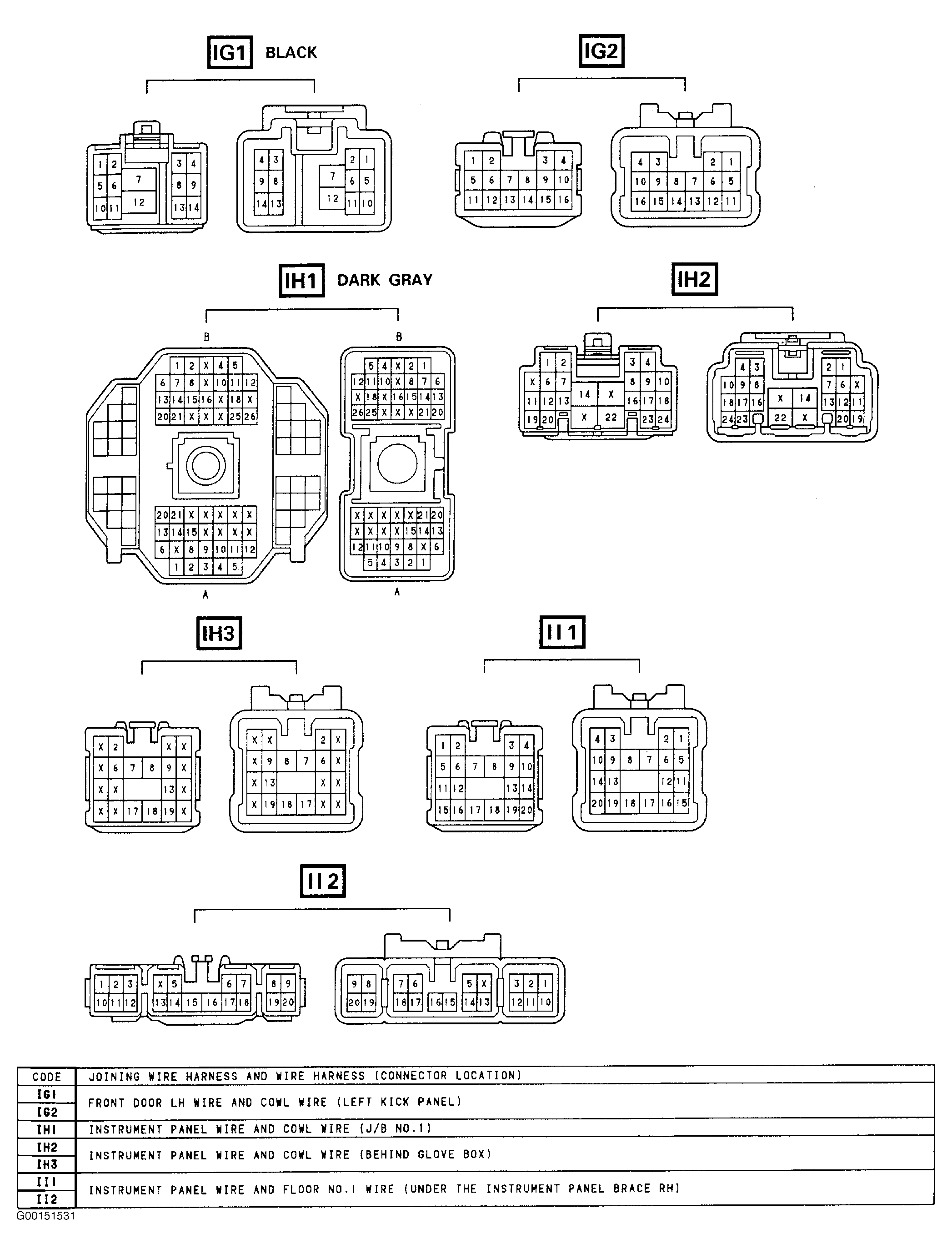

Fig 1: Identifying Joining Wire Harness & Wire Harness Connectors (1 Of 3)
G00151531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

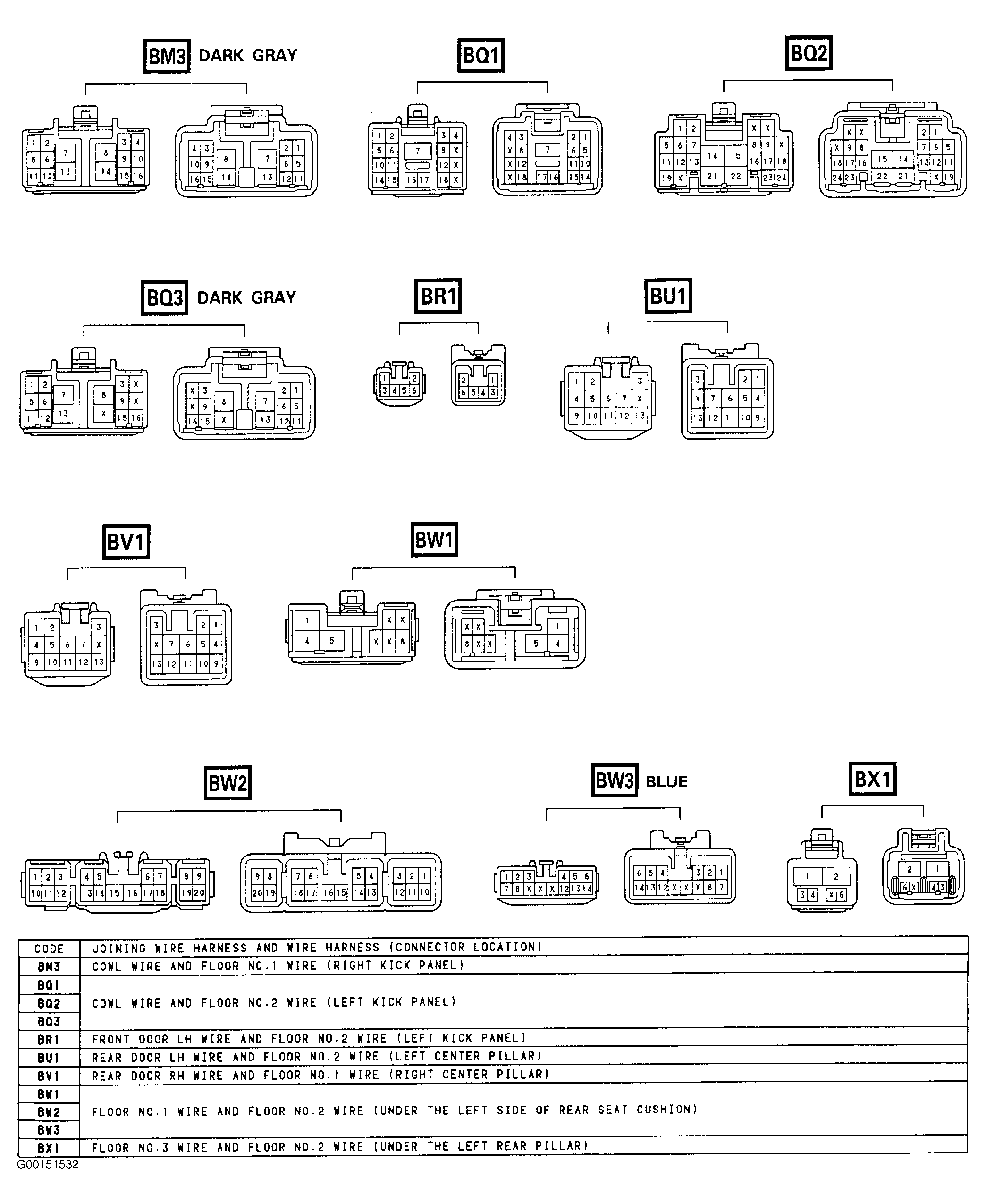

Fig 2: Identifying Joining Wire Harness & Wire Harness Connectors (2 Of 3)
G00151532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

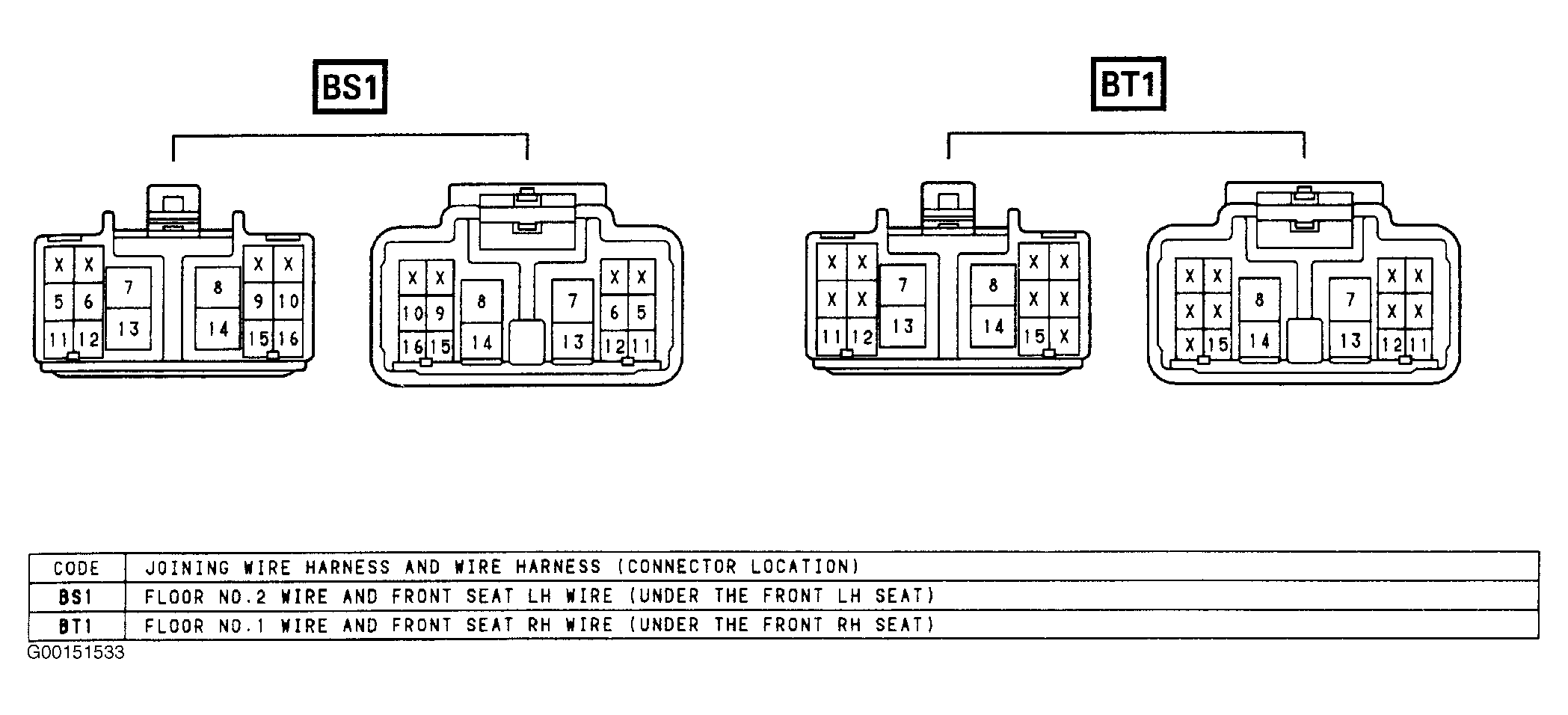

Fig 3: Identifying Joining Wire Harness & Wire Harness Connectors (3 Of 3)
G00151533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

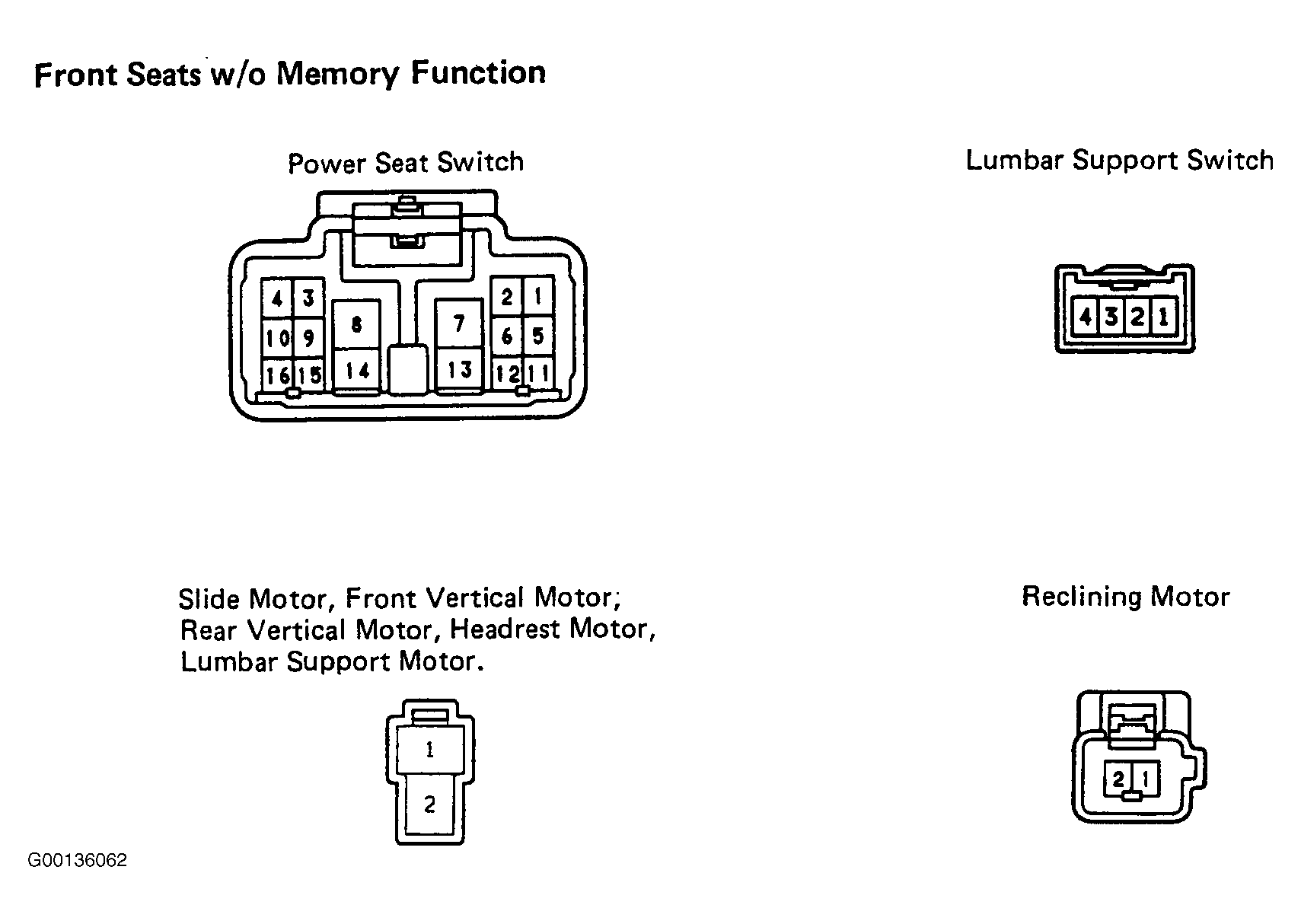

Fig 4: Identifying Front Seats Connectors (Without Memory)
G00136062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

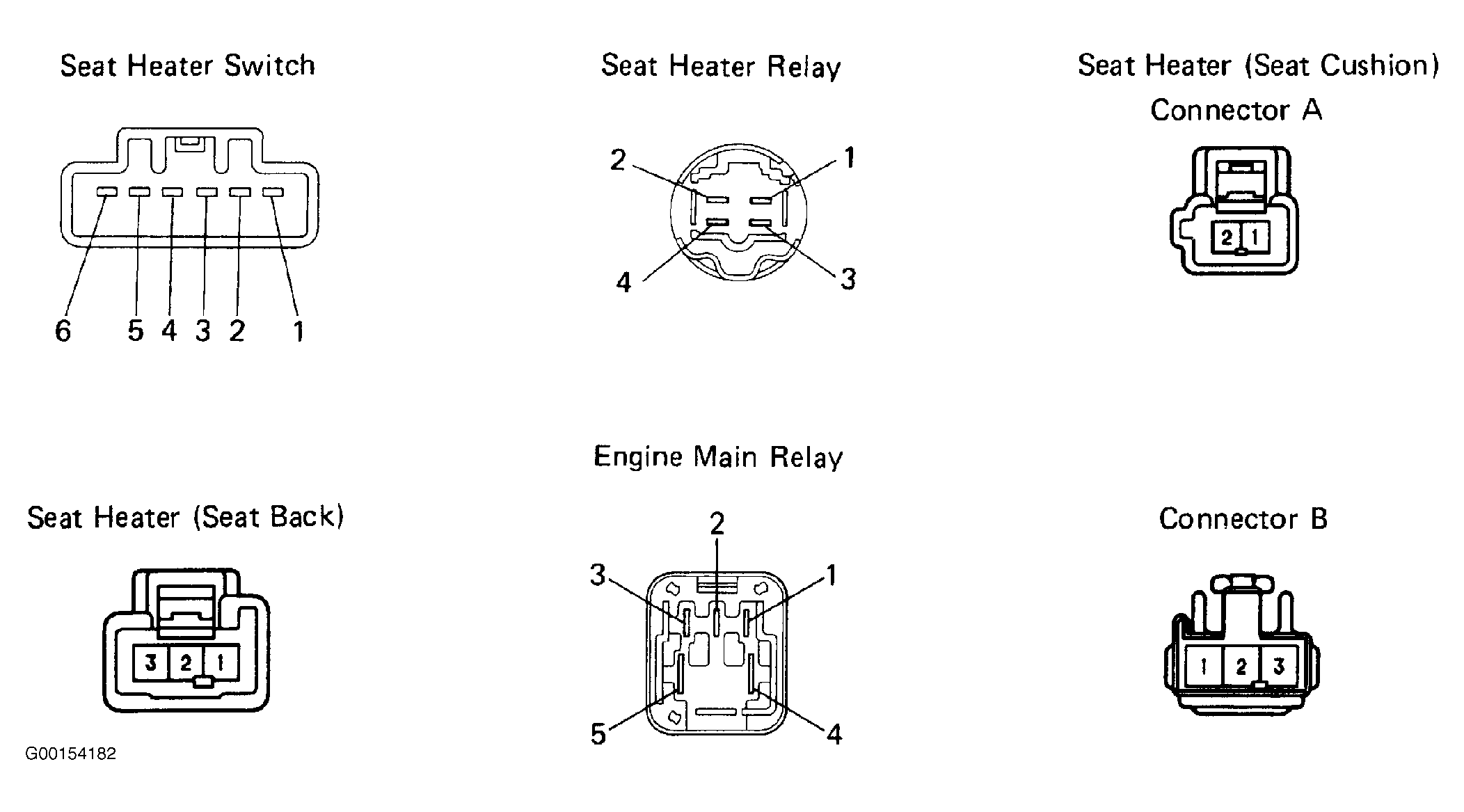

Fig 5: Identifying Seat Heater Connectors
G00154182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
