Engine Main Relay: Continuity

Inspect the continuity between terminals as shown in Fig 1. If continuity is not as specified, replace the relay.

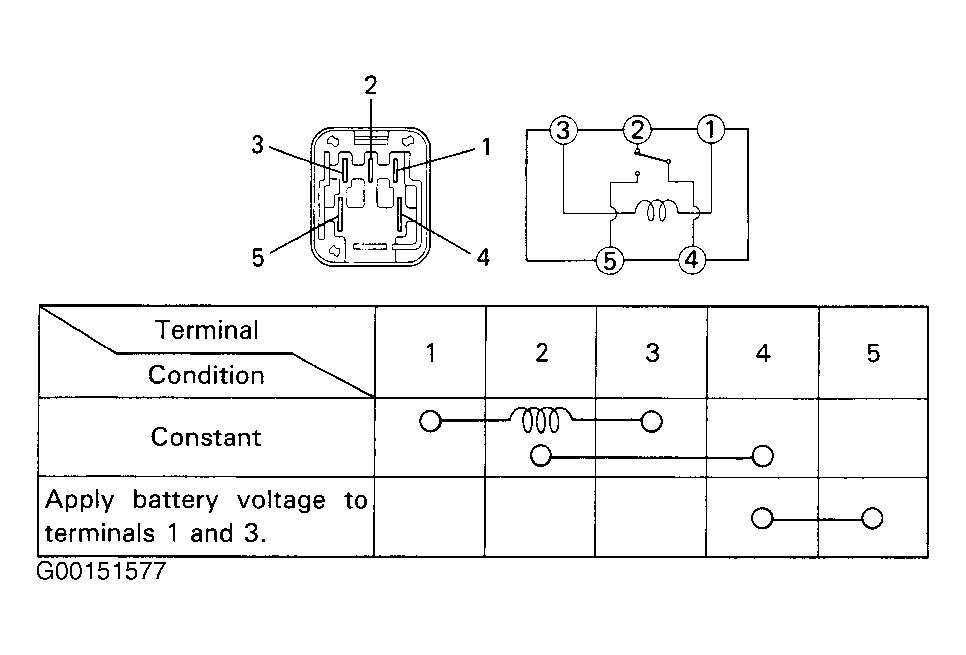

Fig 1: Testing Engine Main Relay Continuity
G00151577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
