Connector Views

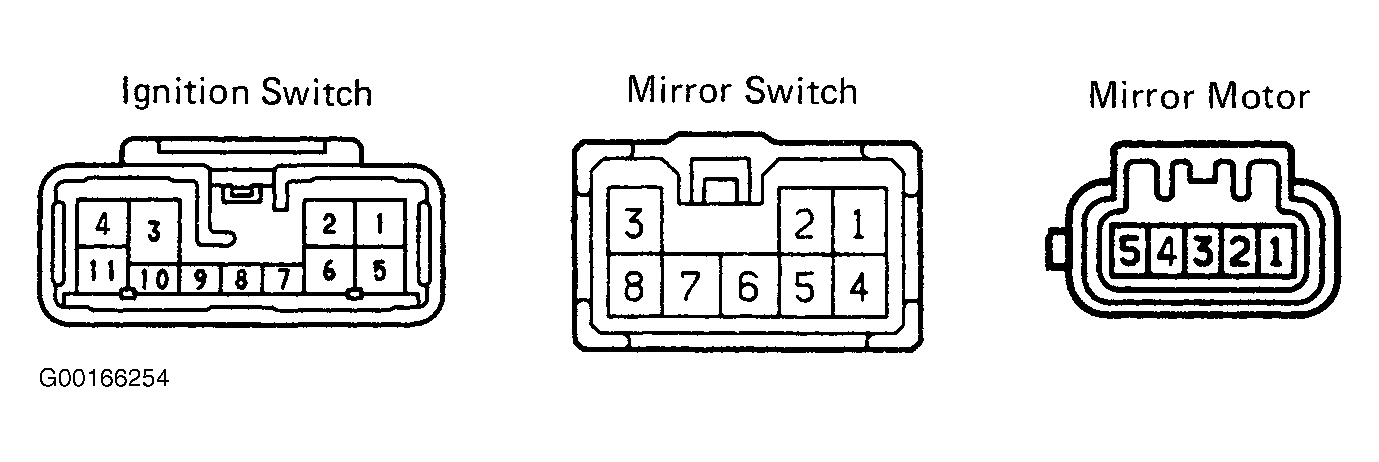

Fig 1: Identifying Connectors For Mirror Without Memory System
G00166254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

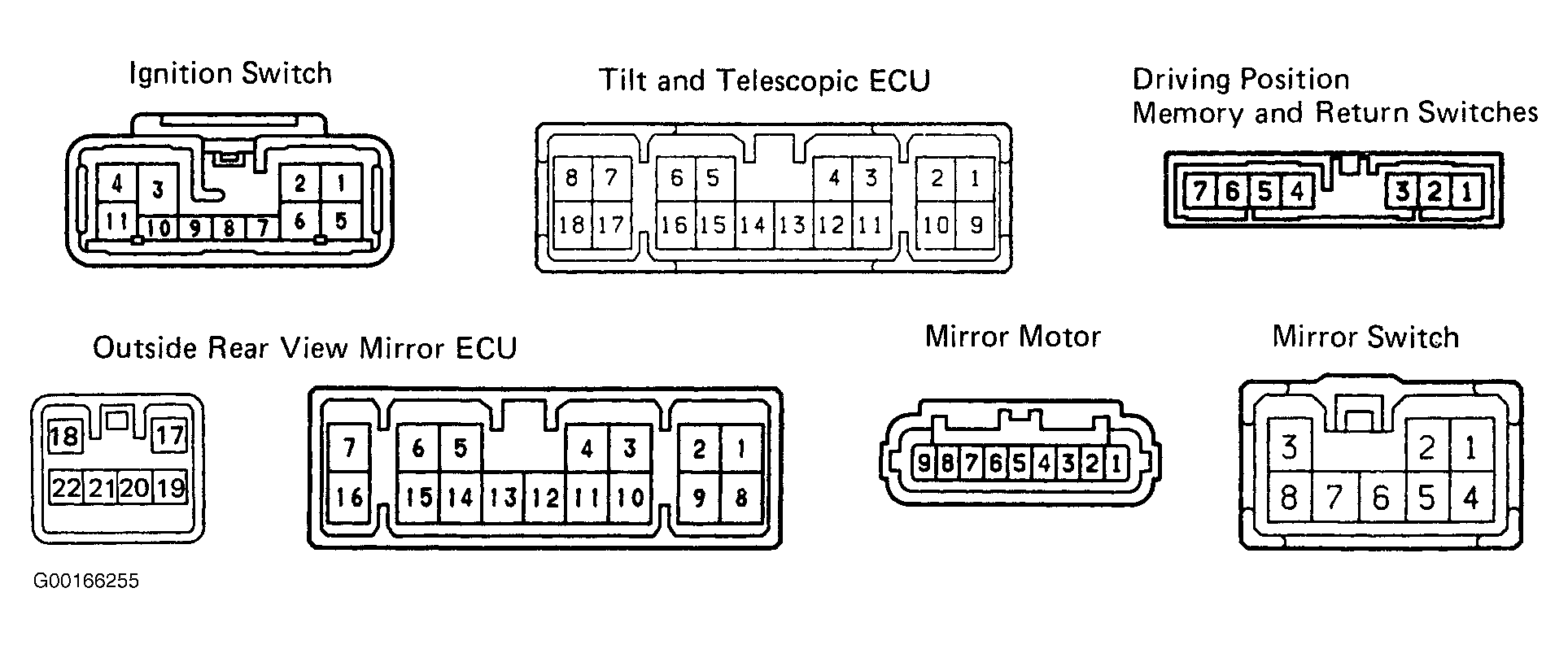

Fig 2: Identifying Connectors For Mirrors With Memory System
G00166255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
