Defogger Relay Check

  1. Remove defogger relay from junction block No. 1. Ensure continuity exists between relay terminals No. 3 and No. 4. See Fig 1. Continuity should not exist between relay terminals No. 1 and No. 2.
  2. Apply battery voltage to relay terminal No. 3, and ground relay terminal No. 4. Ensure continuity now exists between relay terminals No. 1 and No. 2. If continuity of relay is not as described, replace defogger relay.

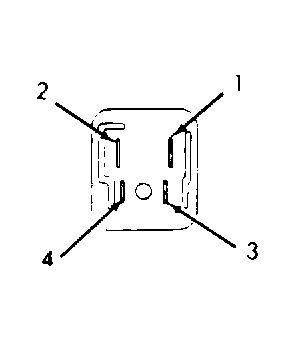

Fig 1: Identifying Defogger Relay Terminals
G91J04700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
