Ground points

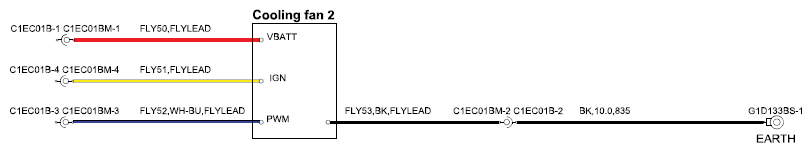

Fig 1: Cooling Fan 2 Circuit Diagram (Ground Points)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Ground points are identified with an eyelet symbol and a connector number, except where components are grounded through its fixings, when only the eyelet is shown.

The cup and ball symbol represents the male and female halves of the connector. Most connectors plug directly into a component but some are wired directly to the component using a 'flylead' as with C1EC01BM above.
