Description And Operation

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

VIN Number

The VIN number will be found in three locations:

Stamped on the front of the right front suspension turret.
At the bottom of the windshield glass on the left side of the vehicle and visible from the outside.
UK, Europe and ROW VIN and Tire Data Label attached to the front of the right B-pillar.
NAS and Canada - VIN, Certification and Tire Data Label attached to the front of the left B-pillar.

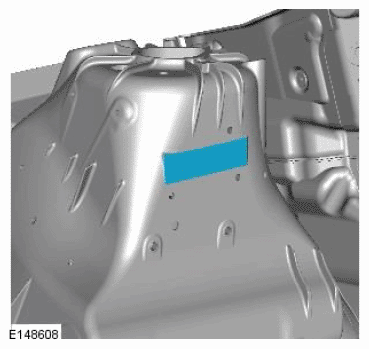

Right Front Suspension Turret VIN

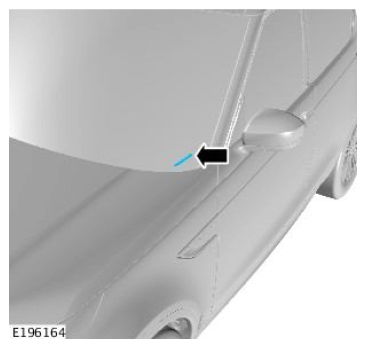

Windscreen VIN

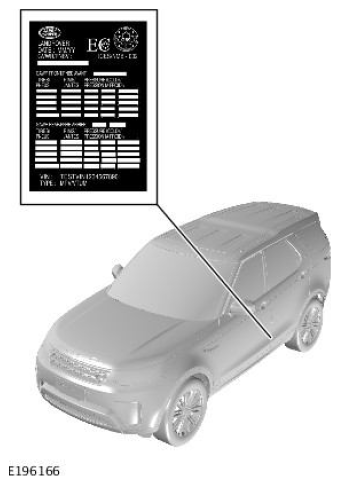

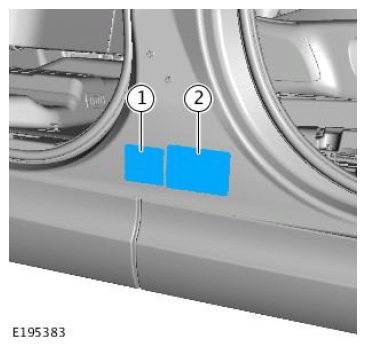

VIN and Tire Data label - UK, Europe and ROW

VIN plate
Tire Data Label

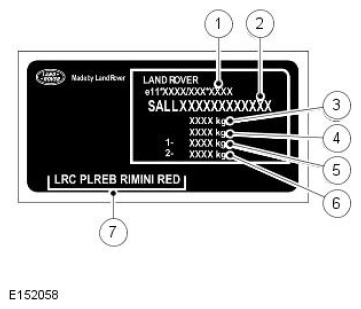

VIN label - UK, Europe and ROW

The VIN plate contains the following information:

Type/Approval Number - If shown
VIN Number
Gross Vehicle Weight
Gross Train Weight
Front Axle Weight
Rear Axle Weight
Colour code/group

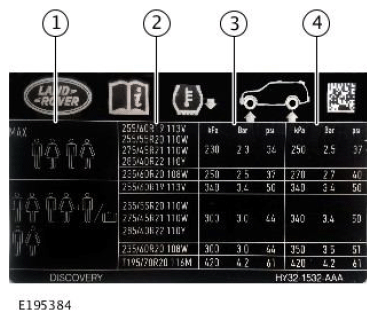

Tire Data label - UK, Europe and ROW

The Tire Data Label contains the following information:

Vehicle load
Tire size and rating
Tire pressure front
Tire pressure rear

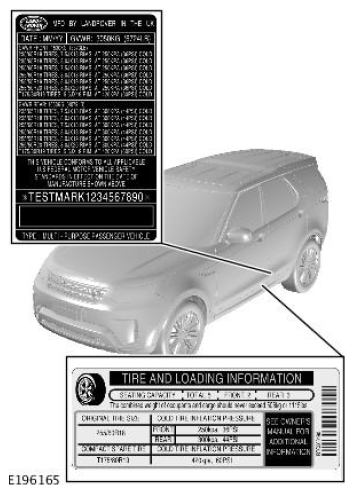

VIN, Certification and Tire Data Label - NAS only

The Certification Label contains the following information:

VIN Number
Bar code identification

The Tire Data Label contains the following information:

Tire pressure and loading specification

VIN and Tire Data Label - Canada only

The VIN/Tire Data Label contains the following information:

VIN Number
Vehicle Type
Tire pressure and loading specification

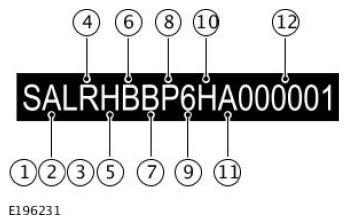

VIN number - UK, Europe and ROW

VIN POSITION	CHARACTER	IDENTIFIES
1 - 3 - World identifier	SAL	Jaguar Land Rover Ltd. (Land Rover)
4 - Vehicle type	R	Land Rover Discovery
5 - Class	A	Standard
6 - Body style	2	5 Door station wagon
7 - Transmission and steering	A	RHD Automatic
7 - Transmission and steering	B	LHD Automatic
8 - Engine	K	306DT - V6 3.0 Diesel
8 - Engine	N	AJ200D - 2.0L Diesel
8 - Engine	V	306PS - V6 3.0 SC Petrol
9 - Check digit	*	Derived by calculation
10 - Model year	H	2017
11 - Plant	A	Solihull
12 - Serial number	0 - 9	Unique six digit serial number

VIN number - NAS and Canada

VIN POSITION

CHARACTER

IDENTIFIES

1 - 3 - World identifier

SAL

Jaguar Land Rover Ltd. (Land Rover)

4 - Model range

Land Rover Discovery

5 - Class

S ⁽¹⁾

5 - Class

SE ⁽¹⁾

5 - Class

HSE ⁽¹⁾

5 - Class

HSE Luxury ⁽¹⁾

5 - Class

NAS TL4+ ⁽¹⁾

5 - Class

First Edition ⁽¹⁾

6 - Body style

5 Door Station Wagon

7 - Transmission and steering

LHD Automatic

8 - Engine

316PS - V6 3.0 SC Petrol

9 - Check digit

⁽¹⁾

Derived by calculation

10 - Model year

2017

11 - Plant

Solihull

12 - Serial number

0 - 9

Unique six digit serial number

NOTE:

⁽¹⁾	Manual seat belts with driver and passenger front and side air bags (1st and 2nd row).

Unit/Assembly Serial Number Locations

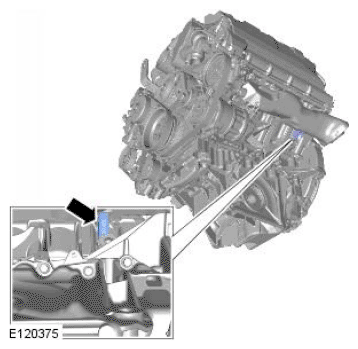

2.0L Diesel Engine Serial Number

The 2.0L Diesel Engine Serial Number is stamped on the left side of the engine block.

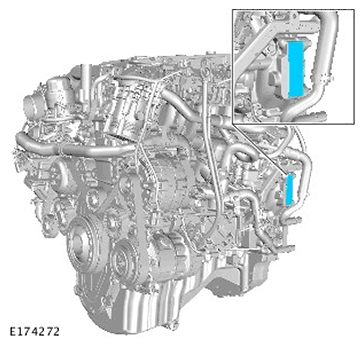

3.0L V6 Diesel Engine Serial Number

The 3.0L V6 Diesel Engine Serial Number is stamped on the left side of the cylinder head.

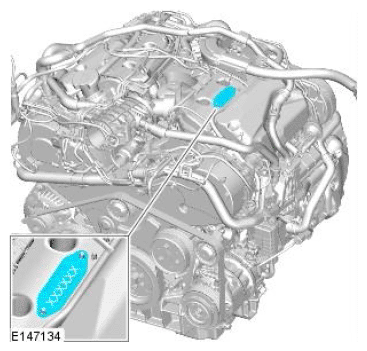

3.0L SC V6 Petrol Engine Serial Number

The 3.0L SC V6 Petrol Engine Serial Number is stamped on the left side of the cylinder block.

Automatic Transmission Serial Number

The transmission serial number is on a plate attached to the left side of the transmission casing.
