Bearing Inspection

WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

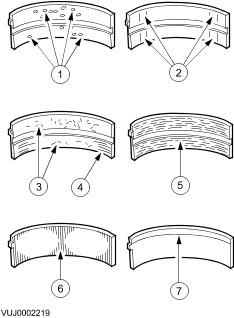

GJ0002944
  1. Inspect bearings for the following defects.
    1. Cratering - fatigue failure
    2. Spot polishing - incorrect seating.
    3. Imbedded dirt engine oil.
    4. Scratching - dirty engine oil.
    5. Base exposed - poor lubrication.
    6. Both edges worn - journal damaged.
    7. One edge worn - journal tapered or bearing not seated.
