Transceiver Module: Removal

WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH lower rear quarter trim panel. For additional information, refer to: Rear Quarter Trim Panel
    2. CAUTION: Cover fibre optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.

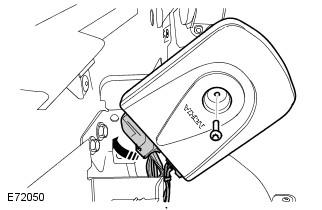

  2. Remove the cellular phone module.
    • Remove the Torx bolt.
    • Disconnect the 2 electrical connectors.
    G00527409
