Status Indication
WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

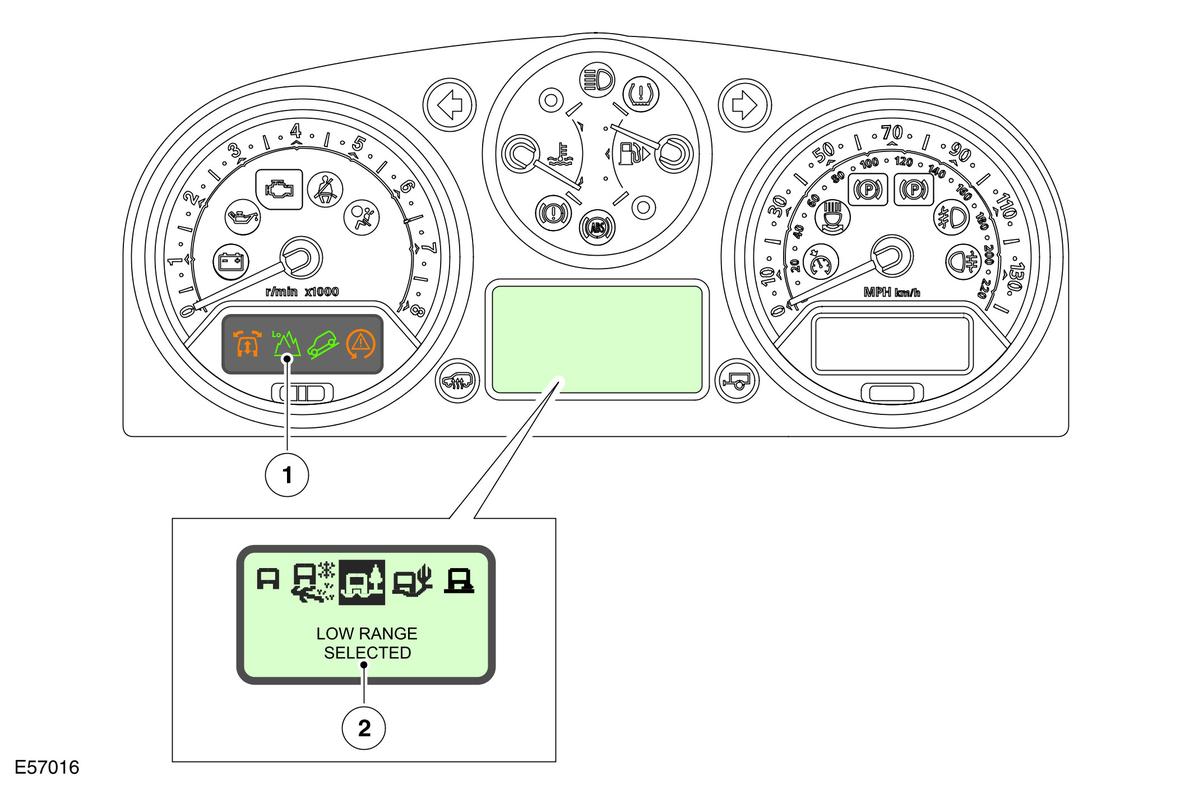

| Item Number | Description |
|---|---|
| 1 | Low-range status indicator |
| 2 | Message center text |
The low range status indicator will take the form of a mountain symbol and has the following logic:
- Lamp on = low range
- Lamp off = high range
- Lamp flashing = range change in progress/range undefined/range fault.
There will also be a message displayed in the message center, which will inform the driver of any faults with the transfer box.
The following table shows the messages that can be displayed in the message center relating to the transfer box:
| Message | Description | Chime |
|---|---|---|
| 'LOW RANGE ENGAGED' | Transfer case has engaged low range after a range change request | Single |
| 'HIGH RANGE ENGAGED' | Transfer case has engaged high range after a range change request | Single |
| 'SPEED TOO HIGH FOR RANGE CHANGE' | Range change request when vehicle speed too high | Single |
| 'SELECT NEUTRAL FOR RANGE CHANGE' | Range change request when lever not in neutral | Single |
| 'PARK LOCK FAILURE APPLY HANDBRAKE' (PARKBRAKE US/CAN) | This alerts the driver that the transmission park lock function is inoperative due to transfer box out of high or low range. Transfer box control module has stopped transmitting on the CAN bus during a range change or while in neutral mode and as a result the transmission park lock function is inoperative |
One per second for three seconds |
| 'TRANSMISSION RANGE CHANGE INOPERATIVE' | Transfer box has detected a fault inhibiting a new range change. Control unit has shut down due to thermal overload | Single |
| 'TRANSMISSION OVER HEAT SLOW DOWN' | Centre differential temperature is approaching the over heated threshold | Single |
| 'TRANSMISSION FAULT - TRACTION REDUCED' | Centre differential has failed - operating as an open differential | Single |
| 'TRANSMISSION FAULT - TRACTION REDUCED' | Transfer box control module has stopped transmitting on the CAN bus and defaults to open center differential | Single |
