Valve Body: Removal

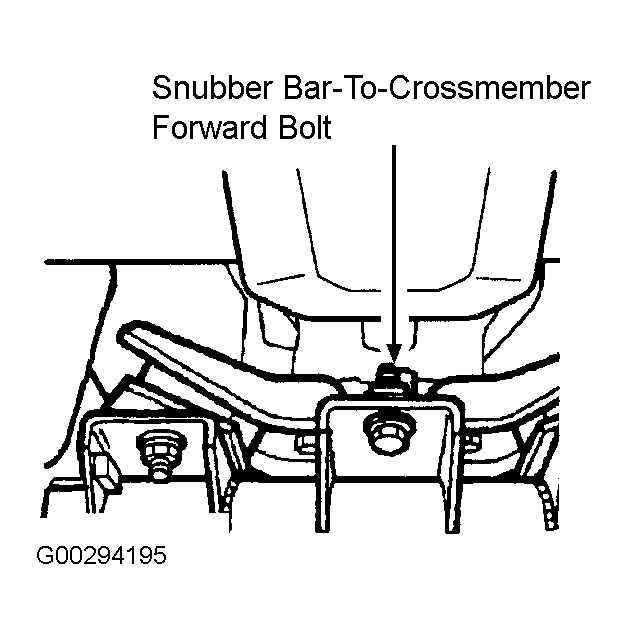

- Position vehicle on a 4 post lift. Loosen forward bolt securing snubber bar to cross member. See Fig 1

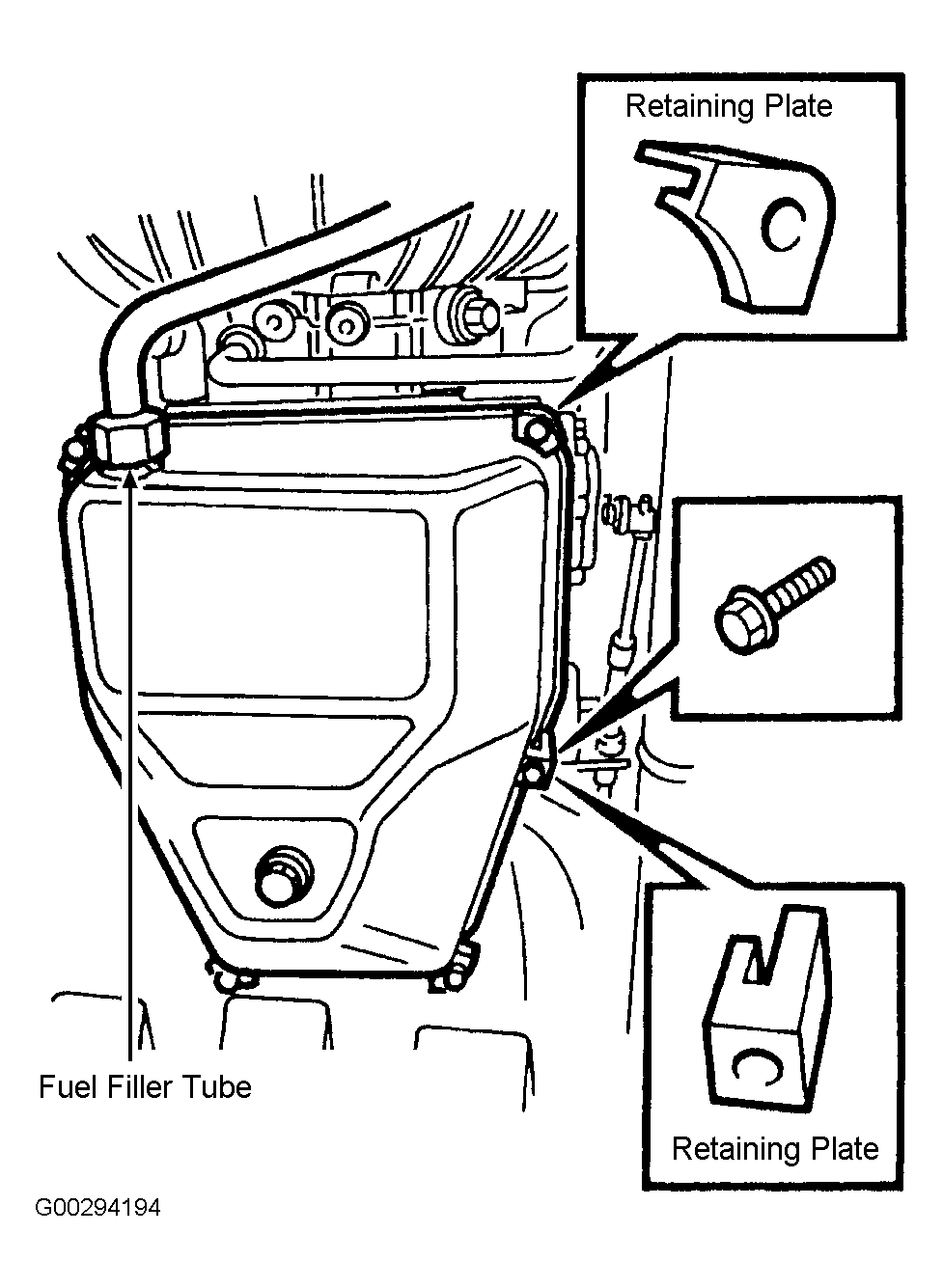

. Remove 6 bolts securing fluid pan to transmission. See Fig 2

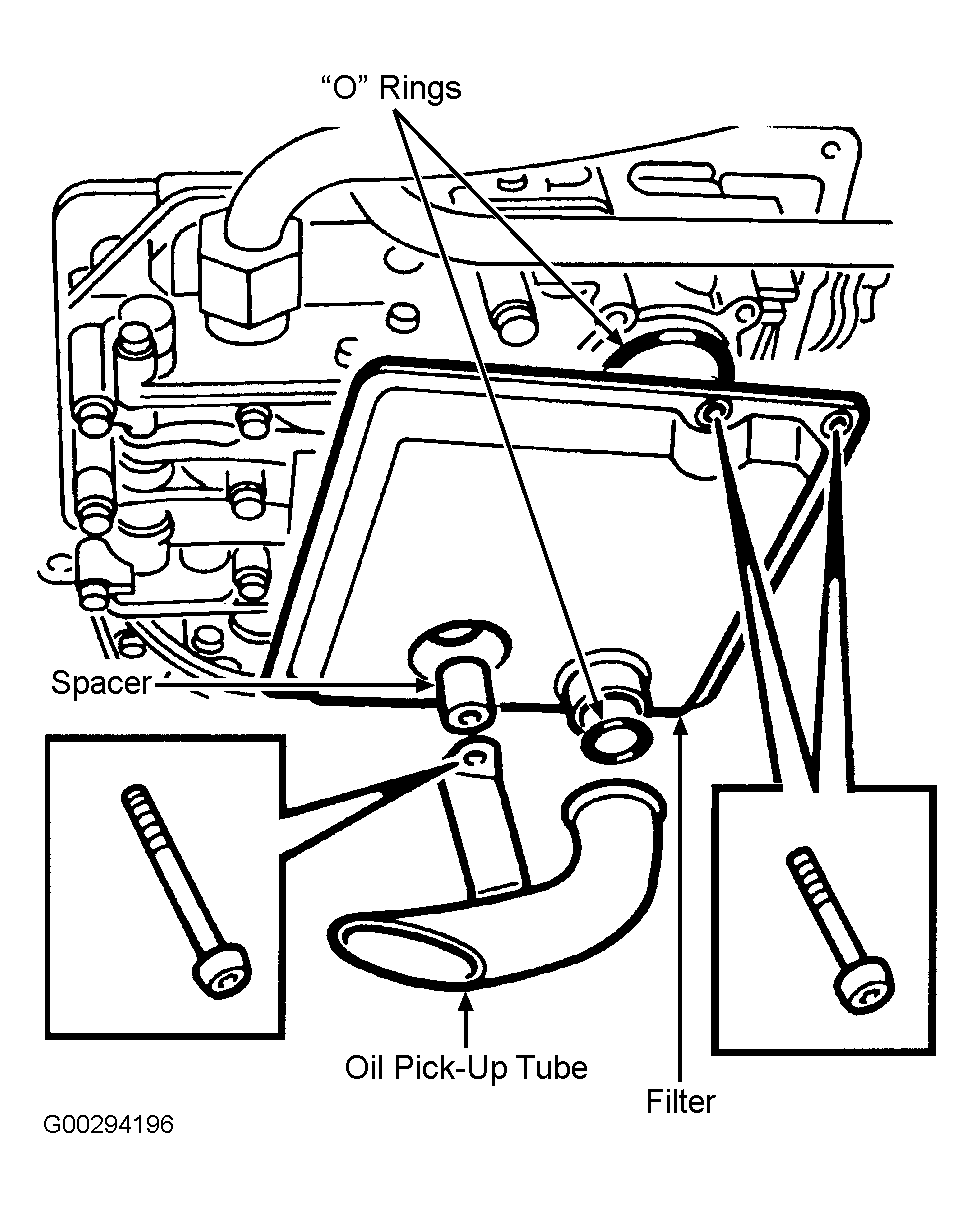

. Remove transmission fluid pan. Collect retaining plates. Remove gasket and discard. Remove bolt securing transmission fluid pick-up tube. See Fig 3
. Remove pick-up tube. Collect spacer. Remove remaining 2 bolts securing filter to valve body. Remove filter. Remove "O" rings and discard.

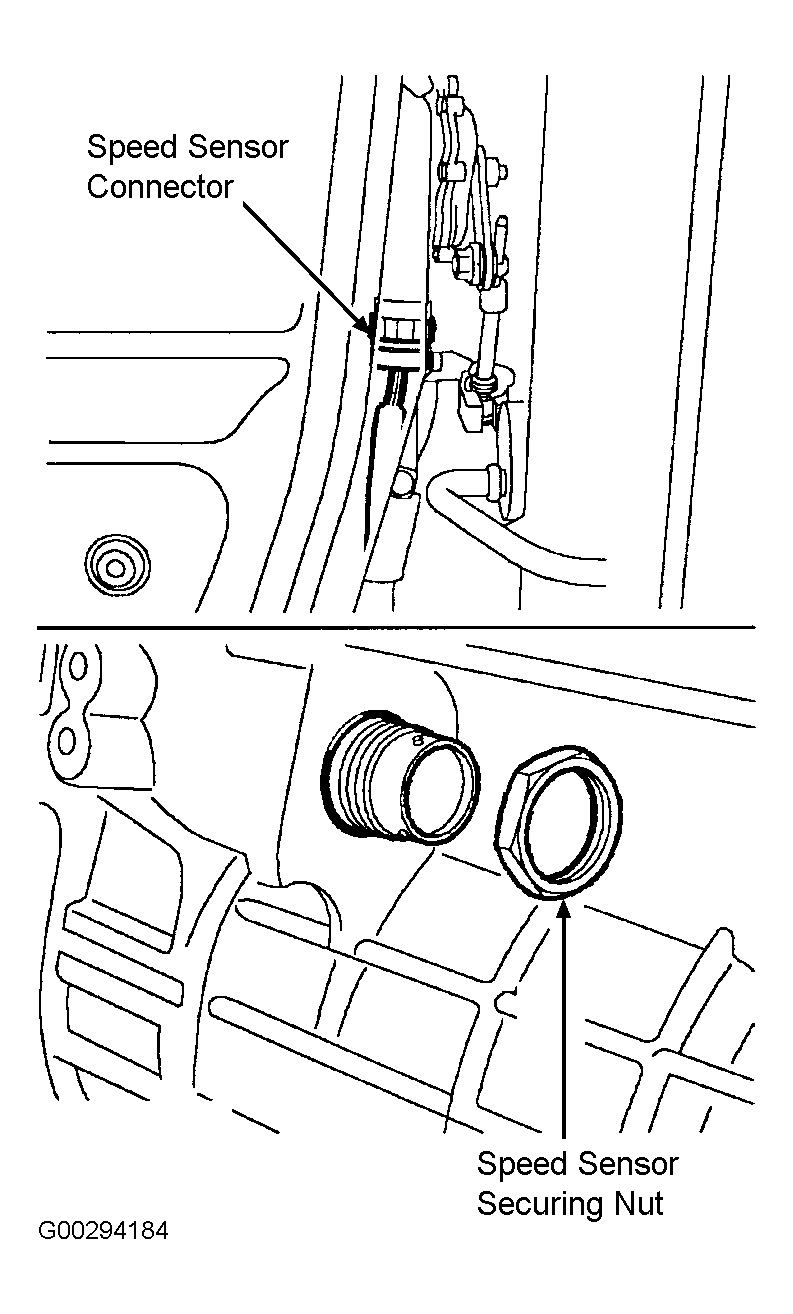

- Remove 2 bolts securing speed sensor harness bracket to valve body. Disconnect connector from automatic transmission housing. See Fig 4
. Using a 30 mm socket, remove nut securing connector block from automatic transmission housing. Remove 6 long bolts securing valve body to automatic transmission. Remove 5 short bolts securing valve body to automatic transmission. Release speed sensor and remove valve body. Remove and discard "O" ring from speed sensor connector.
