Right Hand Seat Fuse Box

NOTE: The right hand seat fuse box is located under the passenger's seat. See Fig 1.

IMPORTANT: The fuse panel is part of the Body Electrical Control Module (BECM). The BECM contains relays that are internal of the control module. These relays are not serviceable.

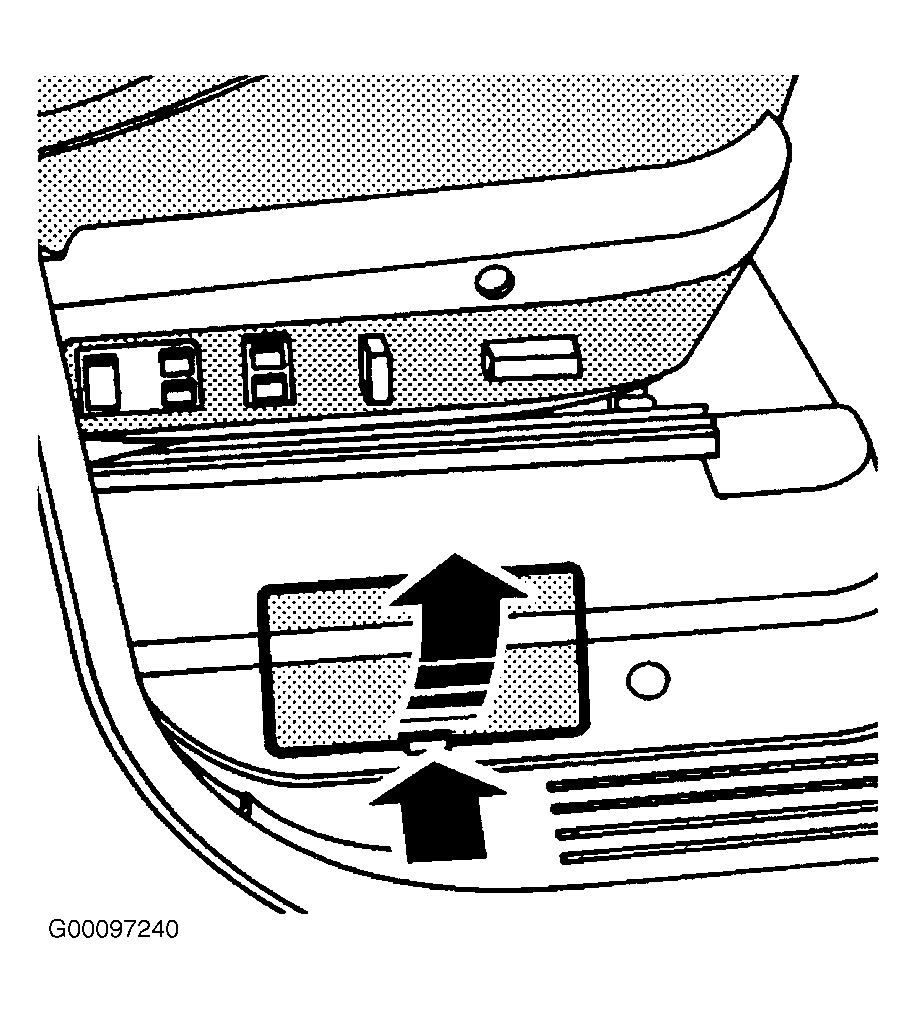

Fig 1: Locating Right Hand Seat Fuse Box

Courtesy of LAND ROVER NORTH AMERICA, INC.

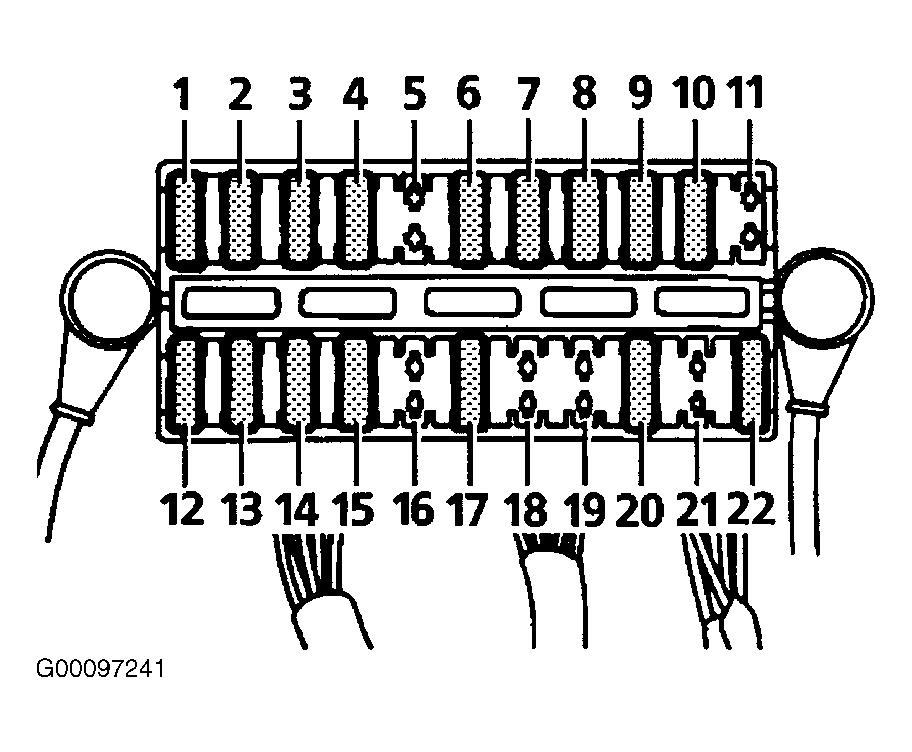

Fig 2: Identifying Right Hand Seat Fuse Box Components

Courtesy of LAND ROVER NORTH AMERICA, INC.

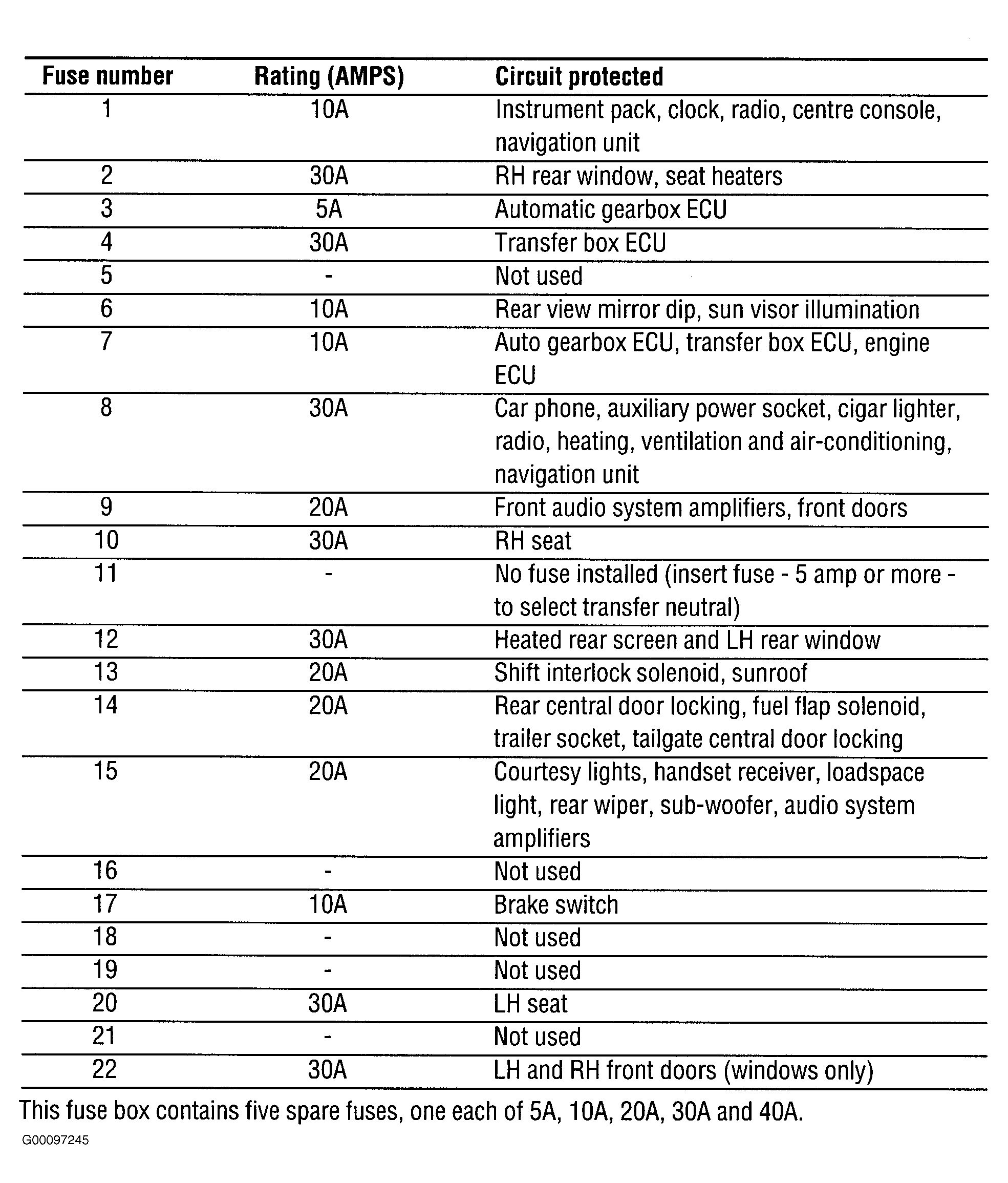

Fig 3: Right Hand Seat Fuse Box Legend

Courtesy of LAND ROVER NORTH AMERICA, INC.
