Power Steering Box - V8: Removal

    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise front of vehicle.
  2. Remove front road wheel.
  3. Ensure steering wheel is centralized and fit centralizing bolt to steering box. Remove key from steering lock and engage column lock. See Fig 1.
  4. Remove 3 bolts securing intermediate shaft and universal joint. See Fig 2.
    5. CAUTION: Do not turn the steering wheel with the intermediate shaft or universal joint disconnected as damage to the rotary coupler and the steering wheel switches may occur.
  5. Push intermediate shaft upwards, release and remove universal joint.
  6. Position container to catch oil spillage.
    7. CAUTION: Always fit plugs to open connections to prevent contamination.
  7. Right drive models: Remove 4 bolts securing oil filter housing, remove housing and discard "O" ring. See Fig 3.
    8. CAUTION: Always fit plugs to open connections to prevent contamination.
  8. Remove bolt securing PAS pipe bracket to steering box, release pipes and discard "O" rings. See Fig 4.
  9. Remove securing nut and bolt and release Panhard rod. See Fig 5.
  10. Remove nut securing drag link to drop arm. Using LRT-57-036, break taper joint and release drag link. See Figure.
  11. Right drive models with Active Cornering Enhancement (ACE): Remove nut securing anti-roll bar link lower ball joint and release joint. See Fig 6.
  12. Right drive models with ACE: Position ACE control arms to access steering box bolts. See Fig 7.
  13. With assistance remove 4 securing bolts and remove steering box.
  14. Remove centralizing bolt from steering box.

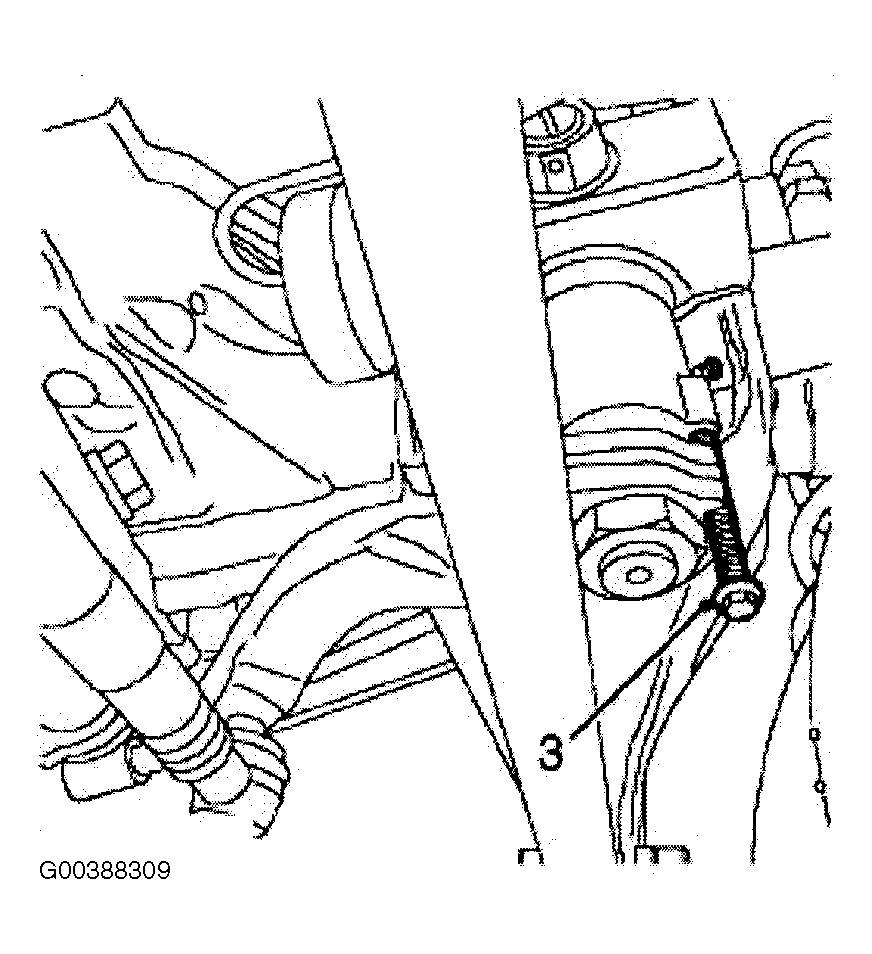

Fig 1: Installing Centralizing Bolt-To-Steering Box
G00388309Courtesy of LAND ROVER NORTH AMERICA, INC.

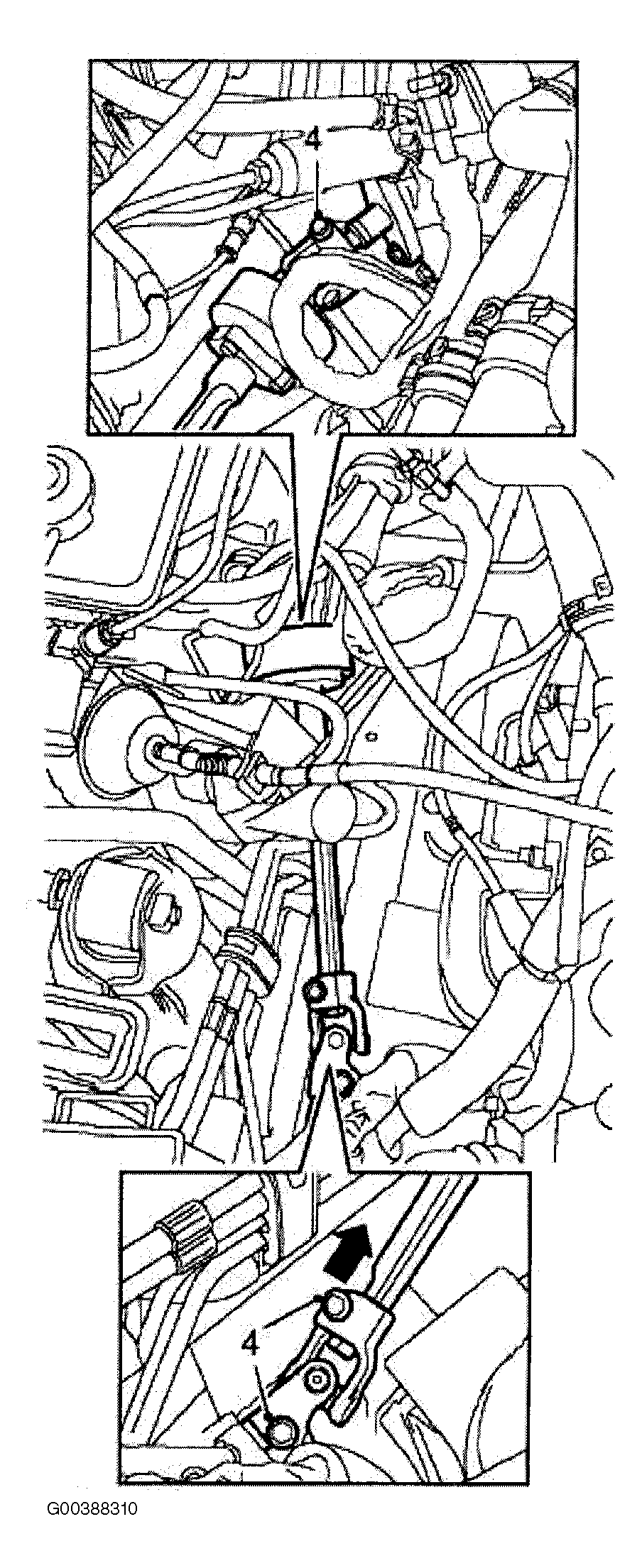

Fig 2: Removing Intermediate Shaft & Universal Joint
G00388310Courtesy of LAND ROVER NORTH AMERICA, INC.

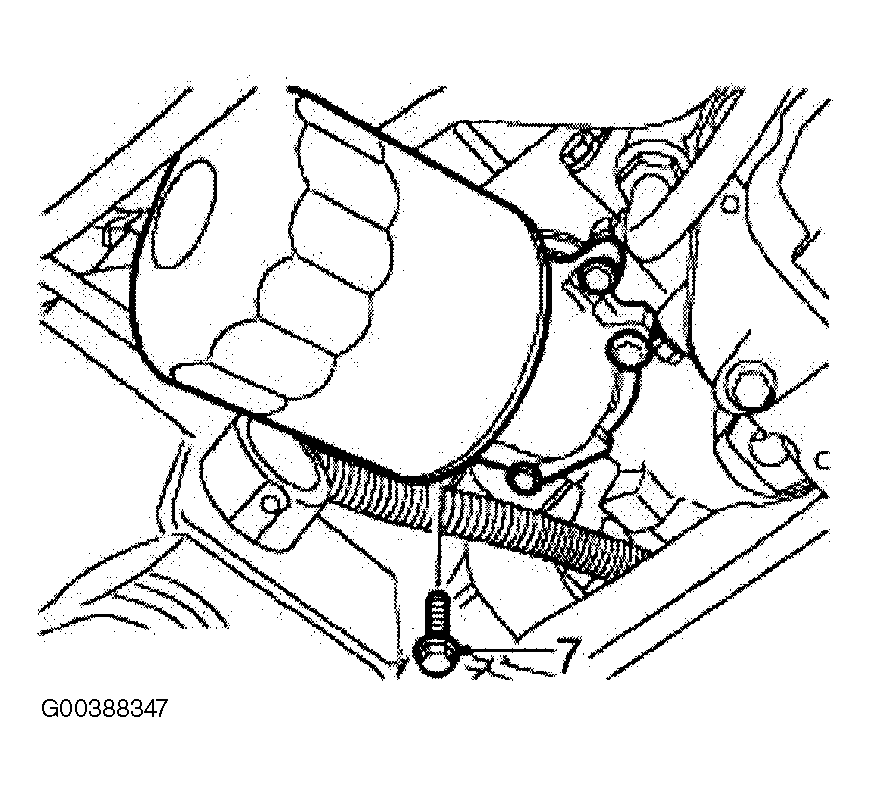

Fig 3: Removing Oil Filter Housing
G00388347Courtesy of LAND ROVER NORTH AMERICA, INC.

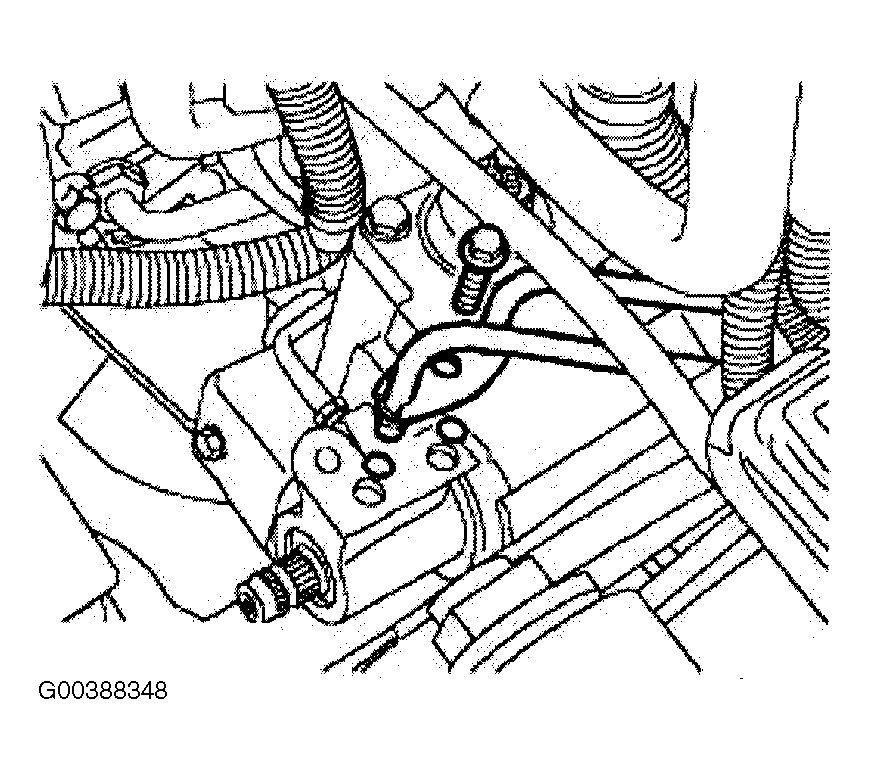

Fig 4: Removing Power Assisted Steering Pipe Bracket-To-Steering Box
G00388348Courtesy of LAND ROVER NORTH AMERICA, INC.

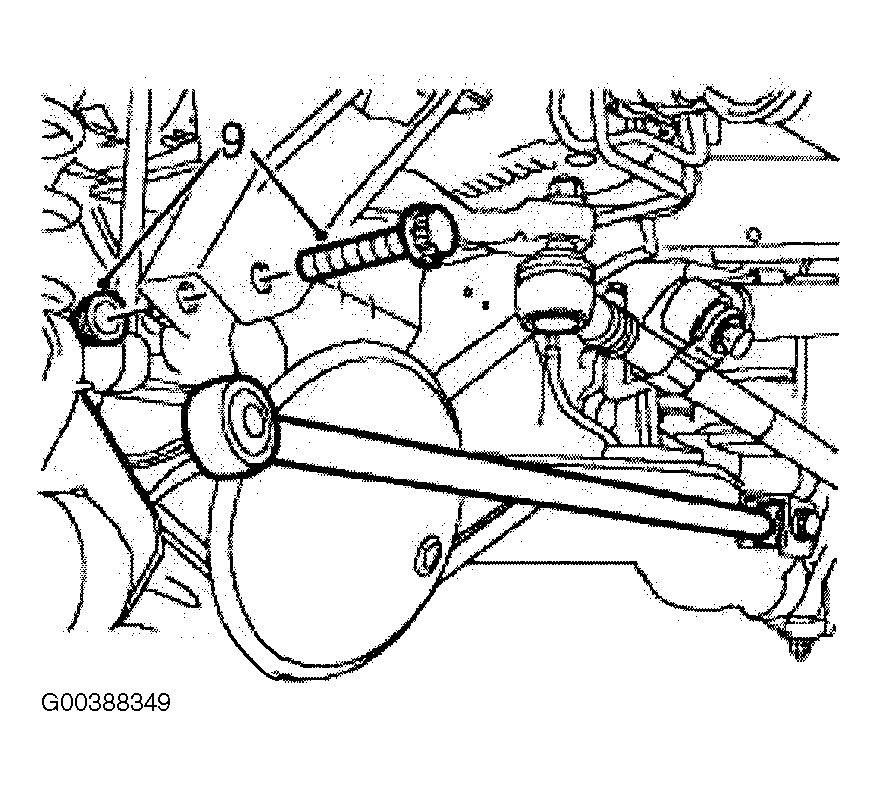

Fig 5: Removing Panhard Rod
G00388349Courtesy of LAND ROVER NORTH AMERICA, INC.

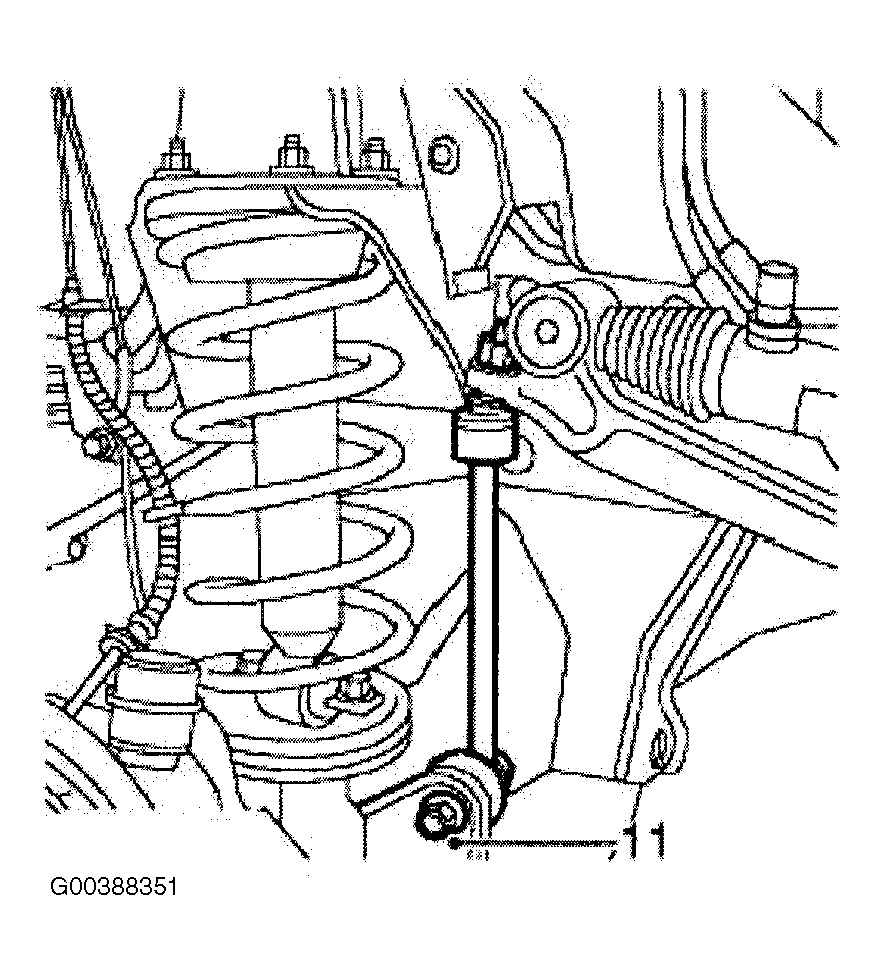

Fig 6: Removing Anti-Roll Bar Link Lower Ball Joint
G00388351Courtesy of LAND ROVER NORTH AMERICA, INC.

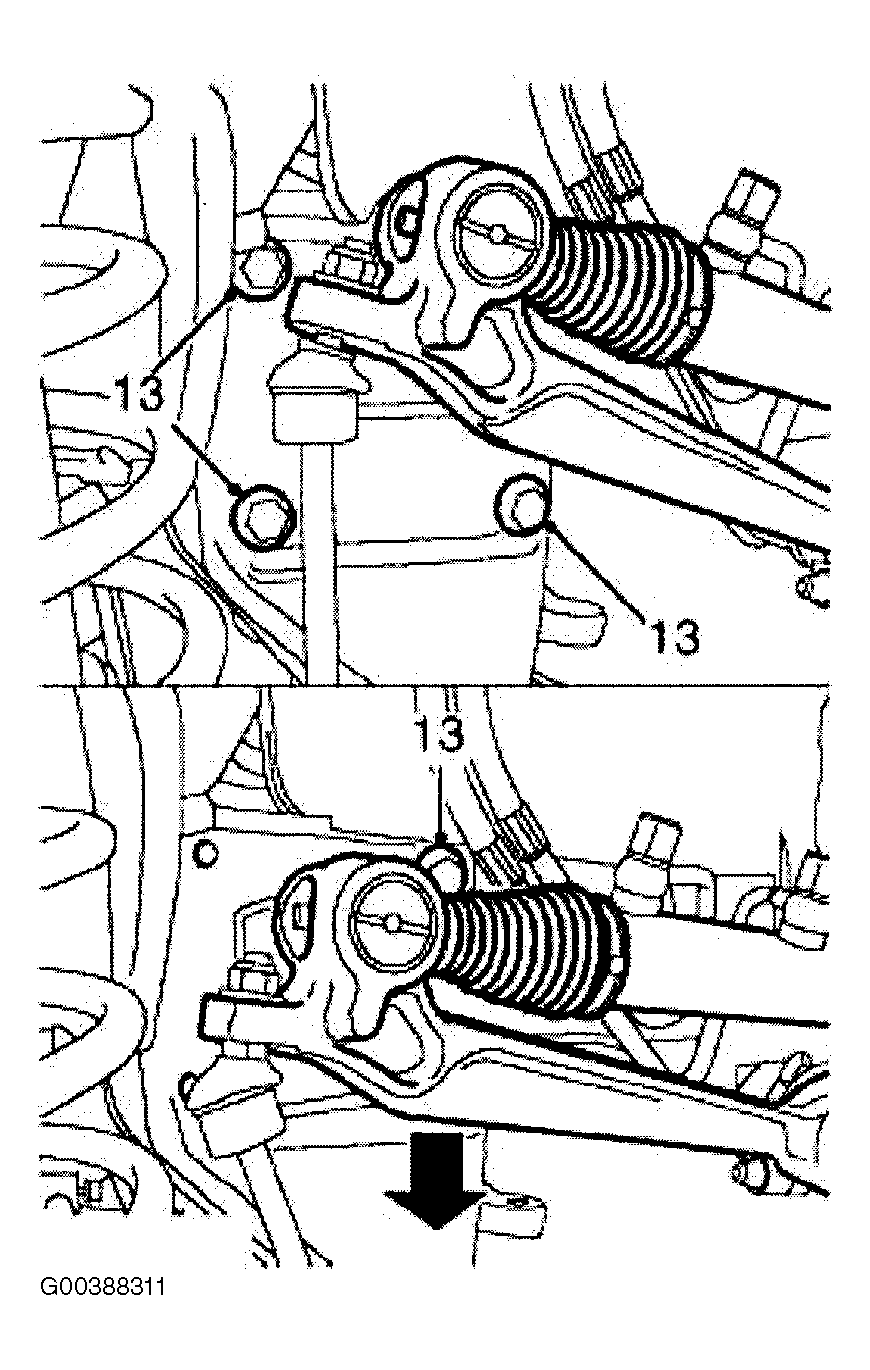

Fig 7: Positioning Active Cornering Enhancement (ACE) Control Arms-To-Access Steering Box Bolts
G00388311Courtesy of LAND ROVER NORTH AMERICA, INC.
