Wiring Diagrams

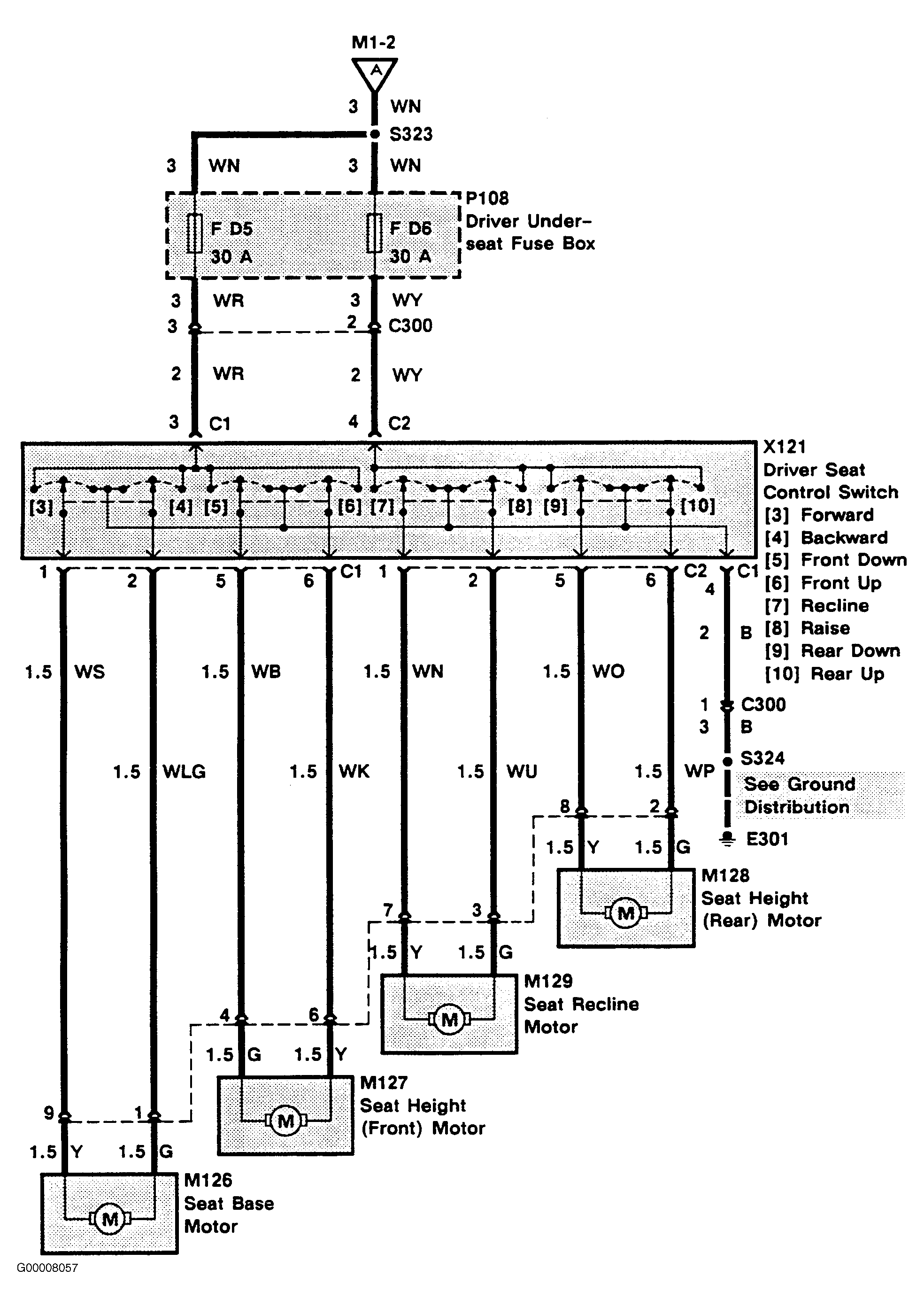

Fig 1: Power Seats Wiring Diagram (1992 - 1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

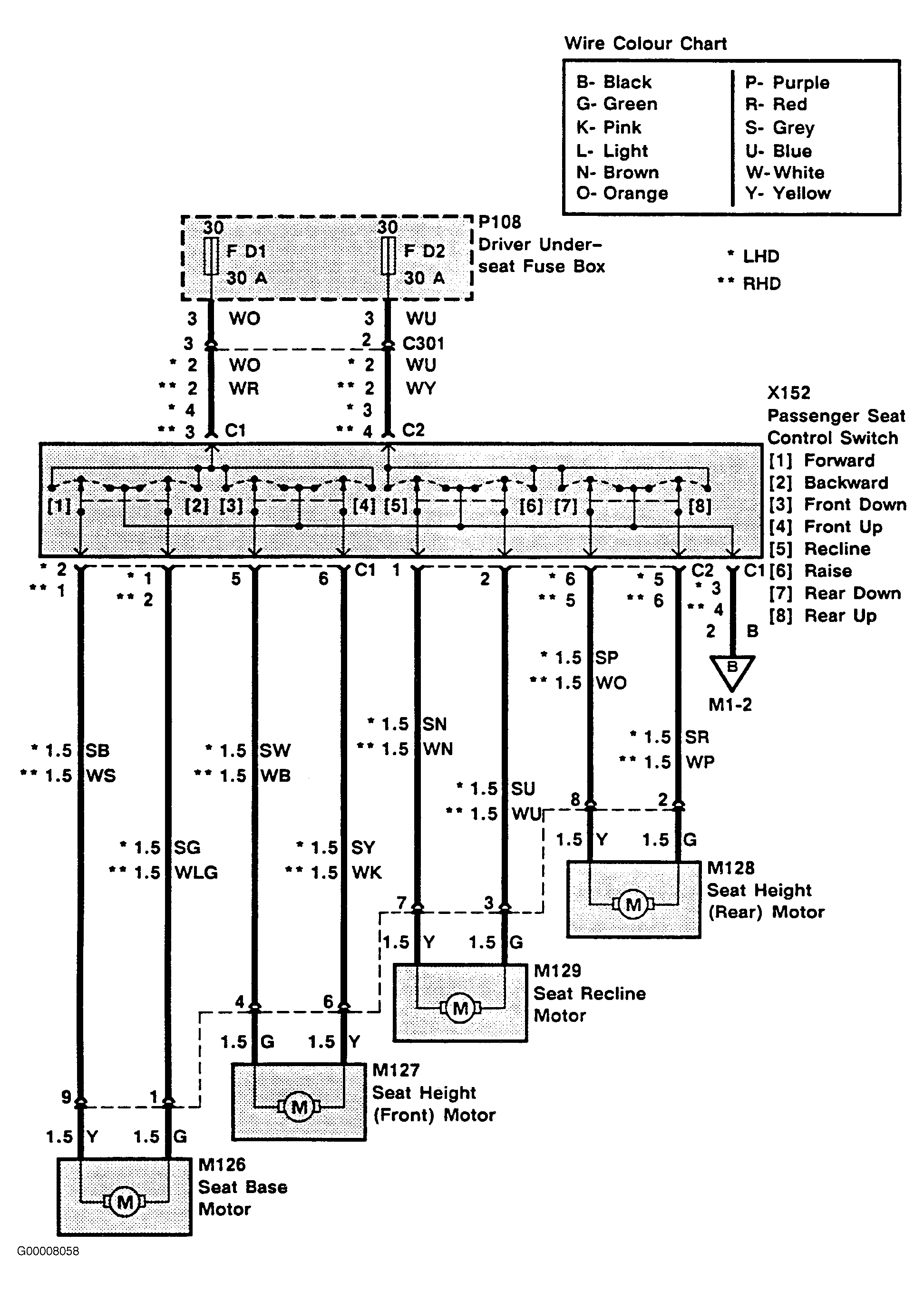

Fig 2: Power Seats Wiring Diagram (1992 - 2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

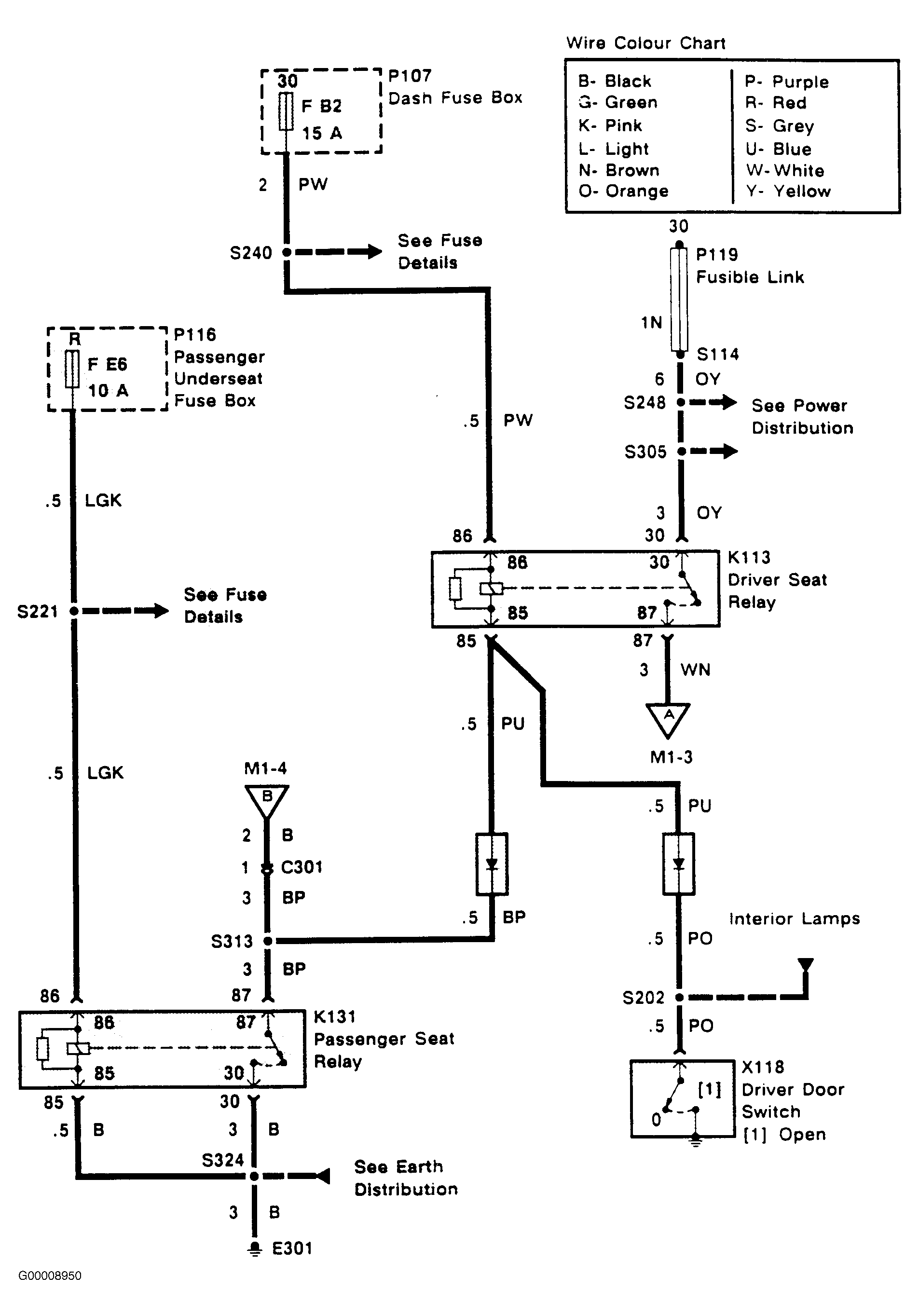

Fig 3: Power Seats Wiring Diagram (1992 - 3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

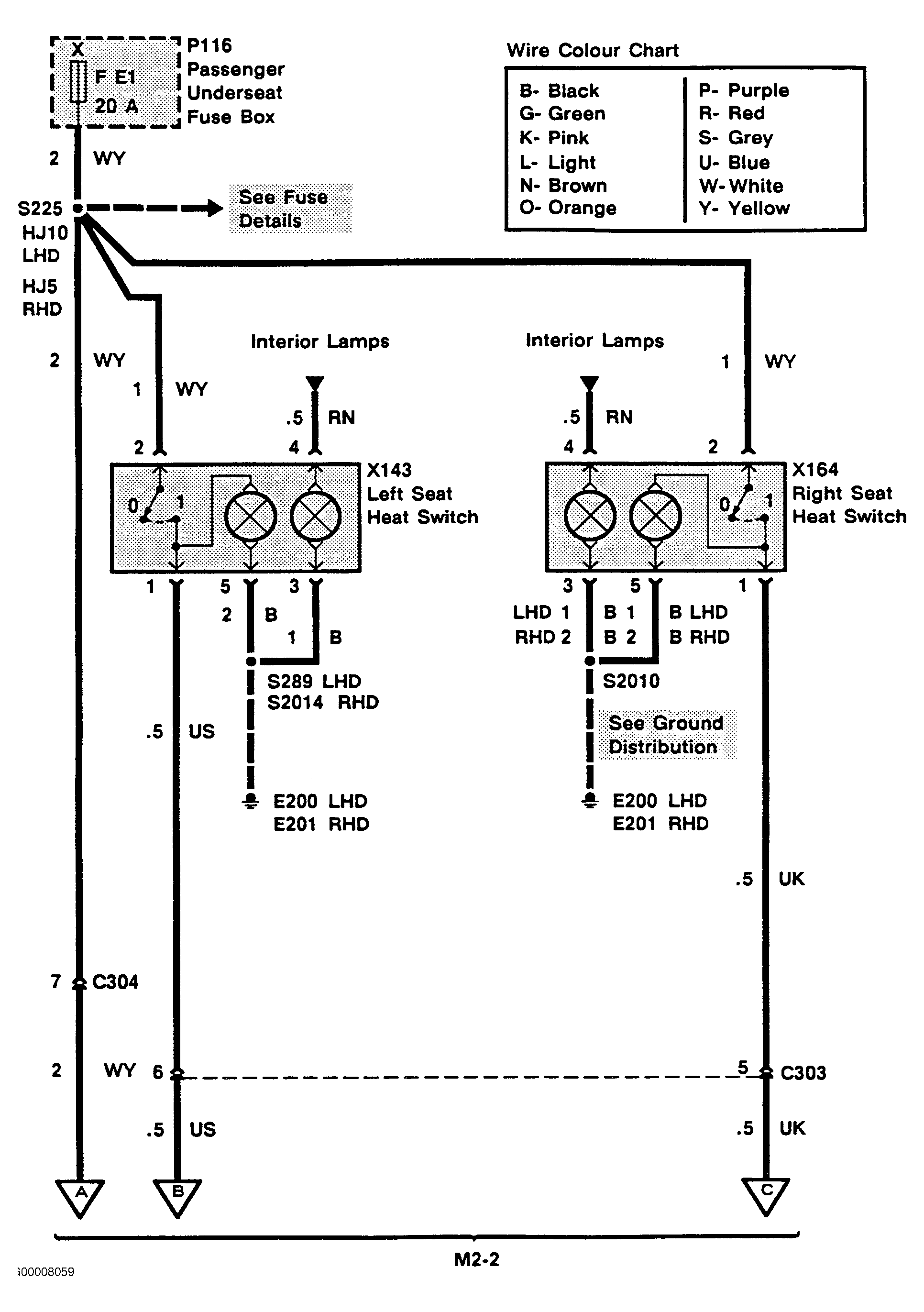

Fig 4: Heated Seat System Wiring Diagram (1992 - 1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 5: Heated Seat System Wiring Diagram (1992 - 2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

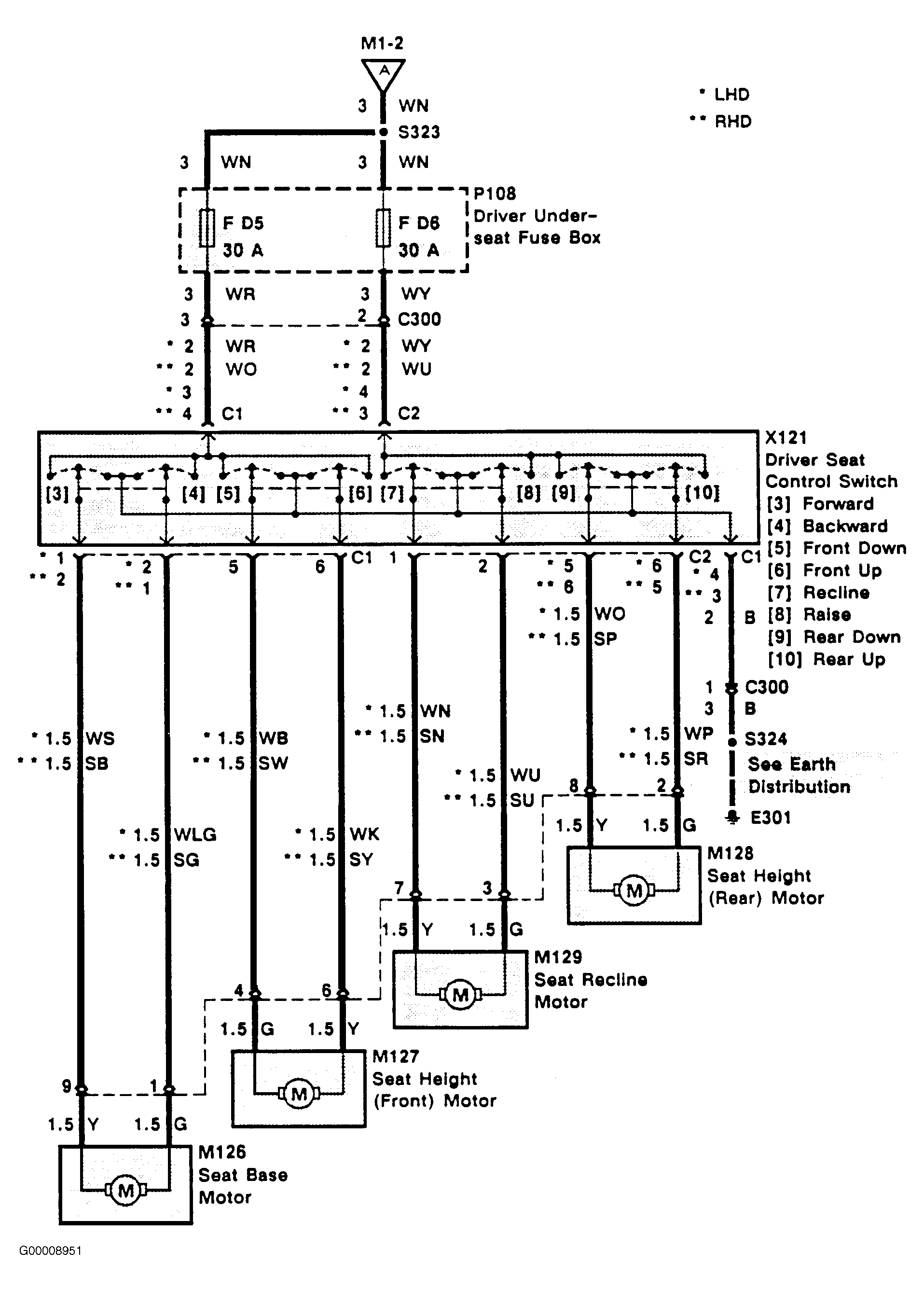

Fig 6: Power Seats Wiring Diagram (1993-94 - 1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

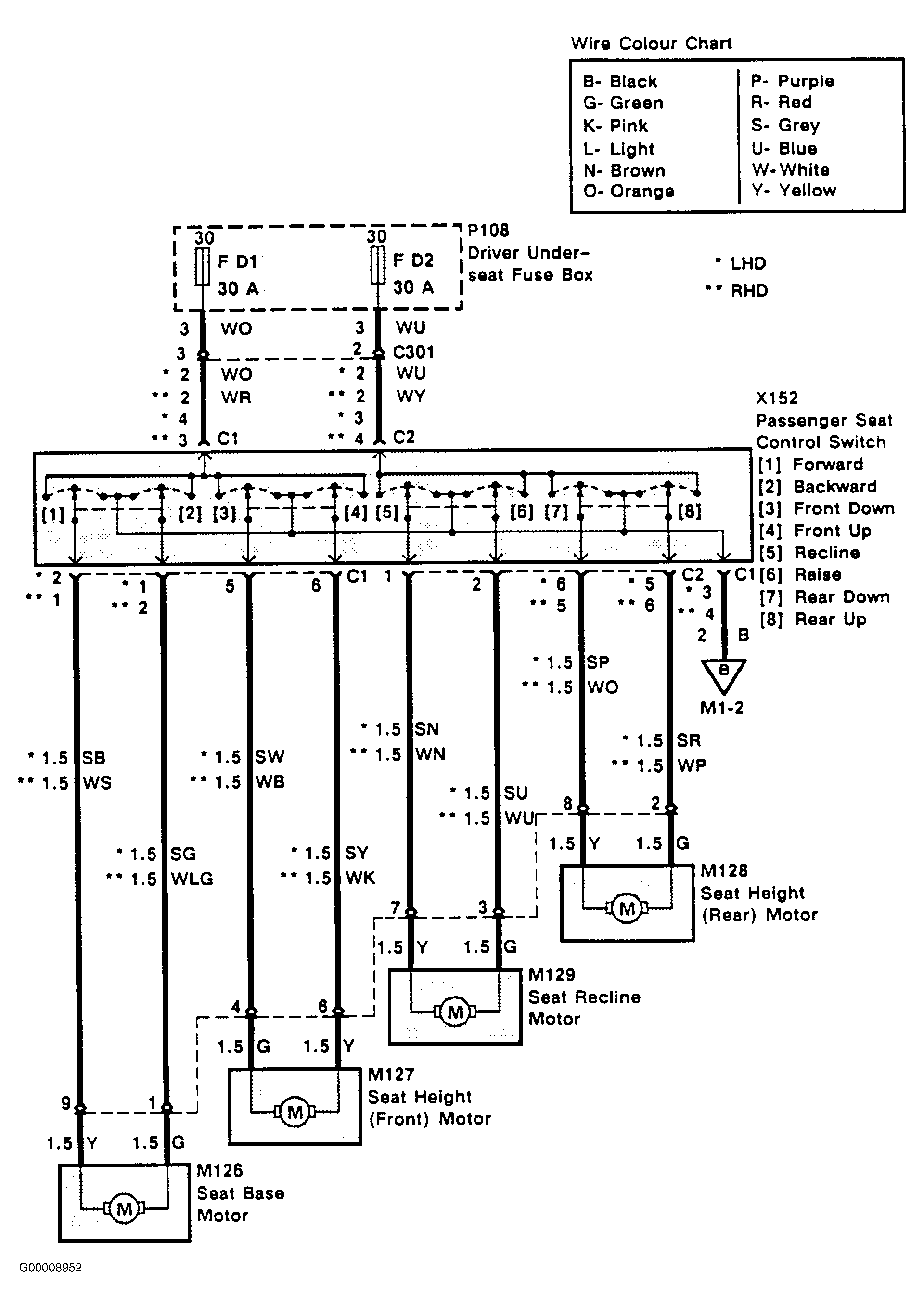

Fig 7: Power Seats Wiring Diagram (1993-94 - 2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

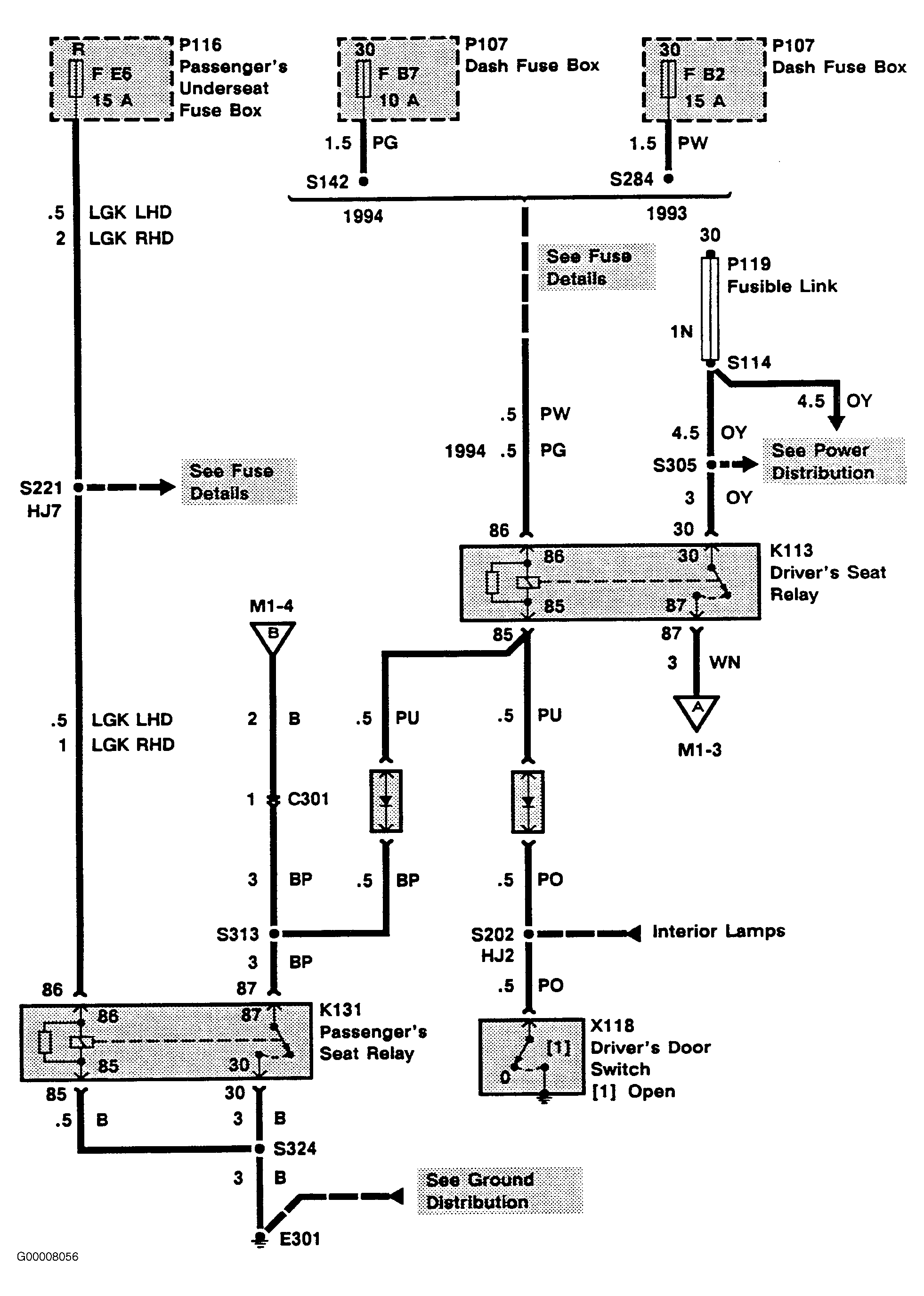

Fig 8: Power Seats Wiring Diagram (1993-94 - 3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

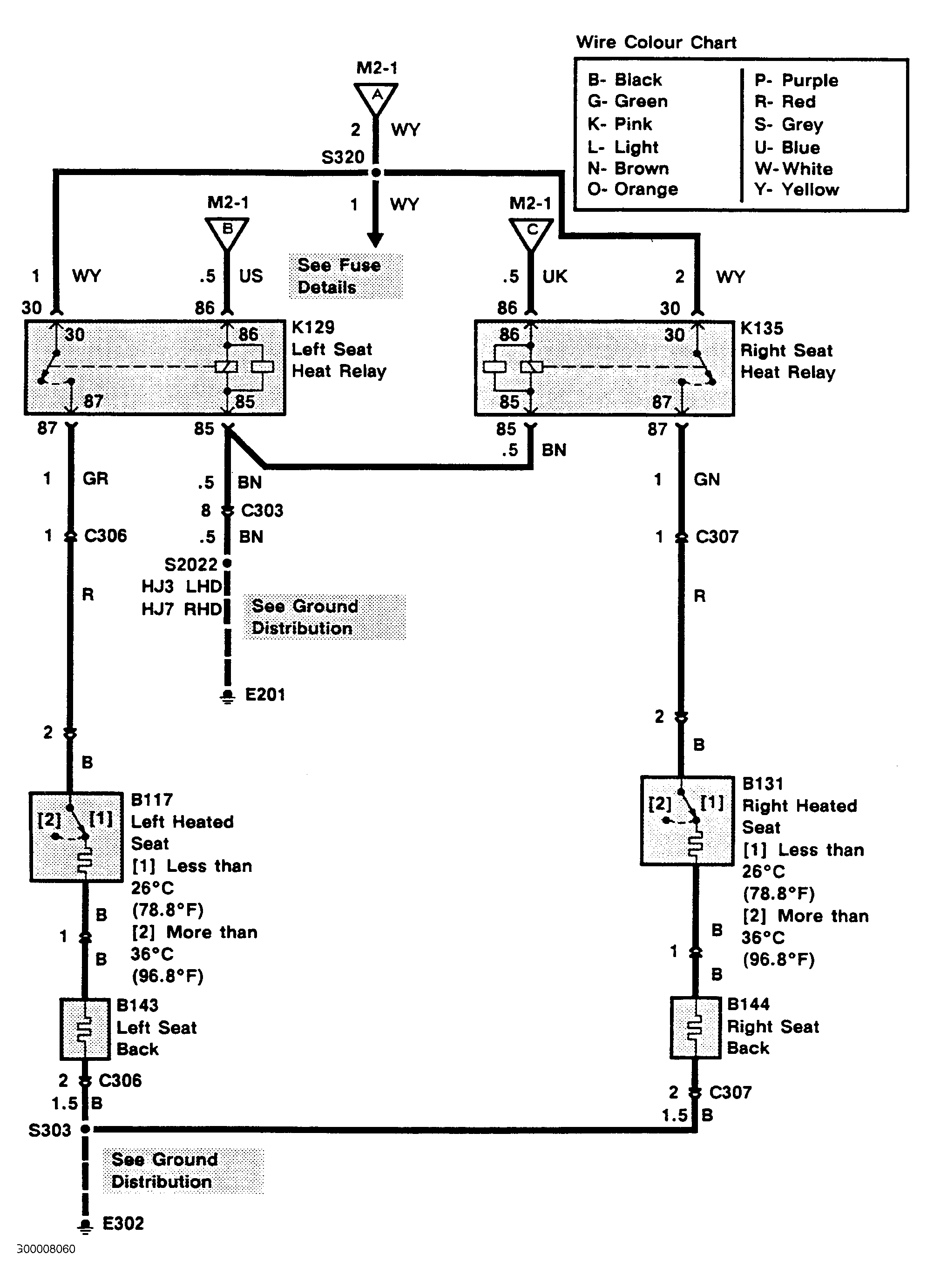

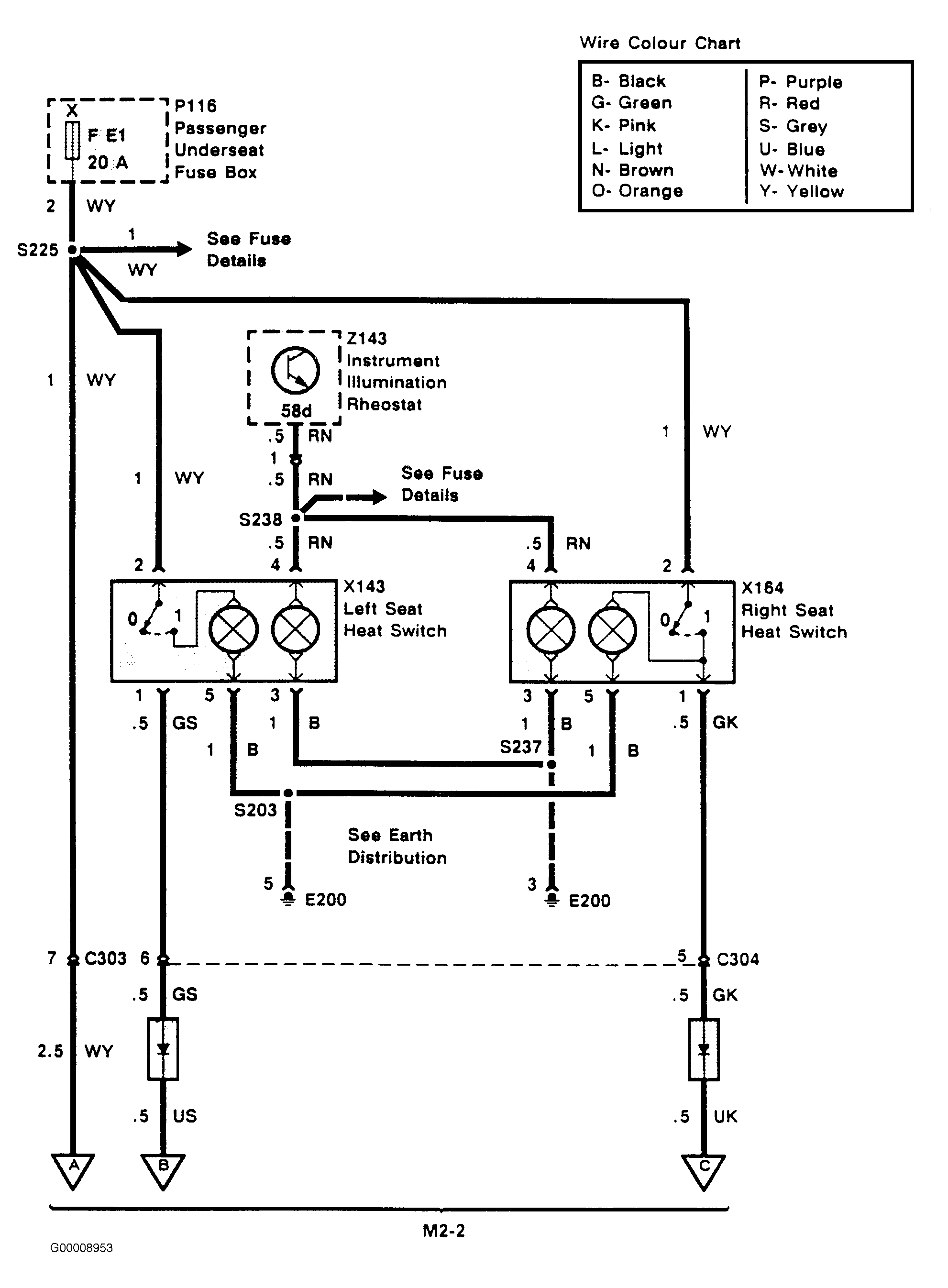

Fig 9: Heated Seat System Wiring Diagram (1993 - 1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 10: Heated Seat System Wiring Diagram (1993 - 2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
