Test G: Some, But Not All, Driver's Power Seat Functions Operate

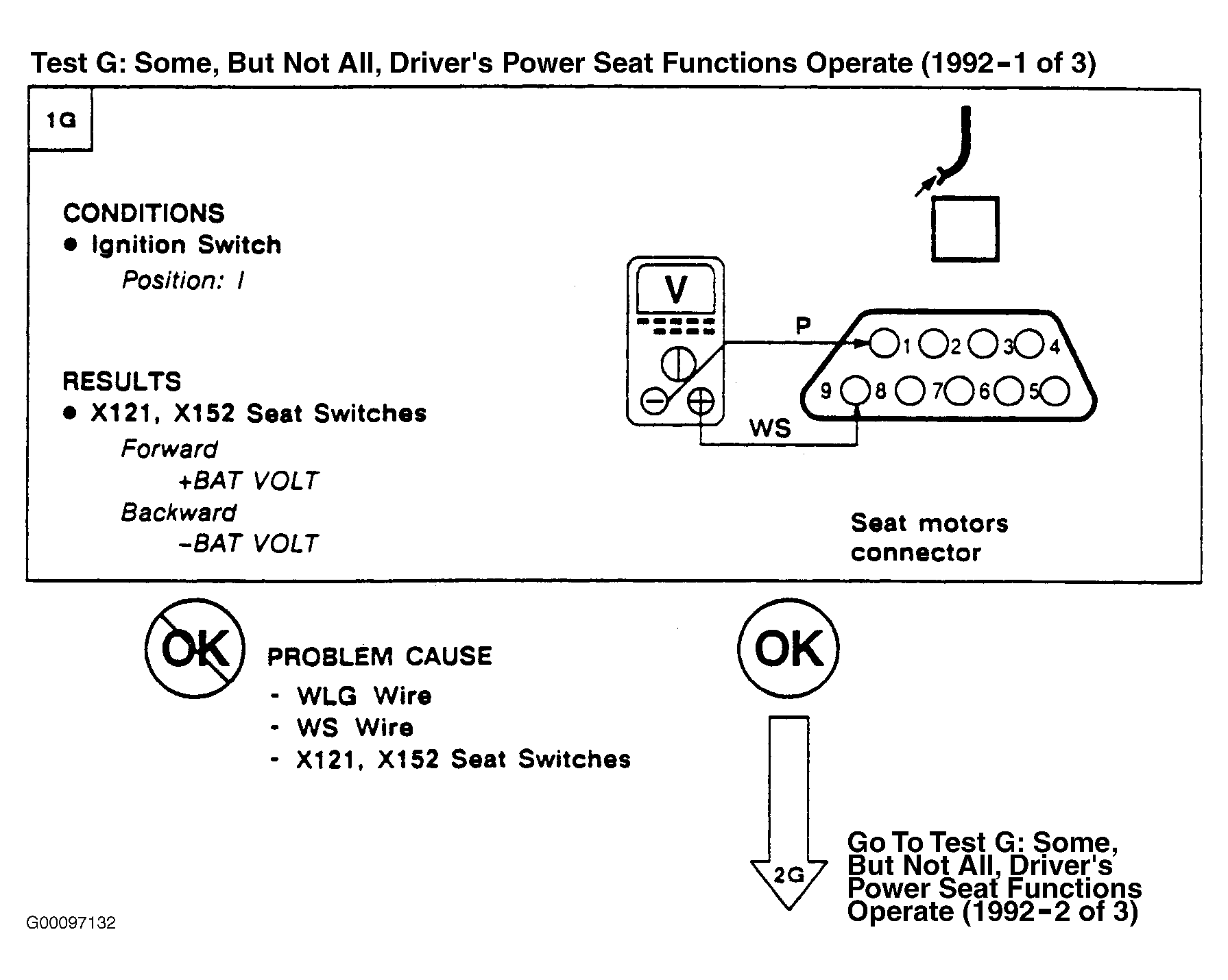

Fig 1: Test G: Some, But Not All, Driver's Power Seat Functions Operate (1992 - 1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

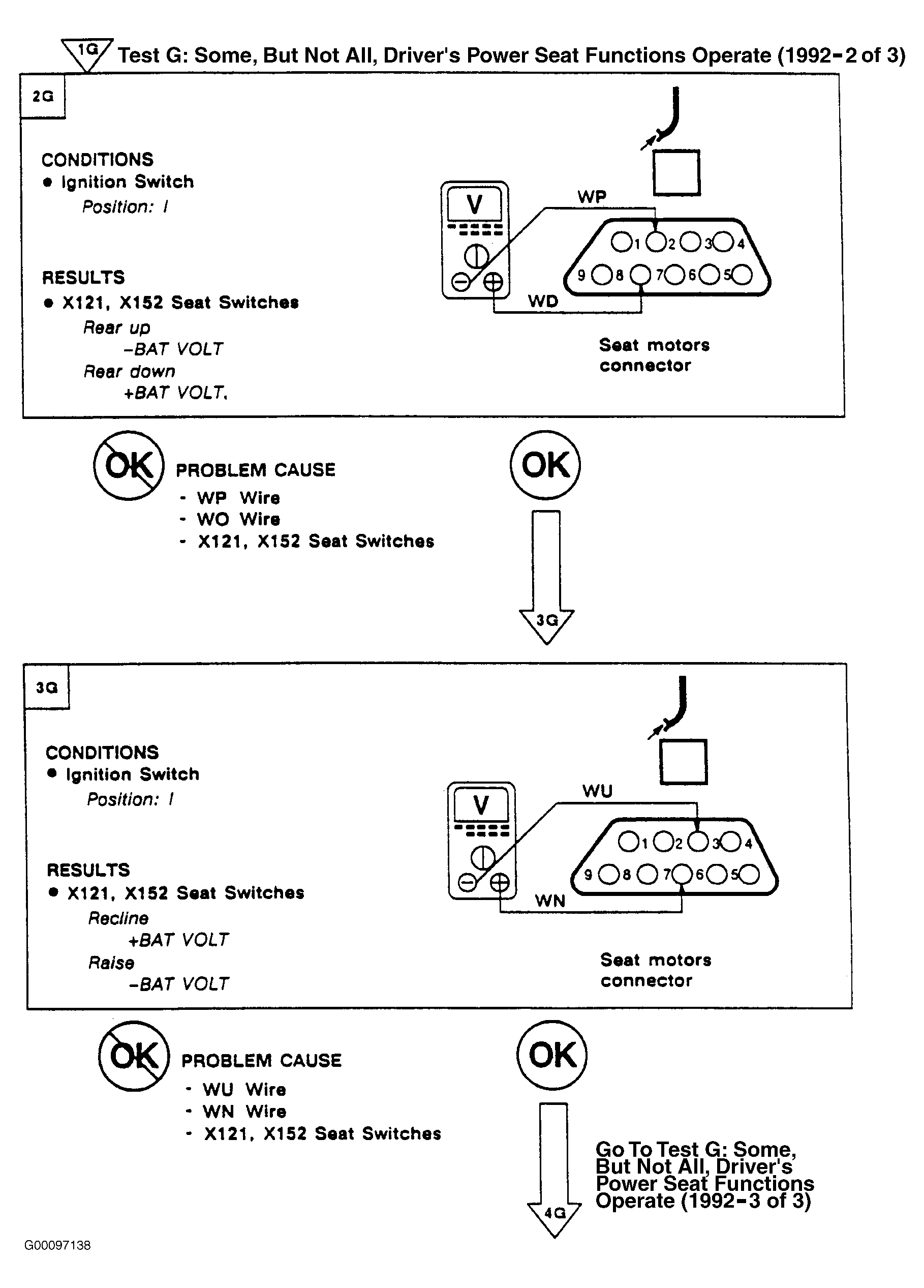

Fig 2: Test G: Some, But Not All, Driver's Power Seat Functions Operate (1992 - 2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

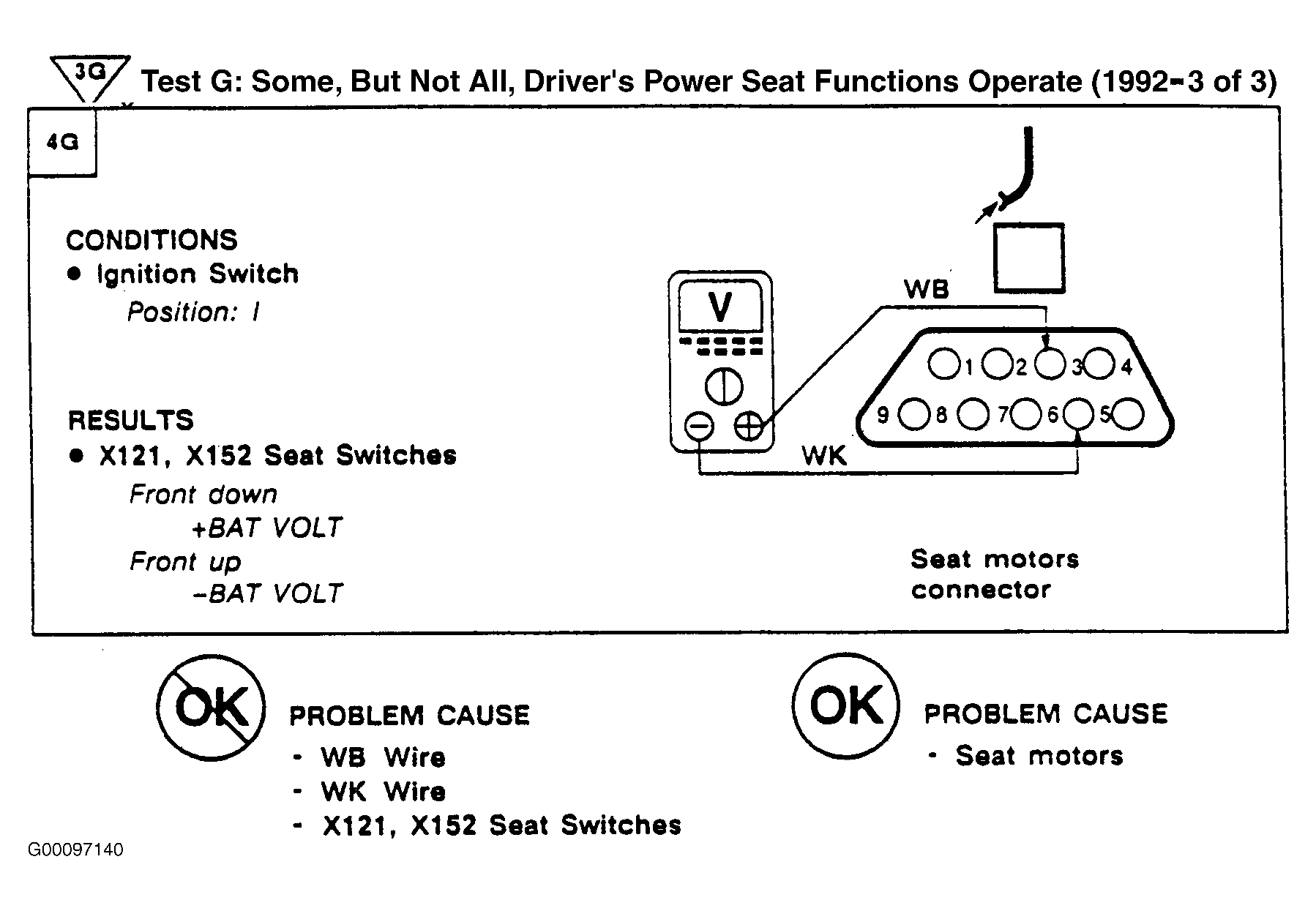

Fig 3: Test G: Some, But Not All, Driver's Power Seat Functions Operate (1992 - 3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

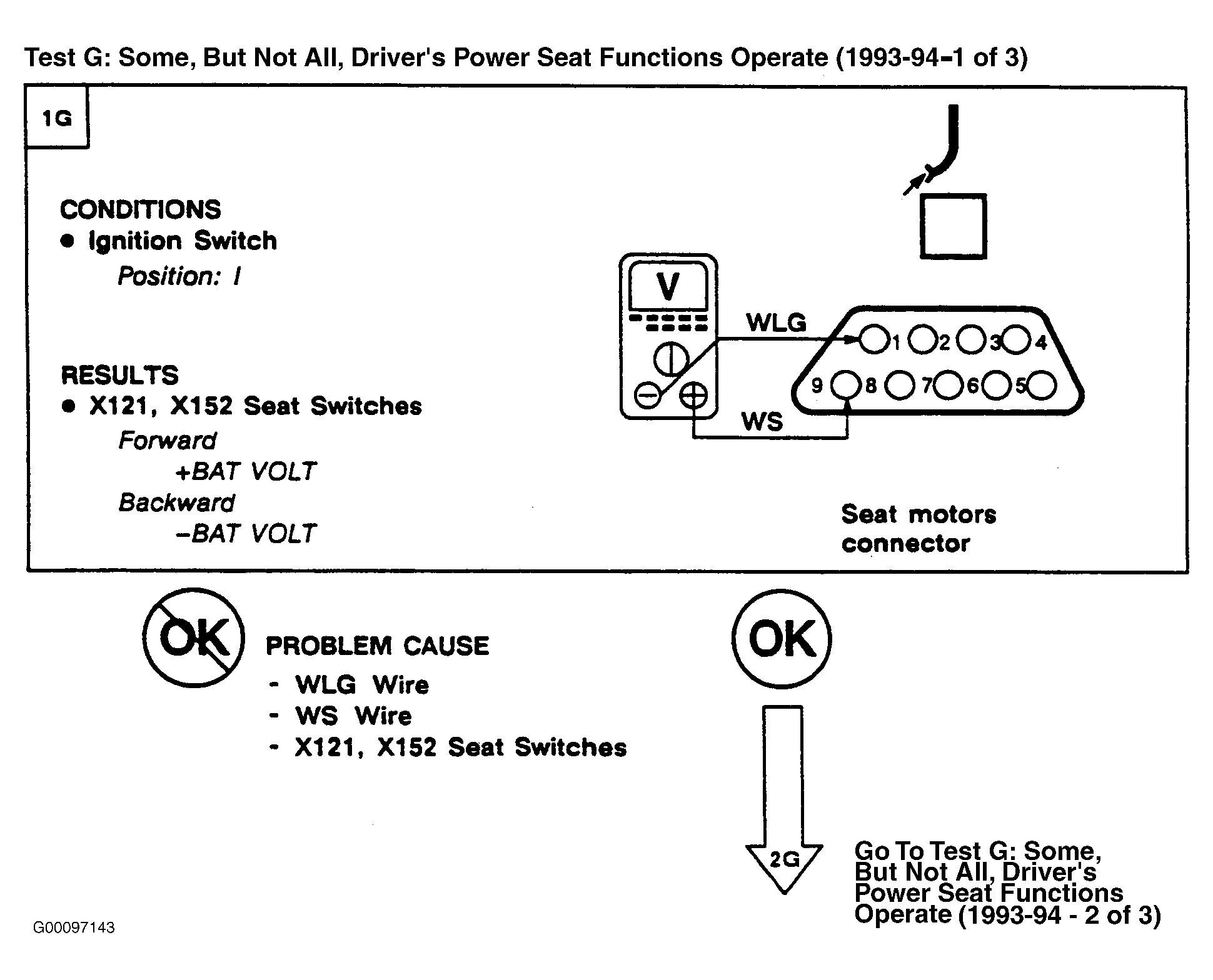

Fig 4: Test G: Some, But Not All, Driver's Power Seat Functions Operate (1993-94 - 1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

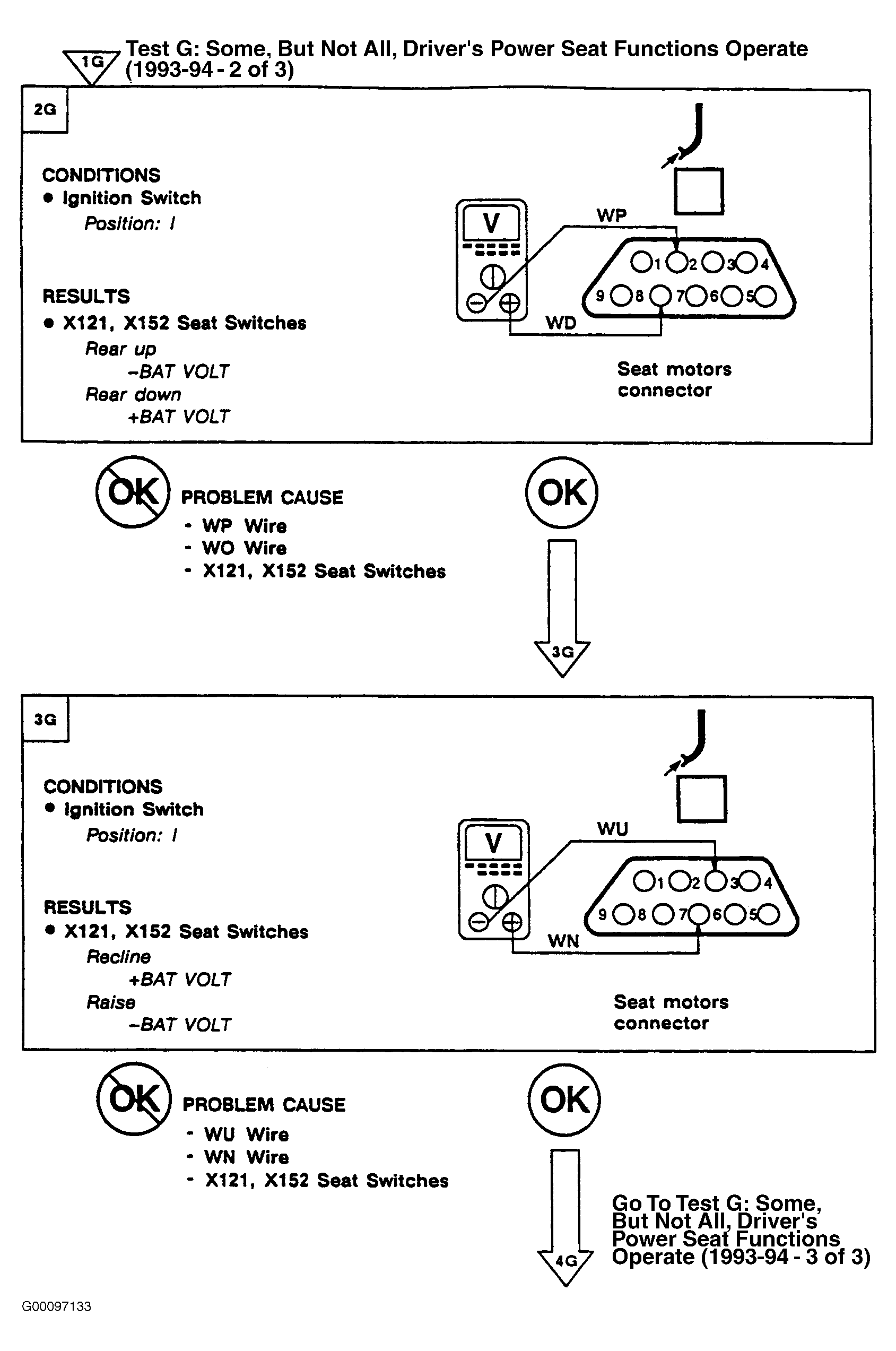

Fig 5: Test G: Some, But Not All, Driver's Power Seat Functions Operate (1993-94 - 2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

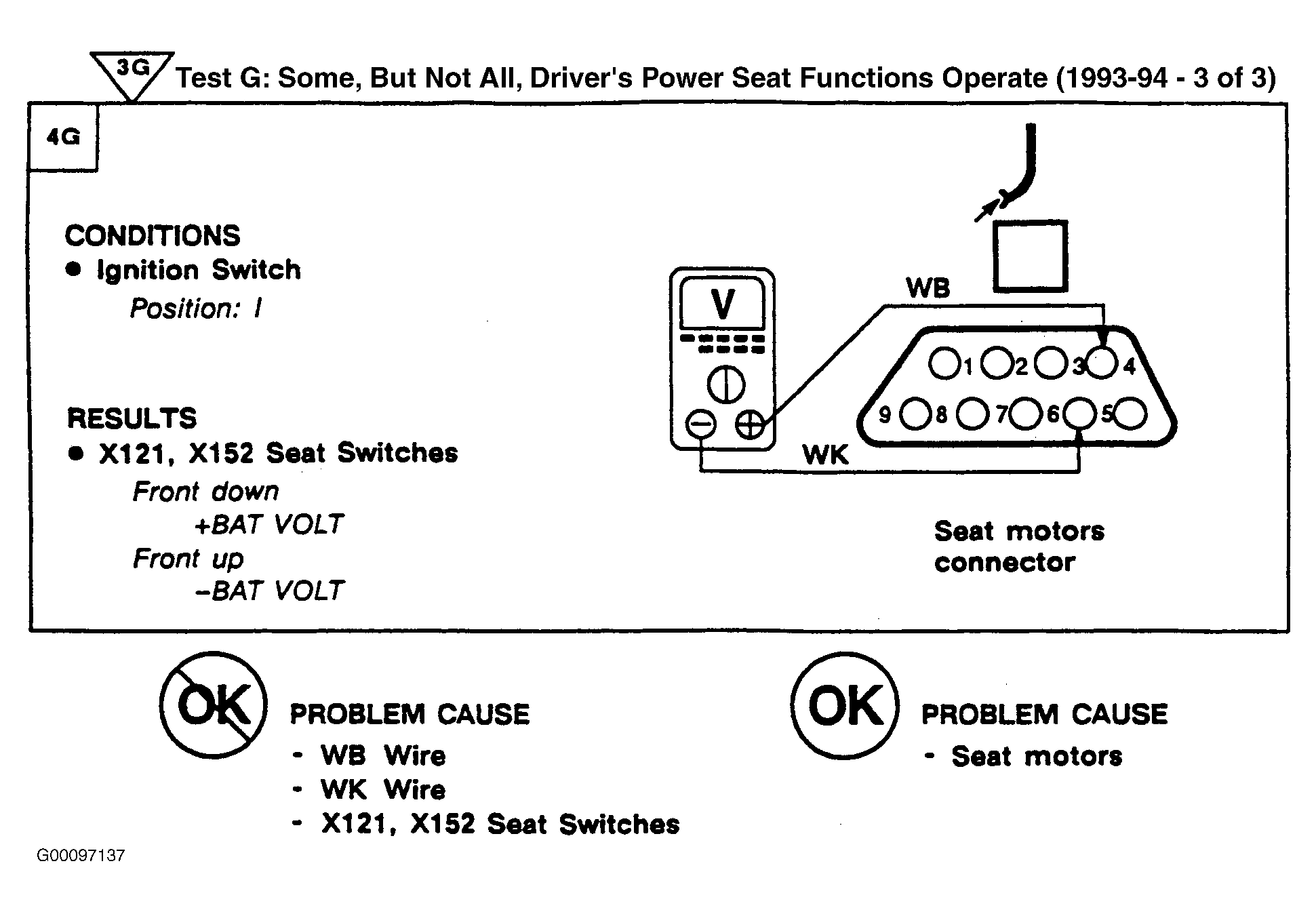

Fig 6: Test G: Some, But Not All, Driver's Power Seat Functions Operate (1993-94 - 3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
