Relay Identification

NOTE: See Fig 1 , to identify all relays.

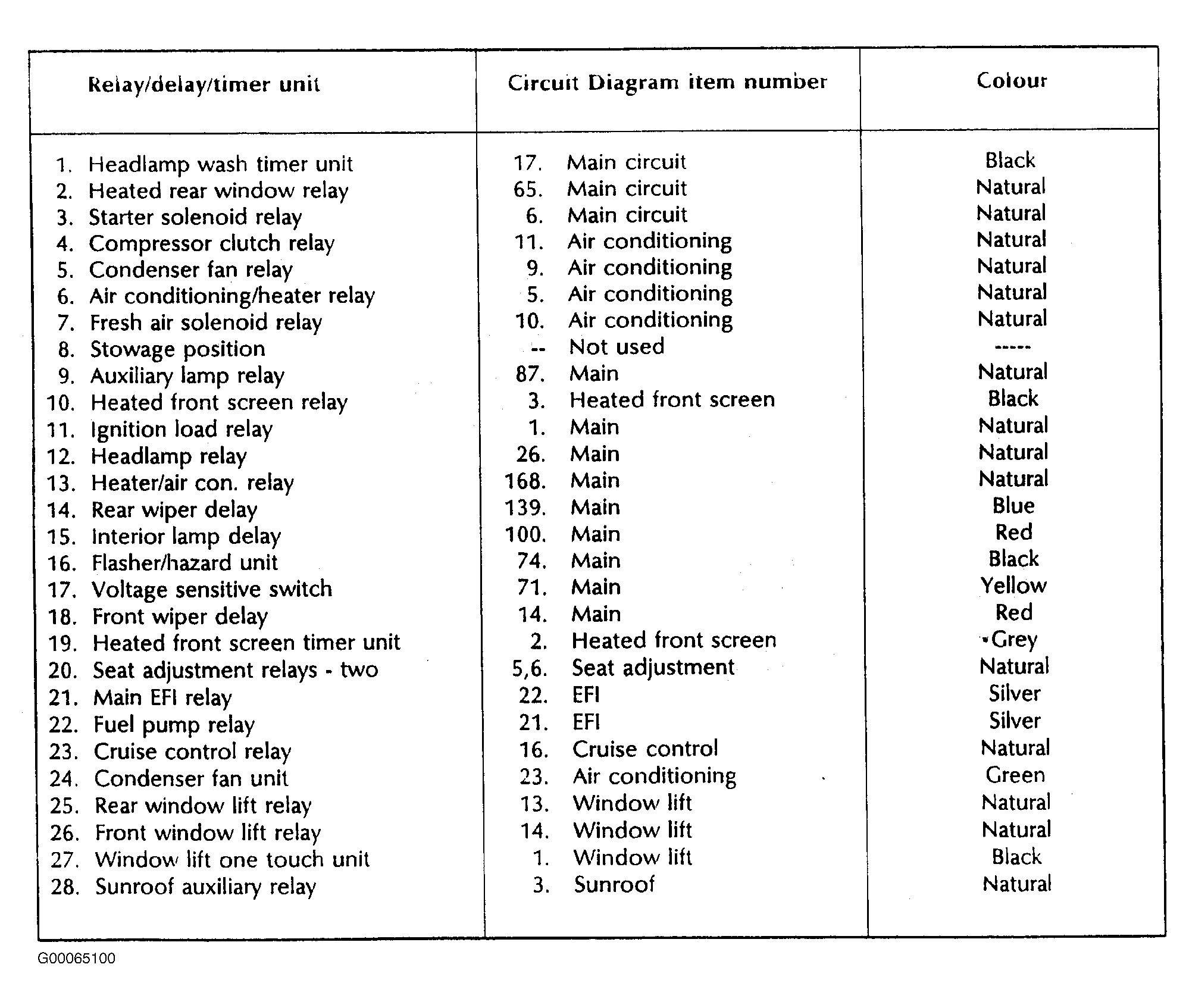

Fig 1: Relay Identification - All Relays

G00065100

Courtesy of LAND ROVER NORTH AMERICA, INC.
