Steering Pump

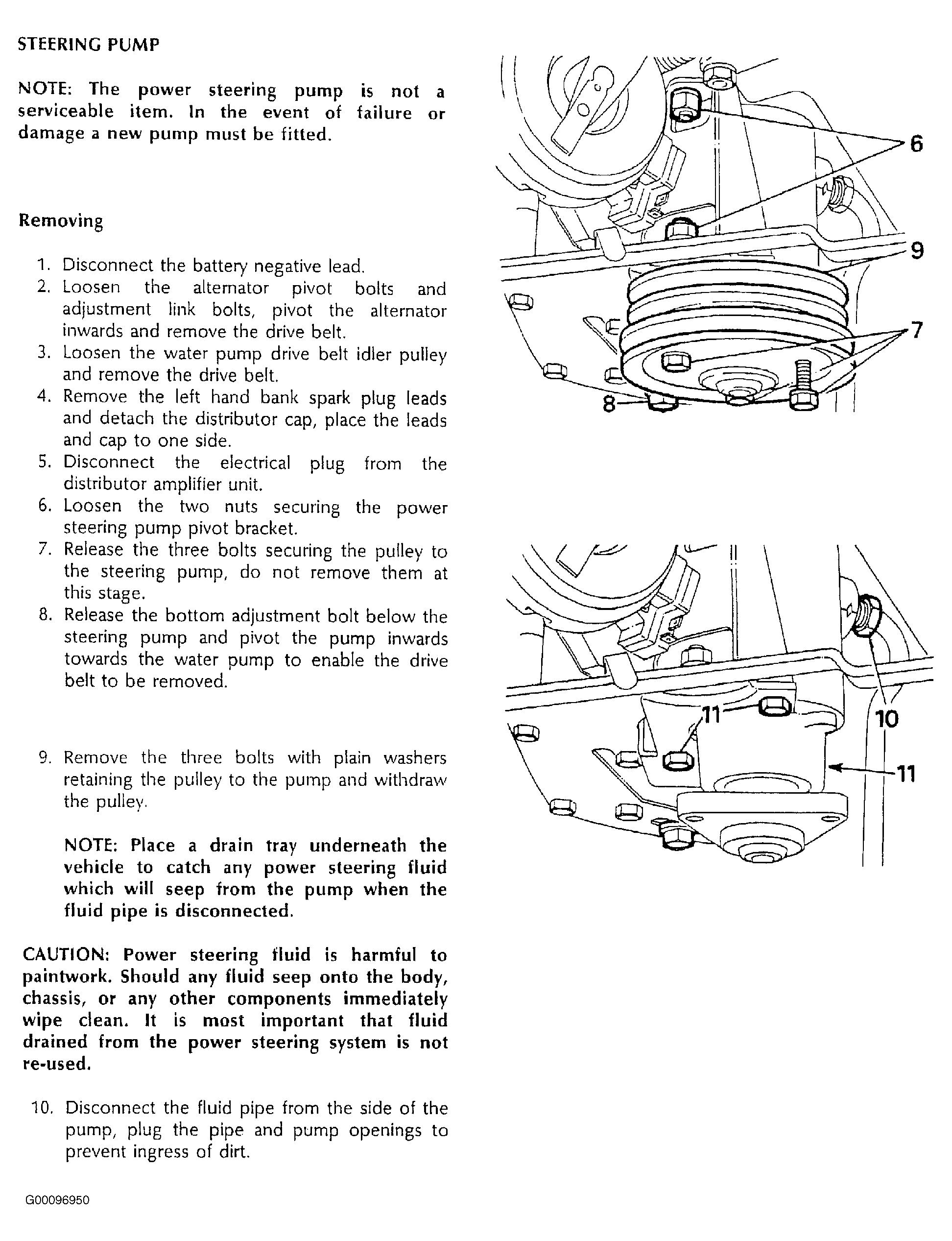

Fig 1: Removing Steering Pump (1 of 2)

G00096950

Courtesy of LAND ROVER NORTH AMERICA, INC.

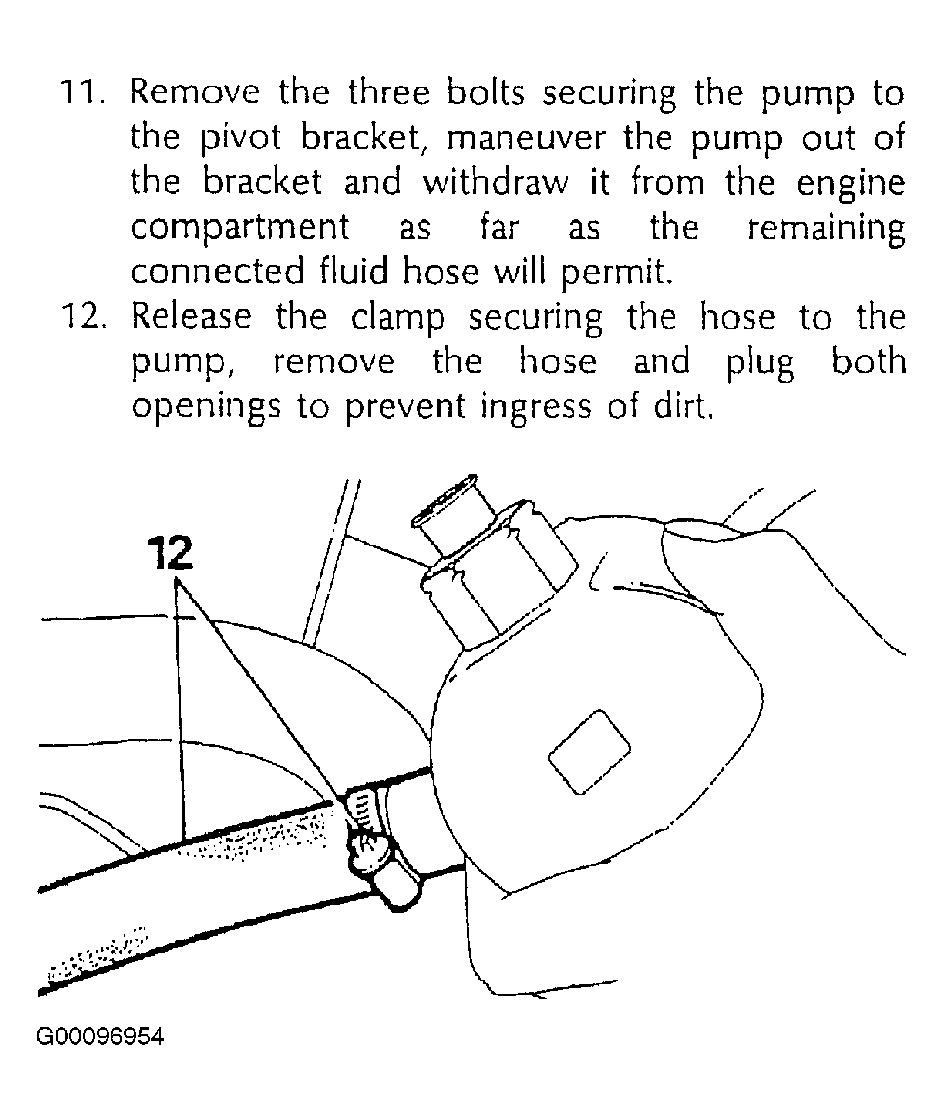

Fig 2: Removing Steering Pump (2 of 2)

G00096954

Courtesy of LAND ROVER NORTH AMERICA, INC.

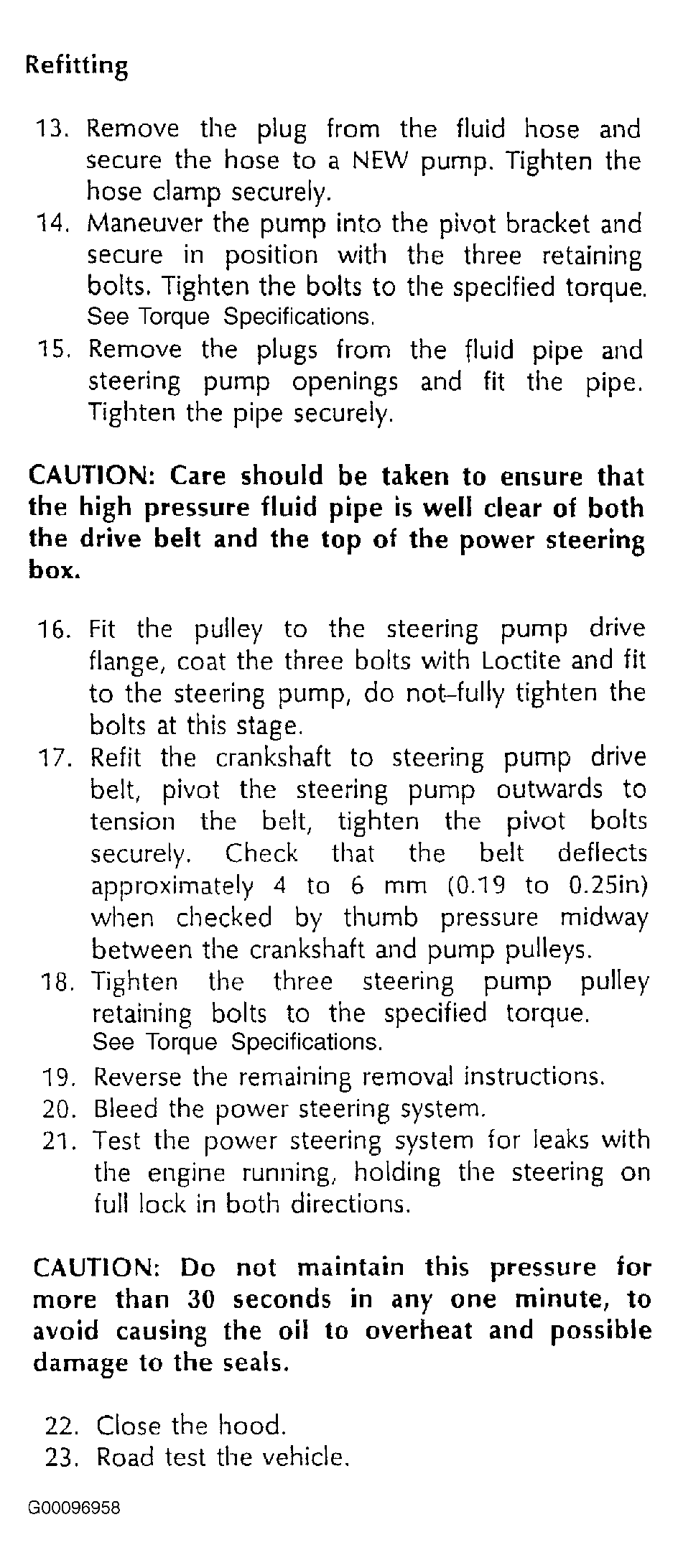

Fig 3: Installing Steering Pump

G00096958

Courtesy of LAND ROVER NORTH AMERICA, INC.
