Fuel Delivery System - 1.6L
>>
Delivery Pipe
>>
Components And Components Location
>>
Component Location
Component Location

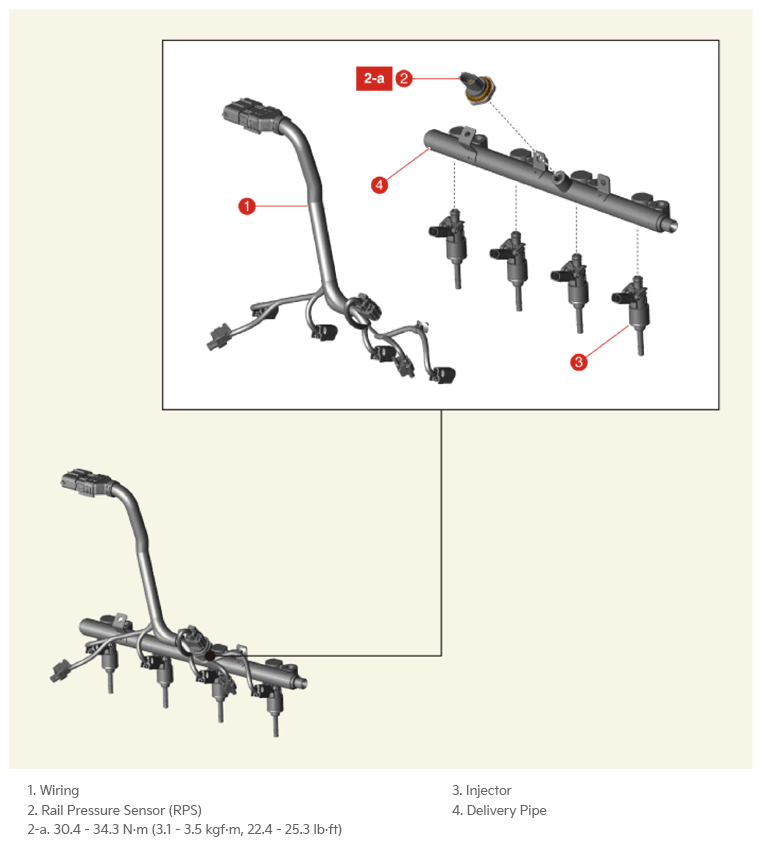

Fig 1: Delivery Pipe Components Location With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

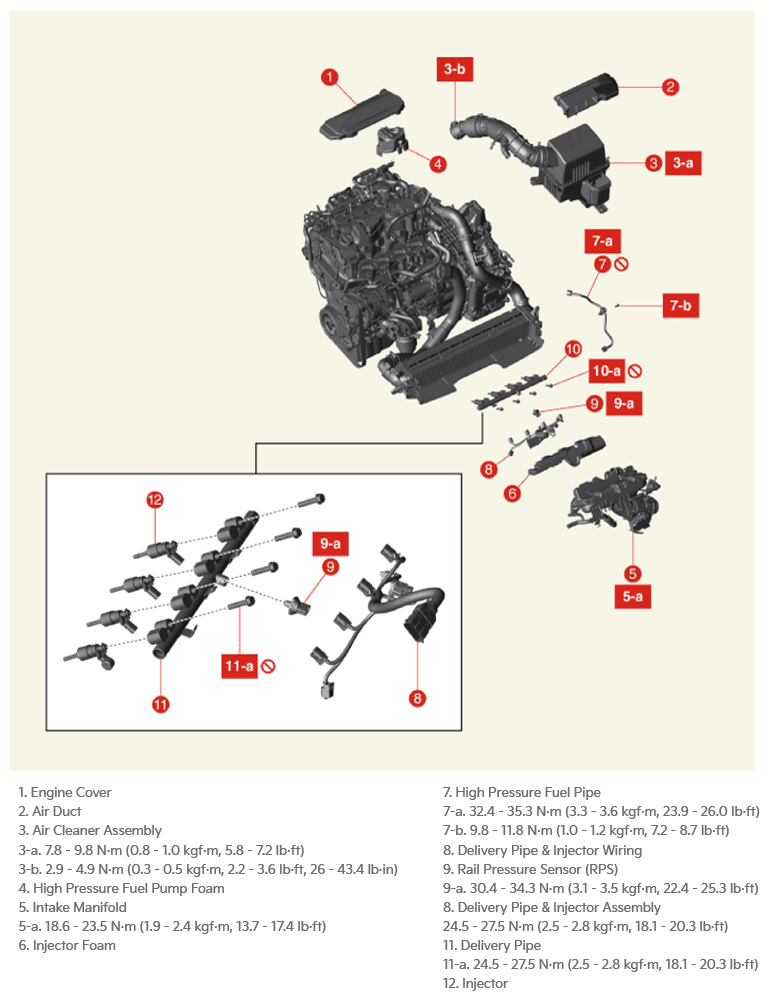

Fig 2: Delivery Pipe Components Location With Torque Specification (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
