Components And Components Location: Specification

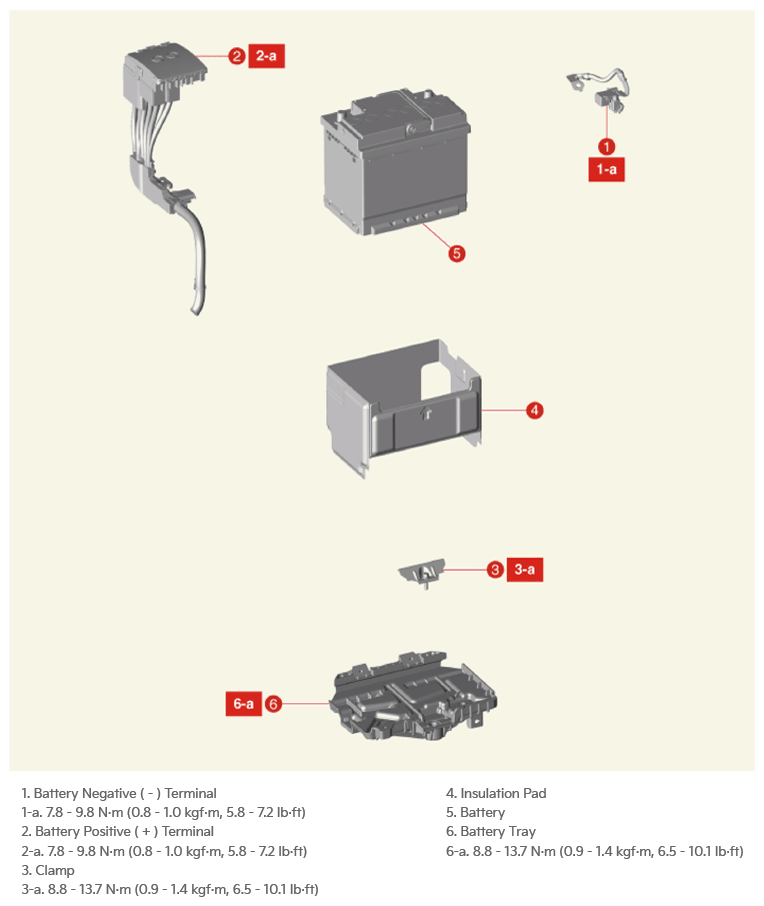

Fig 1: Battery Components Location With Torque Specifications

G16426926

Courtesy of KIA MOTORS AMERICA, INC.
