Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

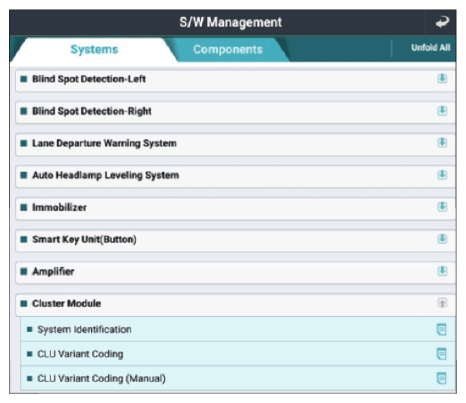

G15728145Courtesy of KIA MOTORS AMERICA, INC.

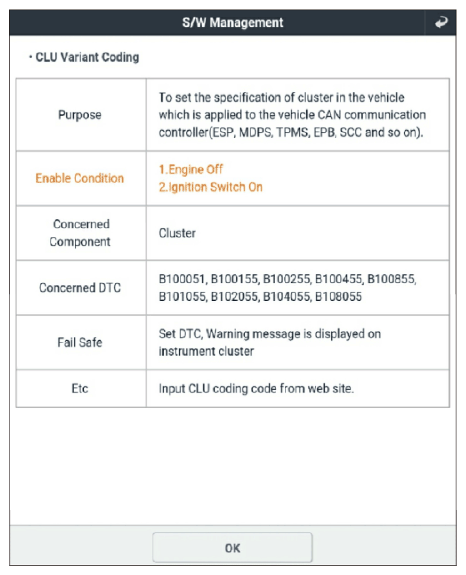

G15728146Courtesy of KIA MOTORS AMERICA, INC.

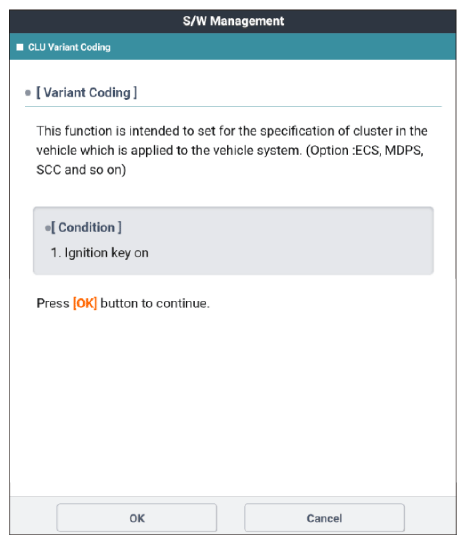

G15728147Courtesy of KIA MOTORS AMERICA, INC.

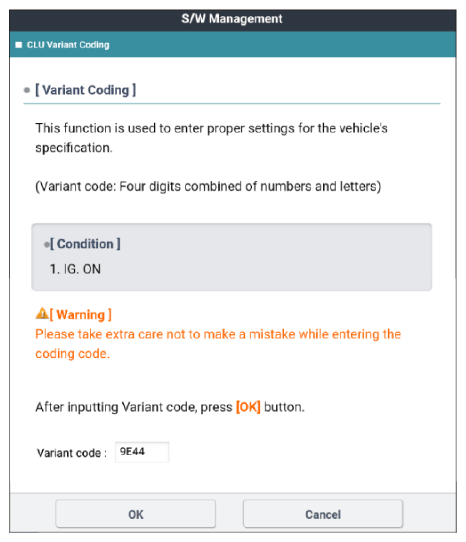

G15728148Courtesy of KIA MOTORS AMERICA, INC.

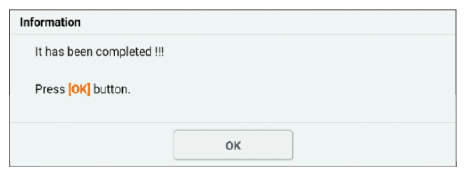

G15728149Courtesy of KIA MOTORS AMERICA, INC.

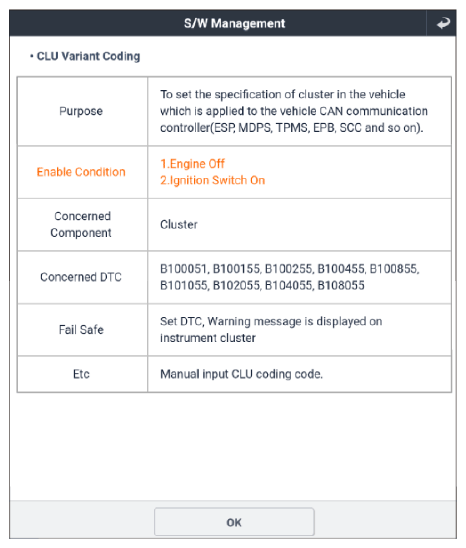

G15728150Courtesy of KIA MOTORS AMERICA, INC.

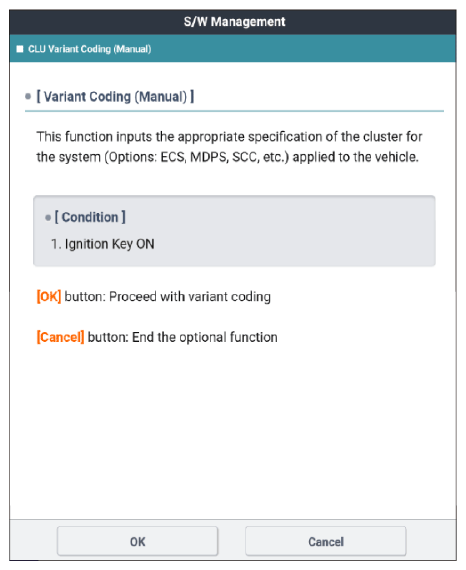

G15728151Courtesy of KIA MOTORS AMERICA, INC.

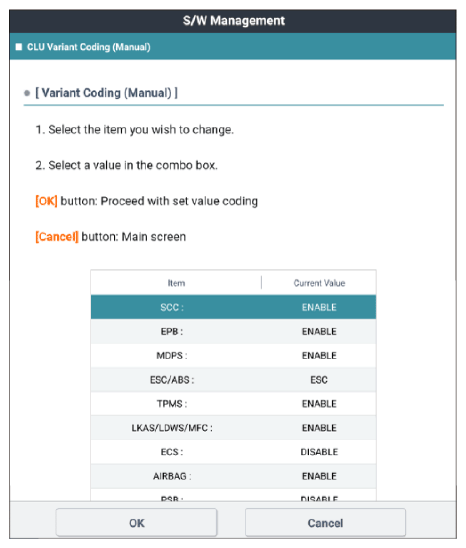

G15728152Courtesy of KIA MOTORS AMERICA, INC.

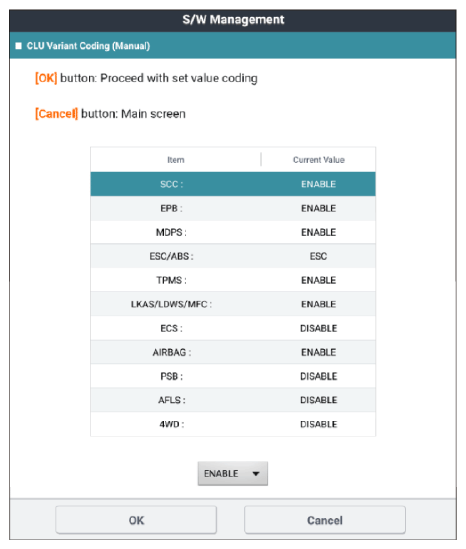

G15728153Courtesy of KIA MOTORS AMERICA, INC.

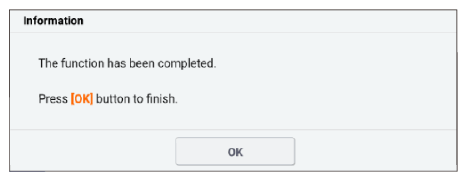

G15728154Courtesy of KIA MOTORS AMERICA, INC.
