Drive Airbag (DAB) Module And Clock Spring: Installation
- Set the clock spring in neutral position before assembling into the vehicle.
- When the vehicle comes out of the factory, the clock spring is in a neutral state.
- If the white cable is visible through the 7 o'clock neutral window of the vehicle, the clock spring is in neutral state.
- If the white cable is not visible when checking through the 7 o'clock neutral window of the vehicle, adjust the setting to neutral manually.

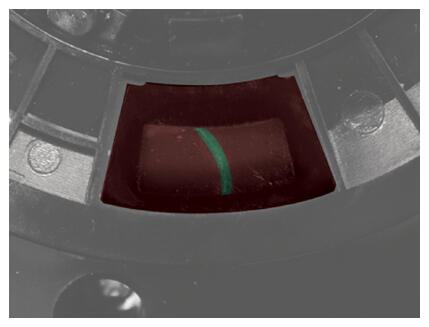

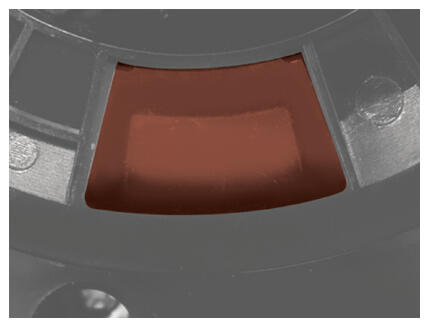

NOTE: If the clock spring is not set in neutral state, electric malfunctions such as airbag warning lamp on, horn, hands-free, auto cruise, heated wiring and heated steering, and noise from turning the steering may result.Neutral Check Window: Normal Neutral Check Window: Fault The white cable is visible through 7 O' Clock Neutral Check Window. The white cable is not visible through 7 O' Clock Neutral Check Window. - Clock spring manual neutral setting procedure.

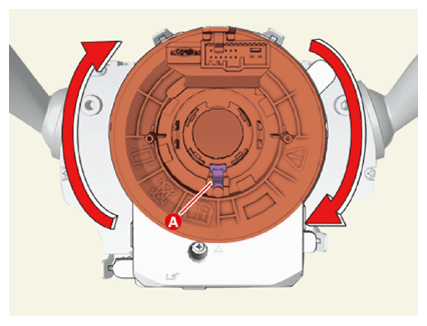

- Press the Auto Lock (A) at 6 o'clock and turn clockwise until the Auto Lock (A) stops.

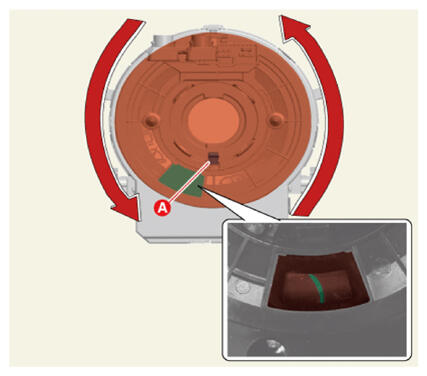

- Press the 6 o'clock auto lock (A) and turn three times counterclockwise.
- If the white cable is visible through the 7 o'clock neutral window of the vehicle, the clock spring is in neutral state.
- Press the Auto Lock (A) at 6 o'clock and turn clockwise until the Auto Lock (A) stops.
- Connect the clock spring wiring harness connector and horn wiring harness connector to the clock spring.
- Tighten the screw after installing the steering column shroud.
- Install the steering wheel.
(Refer to Steering System - " STEERING WHEEL REMOVAL & INSTALLATION ")
- Install the airbag module.
- When assembling the DAB module to the wheel, make sure that the airbag wire is not caught in the wheel's internal structure.
- Assemble the airbag wire while pressing it toward the center of the module.
- After installing the airbag module, check if the airbag system and horn operates normally.
NOTE:
When IG is ON, the SRS indicator light should turn off after turning on for about 6 seconds.
