Components And Components Location: Components

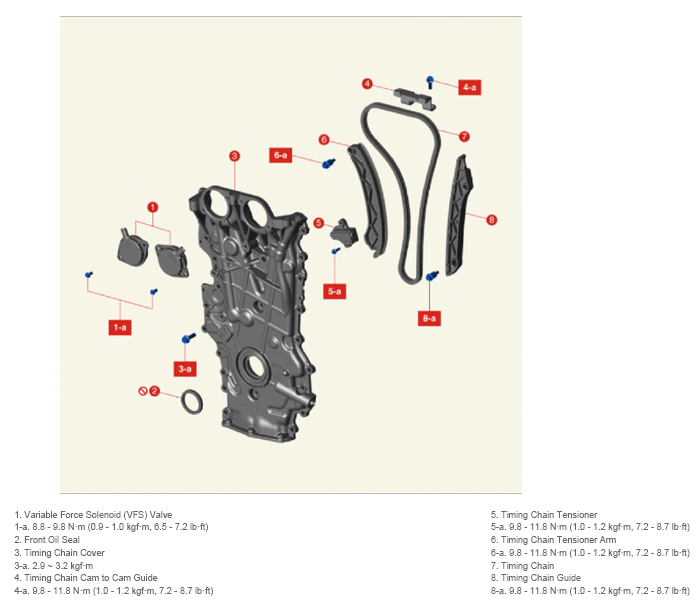

Fig 1: Timing Chain Cover Components Location With Torque Specifications

G15786970

Courtesy of KIA MOTORS AMERICA, INC.
