Home >> Kia >> 2024 >> Niro Plug-In Hybrid EX >> Repair and Diagnosis >> Electrical >> Gauges >> Cluster Module Diagnosis (PHEV) >> DTC B1010-55: ESC Present Error - Coding Code Error >> System Inspection >> Vehicle S/W Management

Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5 below

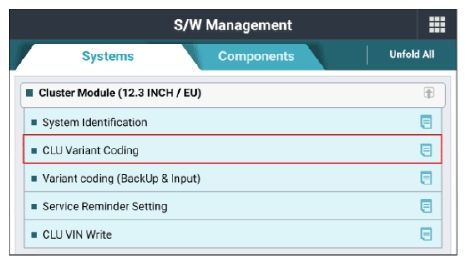

G15804178Courtesy of KIA MOTORS AMERICA, INC.

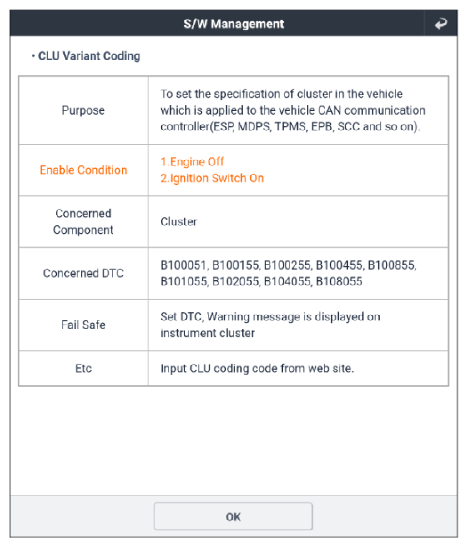

G15804179Courtesy of KIA MOTORS AMERICA, INC.

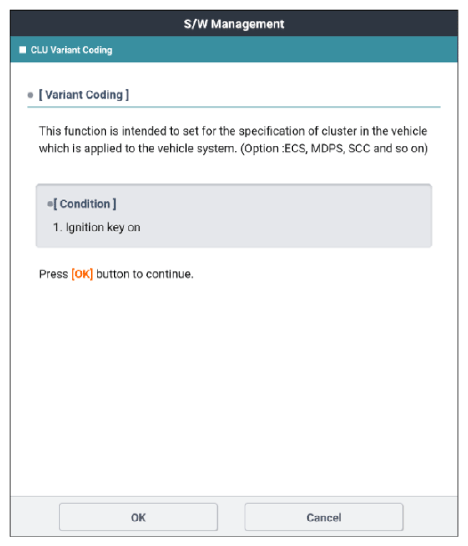

G15804180Courtesy of KIA MOTORS AMERICA, INC.

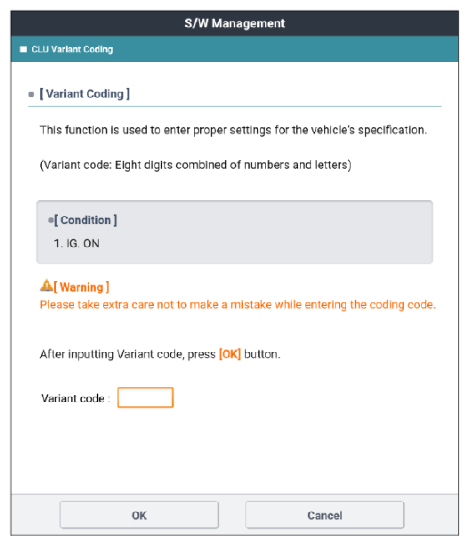

G15804181Courtesy of KIA MOTORS AMERICA, INC.

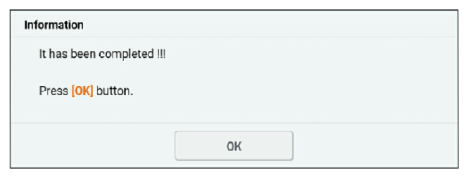

G15804182Courtesy of KIA MOTORS AMERICA, INC.
