Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5 below

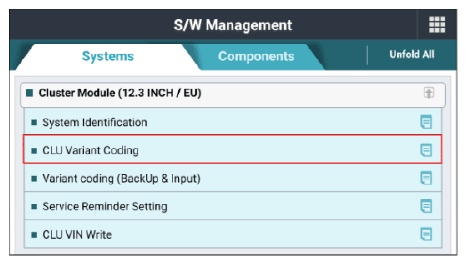

G15804046Courtesy of KIA MOTORS AMERICA, INC.

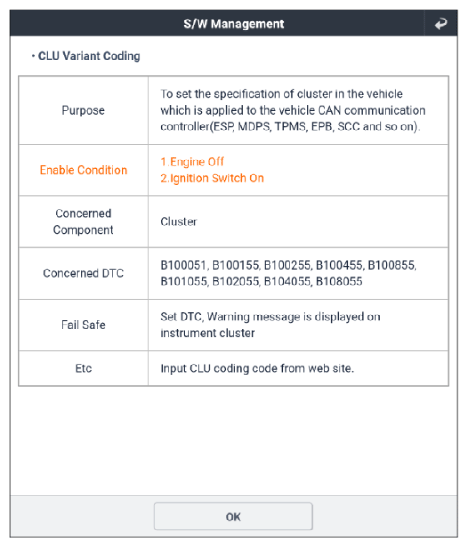

G15804047Courtesy of KIA MOTORS AMERICA, INC.

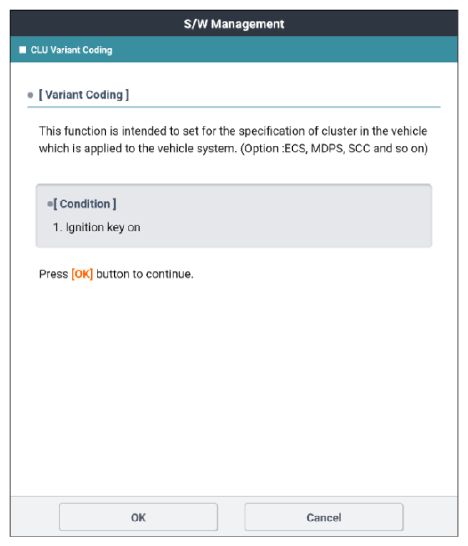

G15804048Courtesy of KIA MOTORS AMERICA, INC.

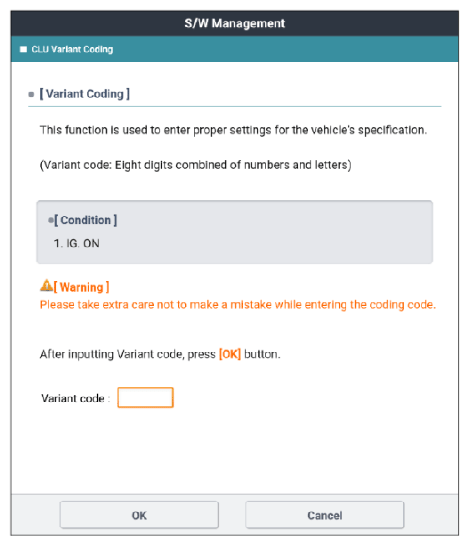

G15804049Courtesy of KIA MOTORS AMERICA, INC.

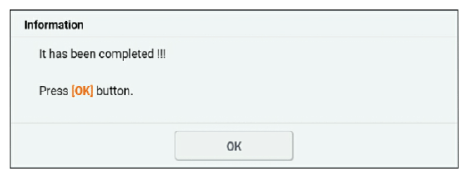

G15804050Courtesy of KIA MOTORS AMERICA, INC.
