Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5 below

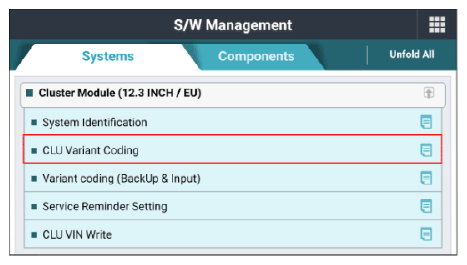

G15804002Courtesy of KIA MOTORS AMERICA, INC.

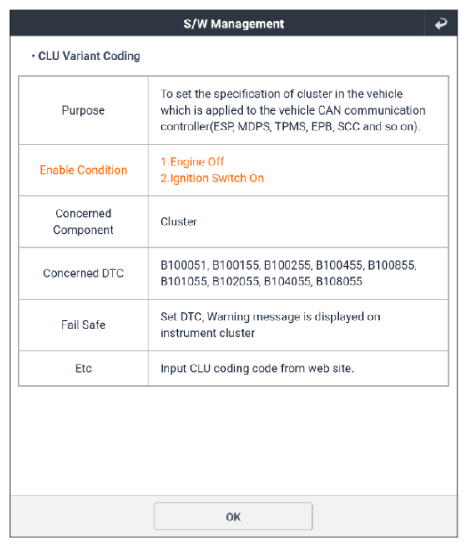

G15804003Courtesy of KIA MOTORS AMERICA, INC.

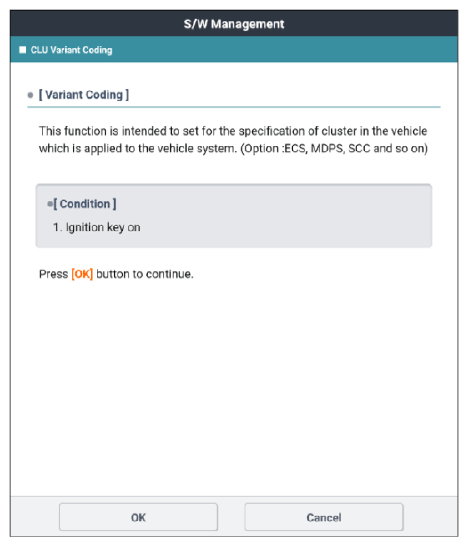

G15804004Courtesy of KIA MOTORS AMERICA, INC.

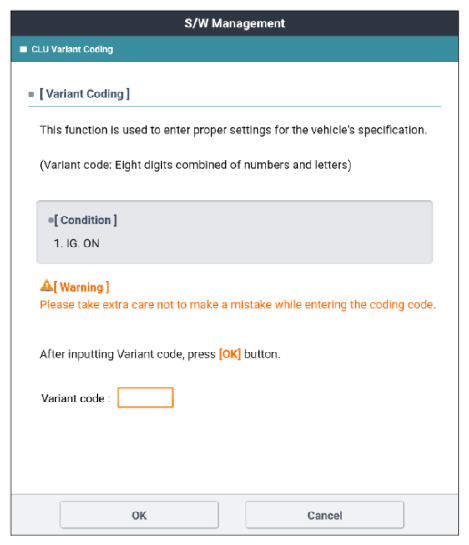

G15804005Courtesy of KIA MOTORS AMERICA, INC.

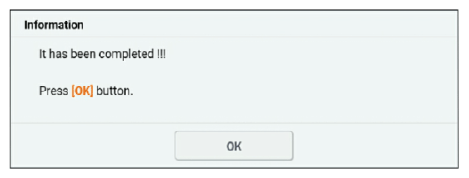

G15804006Courtesy of KIA MOTORS AMERICA, INC.
