Smart Key Unit: Inspection: Buzzer

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

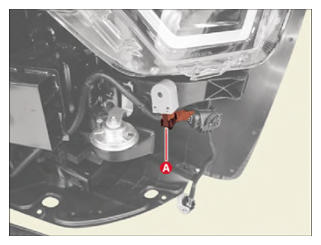

  2. Disconnect the buzzer connector (A).
    G15773256Courtesy of KIA MOTORS AMERICA, INC.

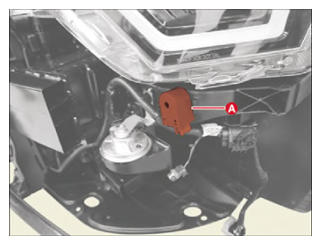

  3. Remove the buzzer (A).
    G15773257Courtesy of KIA MOTORS AMERICA, INC.

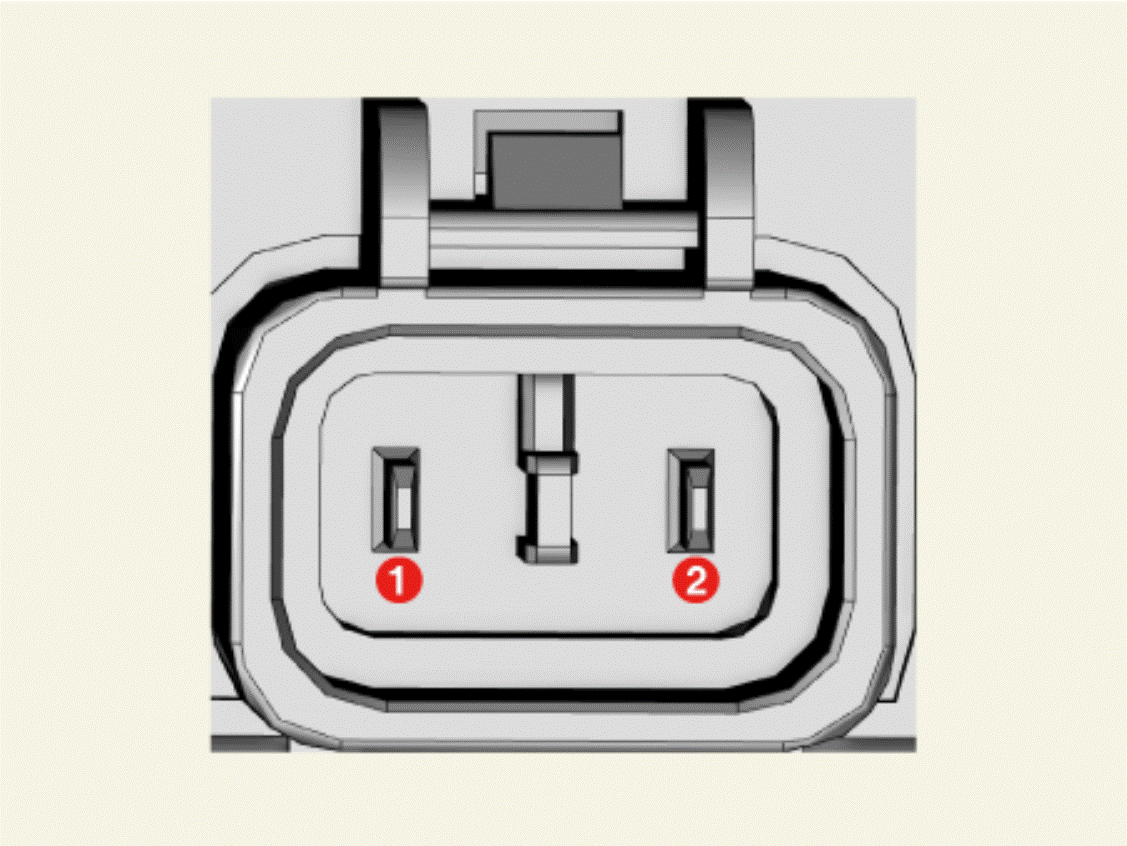

  4. Check for continuity between the terminals.
    G15773258Courtesy of KIA MOTORS AMERICA, INC.
