Home >> Kia >> 2024 >> Niro EV Wave >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Components And Components Location >> Component

Components And Components Location: Component

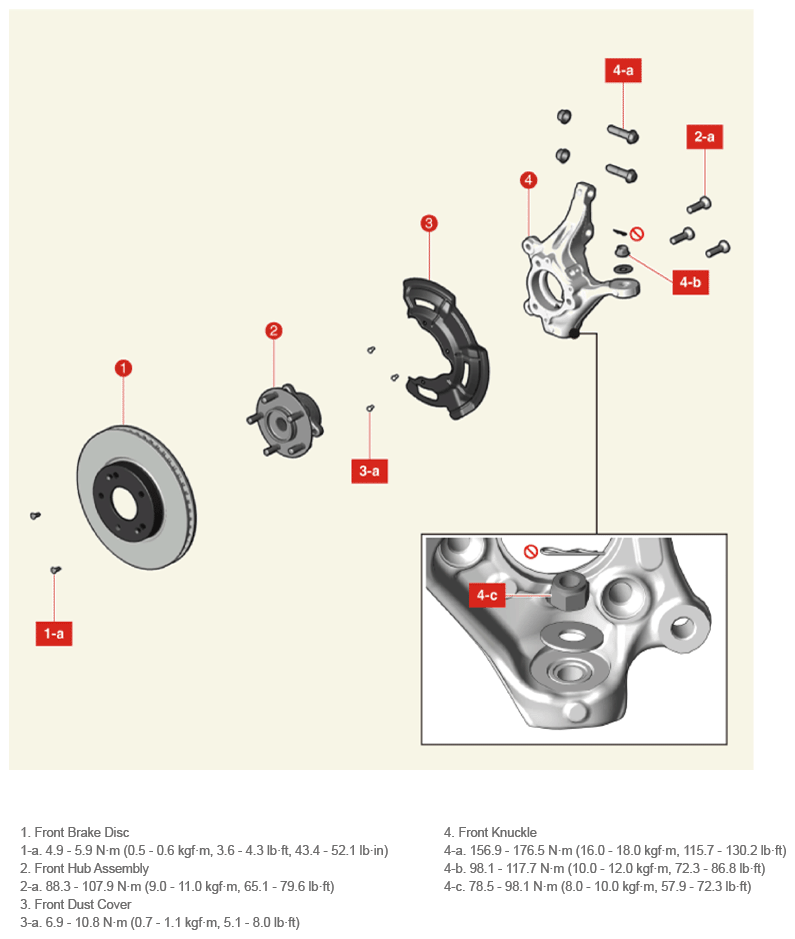

Fig 1: Front Axle Assembly Components Location With Torque Specification

G15896025

Courtesy of KIA MOTORS AMERICA, INC.
