Components And Components Location: Component

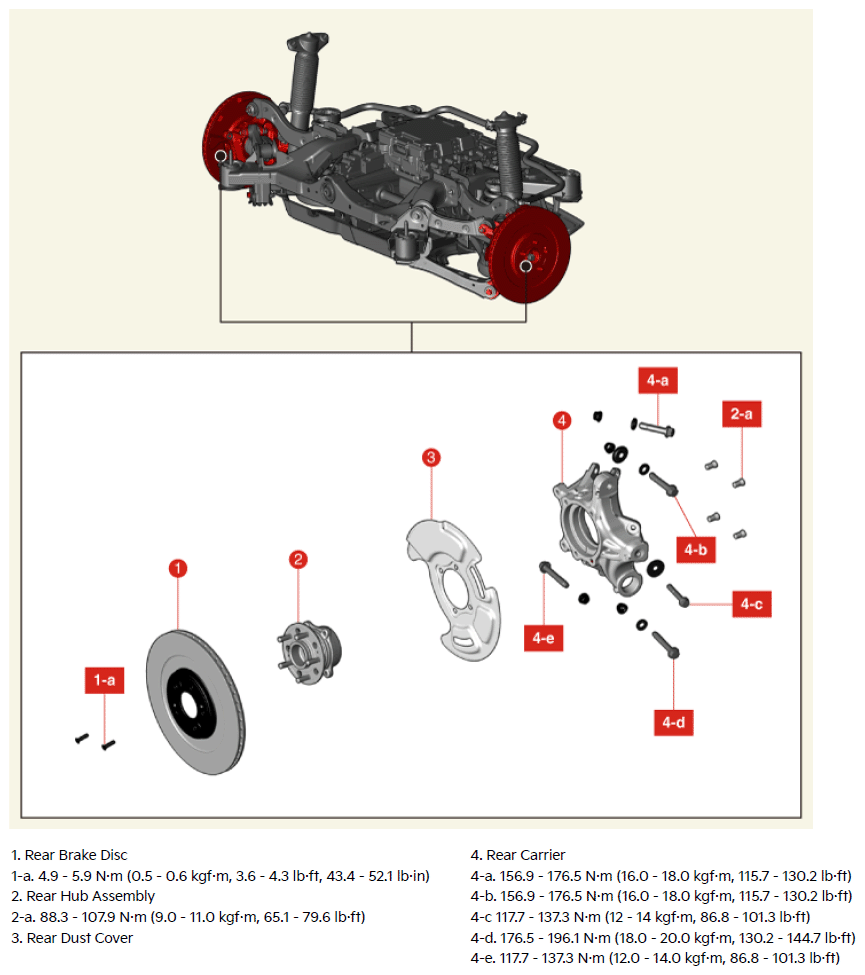

Fig 1: Rear Axle Assembly Components Location With Torque Specifications

G16893805

Courtesy of KIA MOTORS AMERICA, INC.
