Home >> Kia >> 2024 >> Carnival EX >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Removal & Installation >> Removal >> Power Window Rear Switch

Power Window Rear Switch

  1. Disconnect the battery negative (-) terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

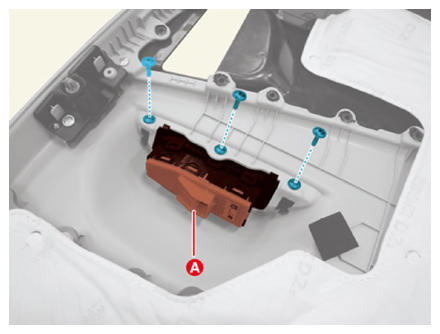

  3. Remove the power window rear switch (A).
G14806483Courtesy of KIA MOTORS AMERICA, INC.

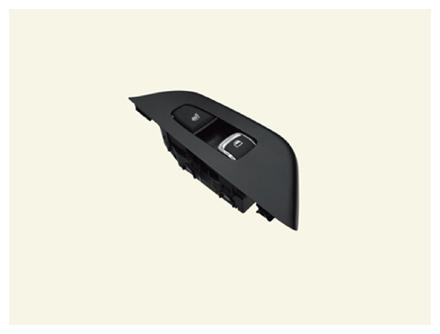

G14806484Courtesy of KIA MOTORS AMERICA, INC.
