Repair Procedures: Replacement

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")
Remove the front door outside handle.
(Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

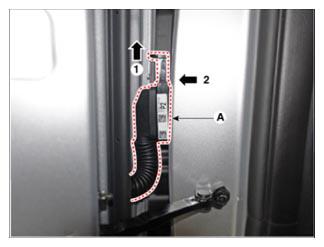

Disconnect the front door main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

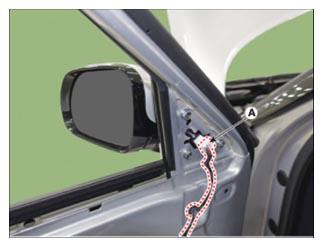

Disconnect the outside rear view mirror connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

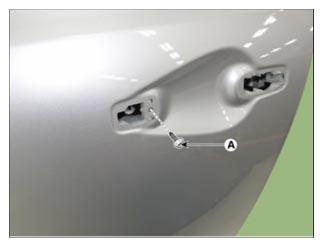

Loosen the front outside handle base mounting bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

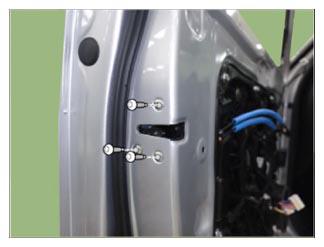

Loosen the front door latch mounting screws.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 Kgf.m, 5.0 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

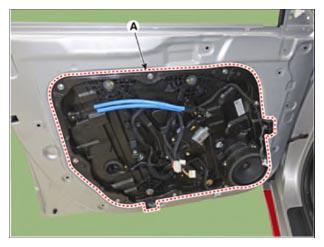

Loosen the mounting bolts and remove the front door module (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

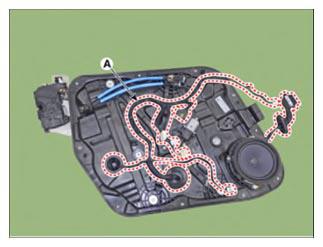

Disconnect the connectors and front door module wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door latch assembly.
(Refer to Front Door - "FRONT DOOR LATCH ")
Remove the front door speaker
(Refer to Body Electrical System - "SPEAKER ")
Remove the front power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
To install, reverse removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
