Repair Procedures: Inspection
WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

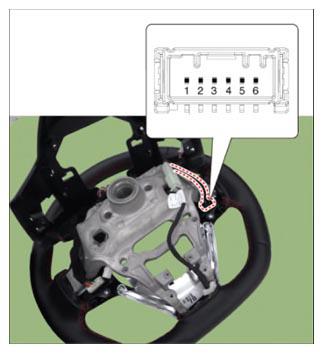

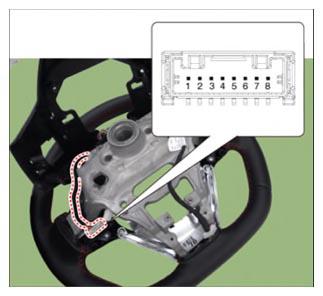

- Check for resistance between terminals in each switch position.
[Audio + Bluetooth + Voice]
Switch Connector terminal Resistance (±3%) SEEK Up 2-5 430 Ω SEEK Down 1.11 KΩ MODE 2.11 KΩ MUTE 3.11 KΩ Volume (+) 4.61 KΩ Volume (-) 6.81 KΩ Voice 10.71 KΩ END 18.91 KΩ SEND 40.91 KΩ [Cruise + Trip + SLD]
Switch Connector terminal Resistance (±3%) Cancel 2-6 610 Ω SET - 910 Ω RES + 1.38 KΩ Cruise ON/OFF 2.13 KΩ Cruise & Speed Limit ON/OFF 3.63 KΩ SCC (Following distance control) 7.93 KΩ Trip group 1-6 610 Ω Trip up 910 Ω Trip down 1.38 KΩ Trip ok/Reset 2.13 KΩ
