Repair Procedures: Replacement

WARNING: This page is about a different car, the 2025 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery (-) terminal.

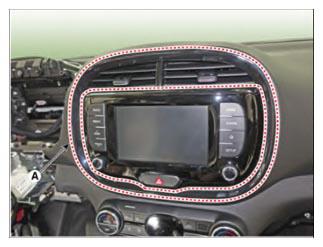

  2. Using a screwdriver or remover, remove the center facial panel (A).
    G15717269Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the audio and AVN head unit.

    (Refer to Body Electrical System - "AUDIO/AVN HEAD UNIT ")

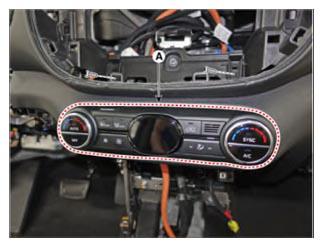

  4. After loosening the mounting screws, remove the A/C & heater controller unit (A).
    G15717270Courtesy of KIA MOTORS AMERICA, INC.

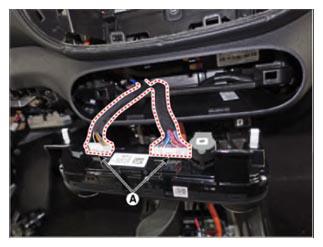

  5. Disconnect the A/C & heater controller connectors (A).
    G15717271Courtesy of KIA MOTORS AMERICA, INC.

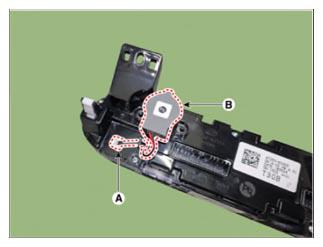

  6. Press the lock pin to separate the connector (A) and remove the in-car sensor (B).
    G15717272Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in reverse order of removal.
    NOTE:
    • Reassemble the connector correctly.
    • Replace any damaged clips.
