Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

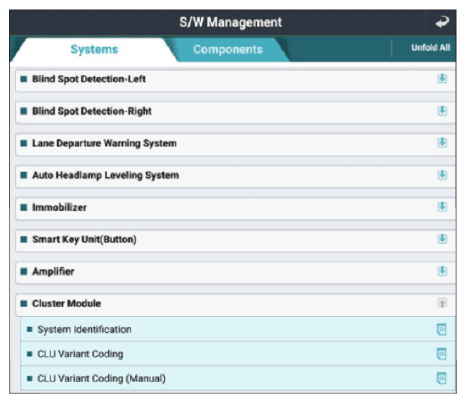

G15728509Courtesy of KIA MOTORS AMERICA, INC.

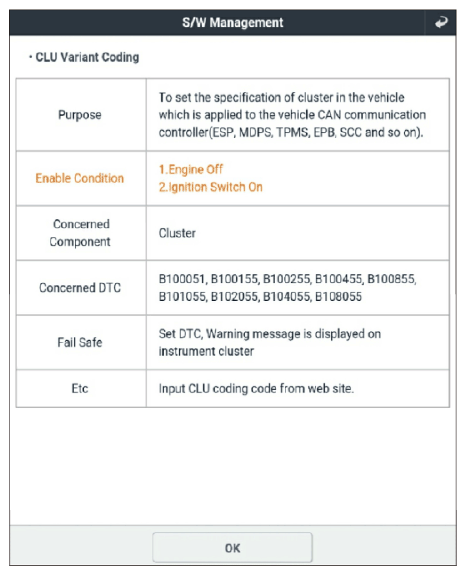

G15728510Courtesy of KIA MOTORS AMERICA, INC.

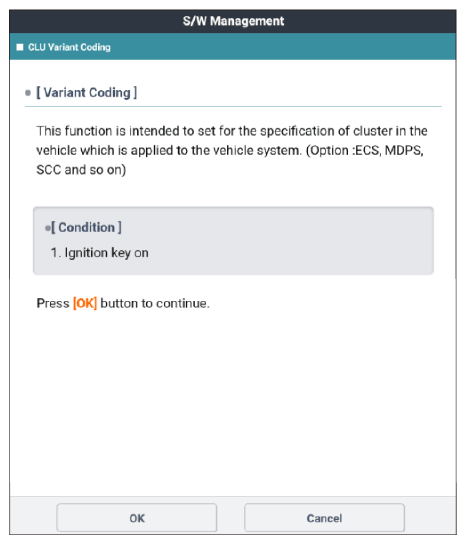

G15728511Courtesy of KIA MOTORS AMERICA, INC.

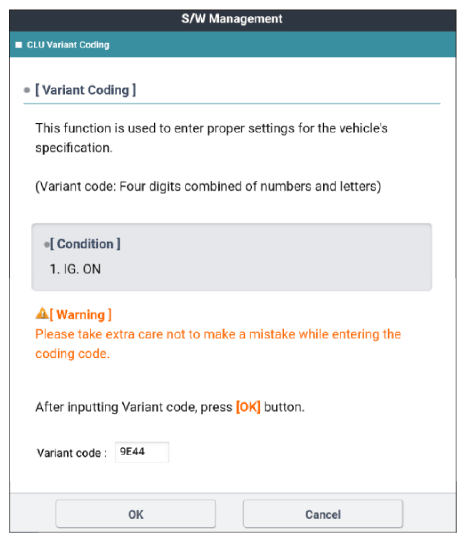

G15728512Courtesy of KIA MOTORS AMERICA, INC.
G15728513Courtesy of KIA MOTORS AMERICA, INC.

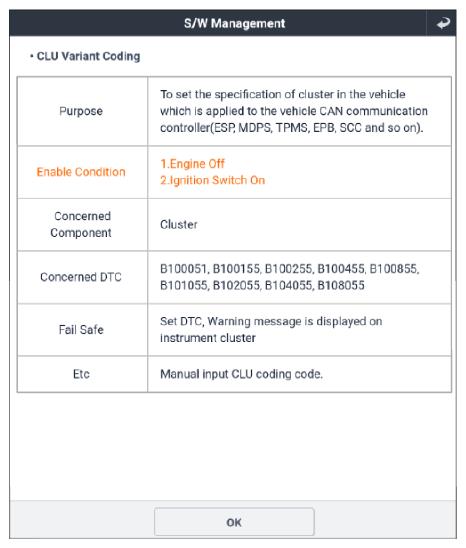

G15728514Courtesy of KIA MOTORS AMERICA, INC.

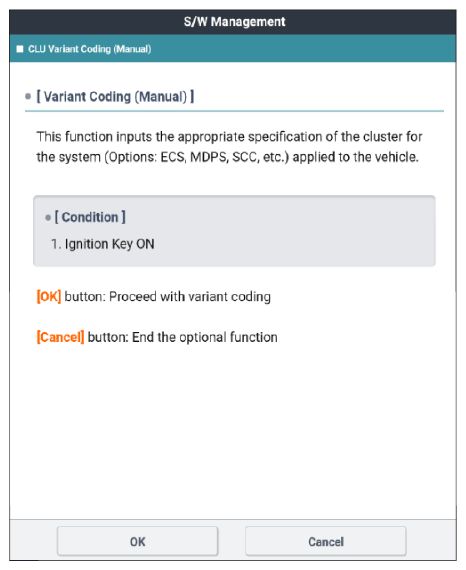

G15728515Courtesy of KIA MOTORS AMERICA, INC.

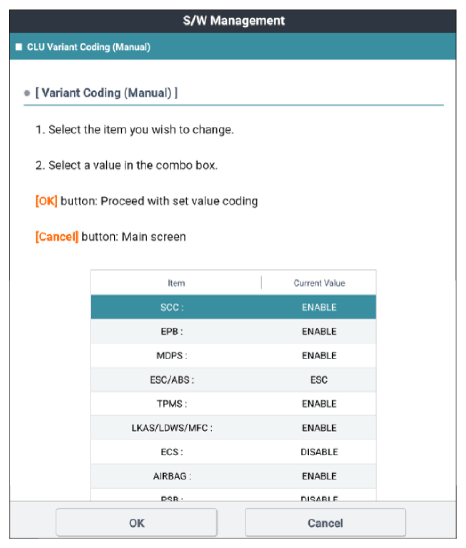

G15728516Courtesy of KIA MOTORS AMERICA, INC.

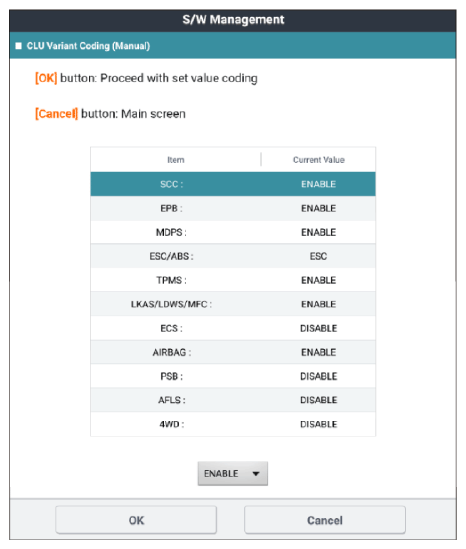

G15728517Courtesy of KIA MOTORS AMERICA, INC.
G15728518Courtesy of KIA MOTORS AMERICA, INC.
