Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

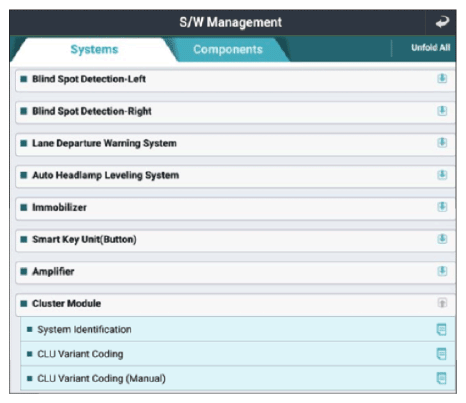

G15728337Courtesy of KIA MOTORS AMERICA, INC.

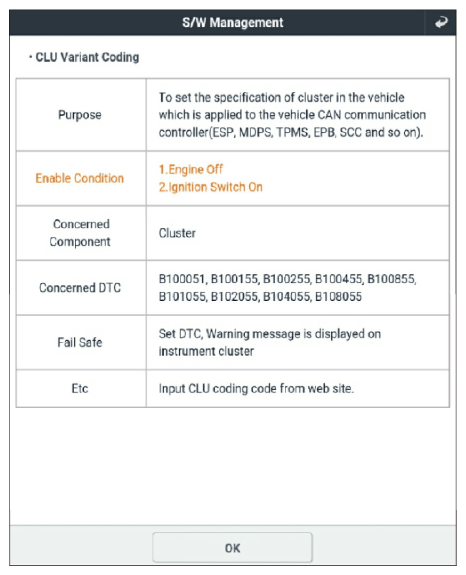

G15728338Courtesy of KIA MOTORS AMERICA, INC.

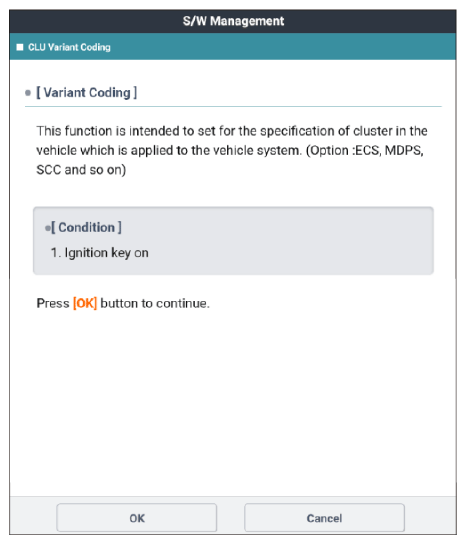

G15728339Courtesy of KIA MOTORS AMERICA, INC.

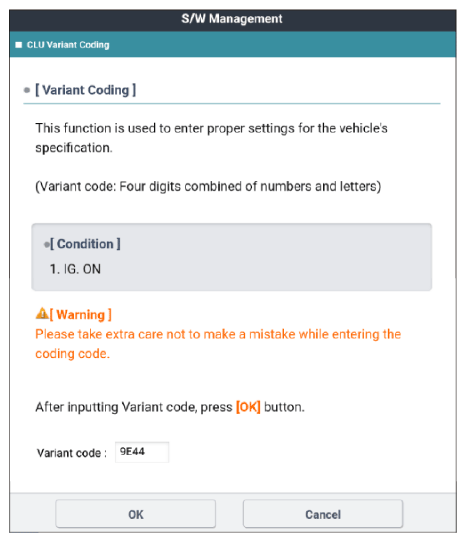

G15728340Courtesy of KIA MOTORS AMERICA, INC.
G15728341Courtesy of KIA MOTORS AMERICA, INC.

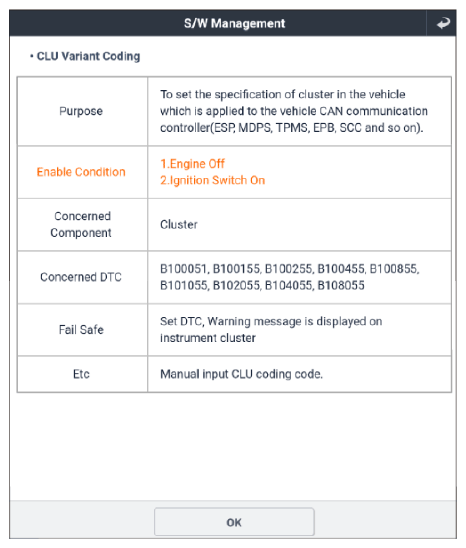

G15728342Courtesy of KIA MOTORS AMERICA, INC.

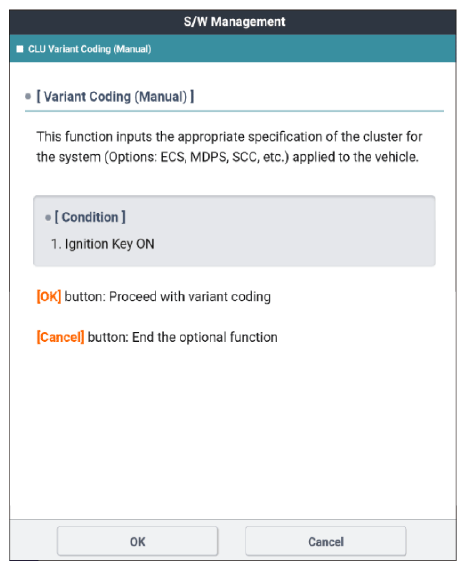

G15728343Courtesy of KIA MOTORS AMERICA, INC.

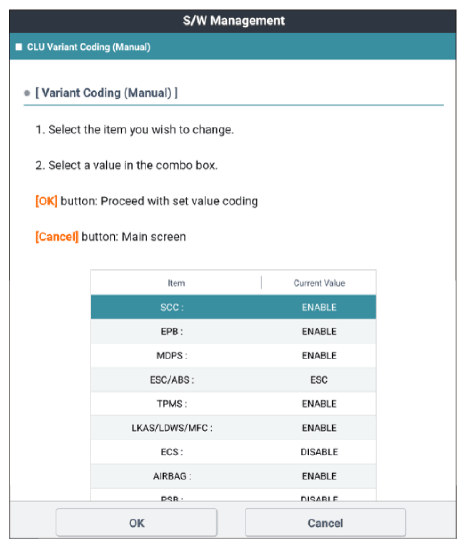

G15728344Courtesy of KIA MOTORS AMERICA, INC.

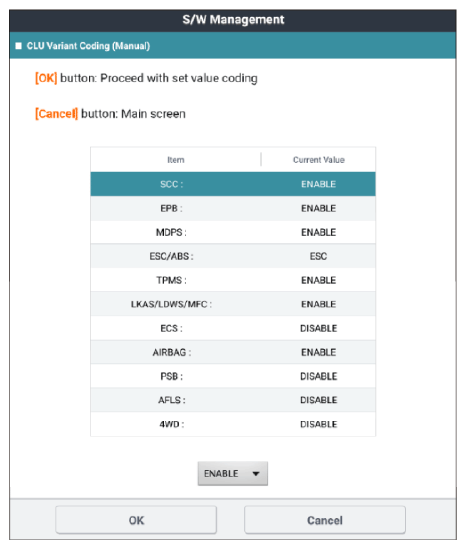

G15728345Courtesy of KIA MOTORS AMERICA, INC.
G15728346Courtesy of KIA MOTORS AMERICA, INC.
