Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

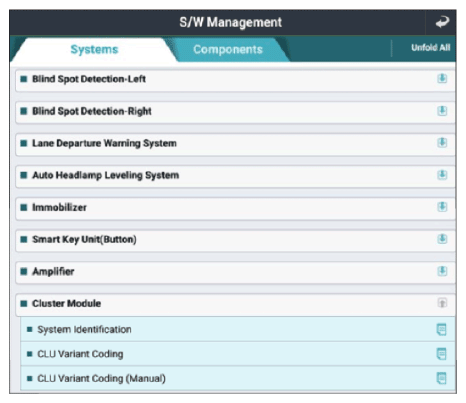

G15728313Courtesy of KIA MOTORS AMERICA, INC.

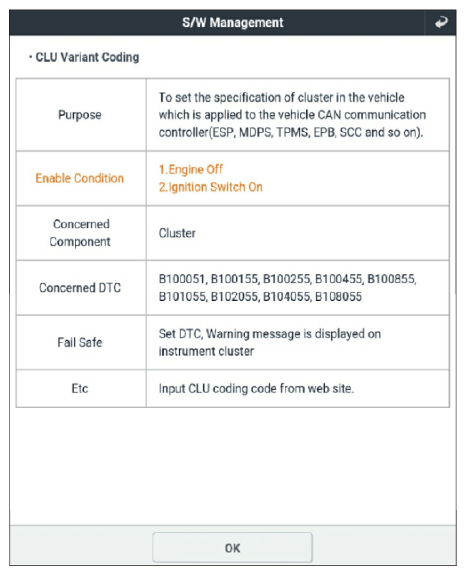

G15728314Courtesy of KIA MOTORS AMERICA, INC.

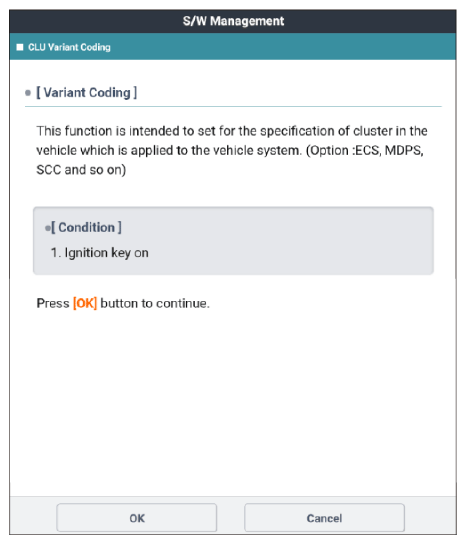

G15728315Courtesy of KIA MOTORS AMERICA, INC.

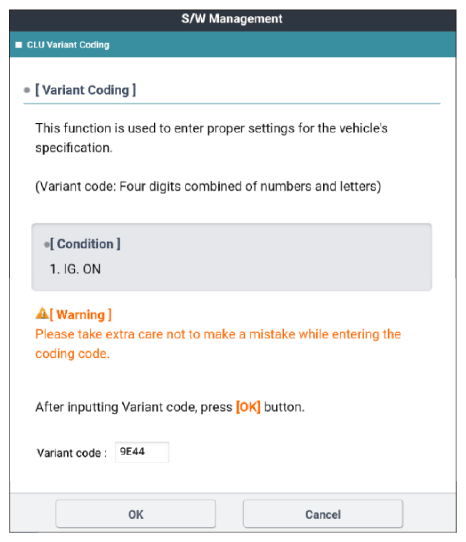

G15728316Courtesy of KIA MOTORS AMERICA, INC.
G15728317Courtesy of KIA MOTORS AMERICA, INC.

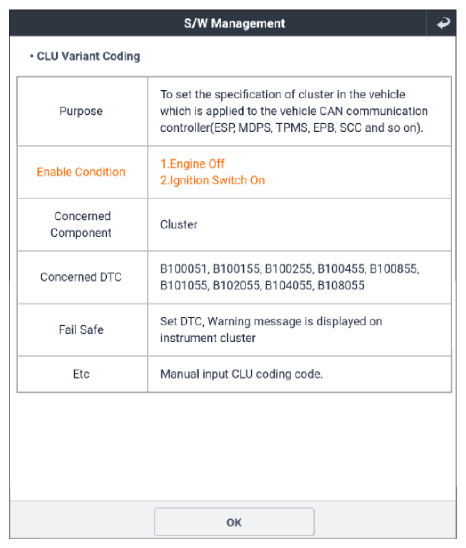

G15728318Courtesy of KIA MOTORS AMERICA, INC.

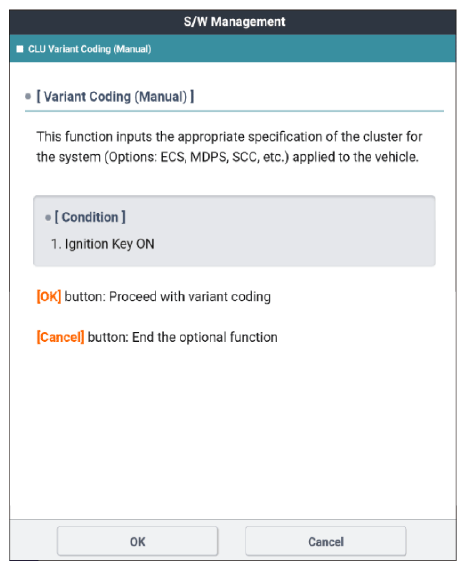

G15728319Courtesy of KIA MOTORS AMERICA, INC.

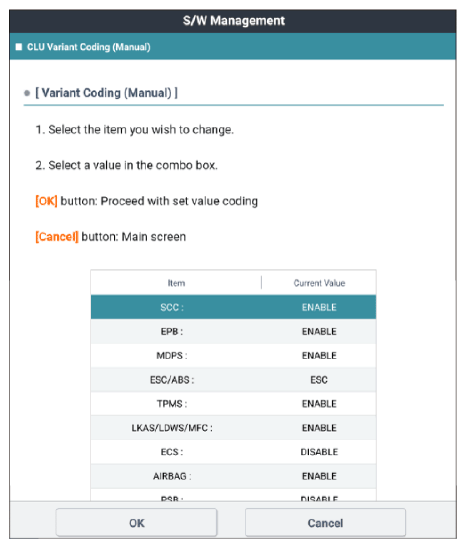

G15728320Courtesy of KIA MOTORS AMERICA, INC.

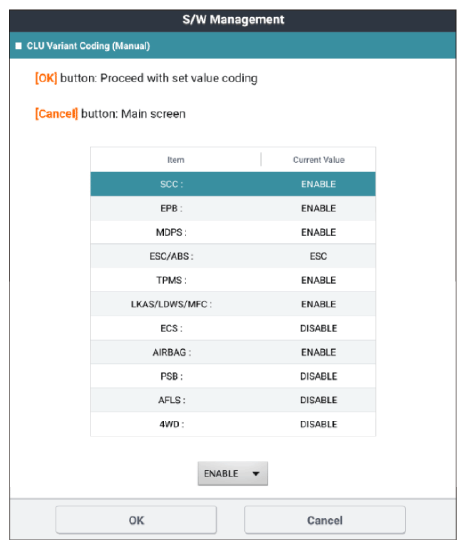

G15728321Courtesy of KIA MOTORS AMERICA, INC.
G15728322Courtesy of KIA MOTORS AMERICA, INC.
