Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

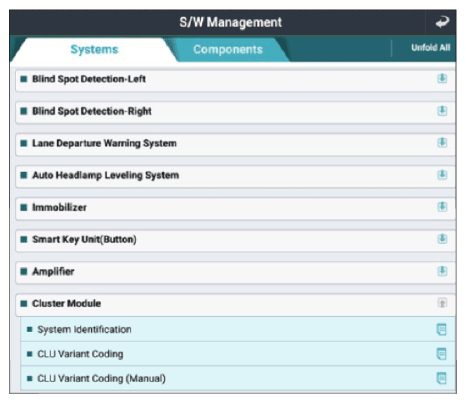

G15728289Courtesy of KIA MOTORS AMERICA, INC.

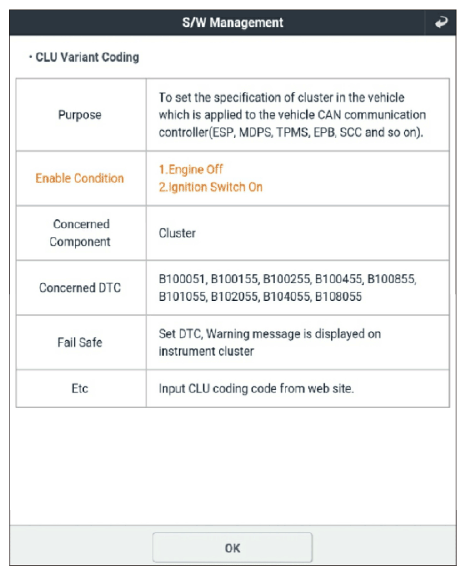

G15728290Courtesy of KIA MOTORS AMERICA, INC.

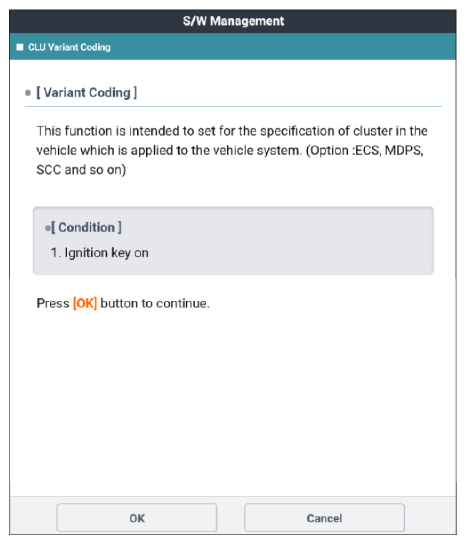

G15728291Courtesy of KIA MOTORS AMERICA, INC.

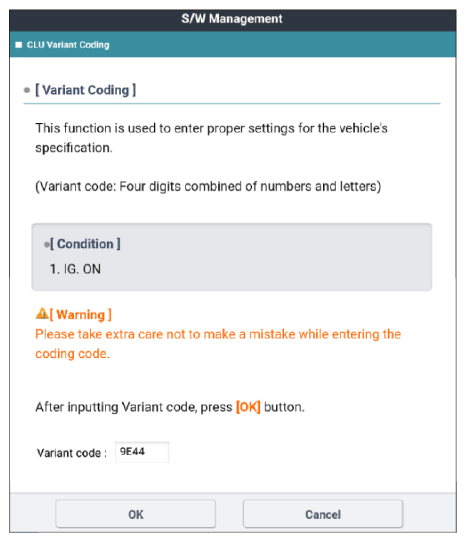

G15728292Courtesy of KIA MOTORS AMERICA, INC.

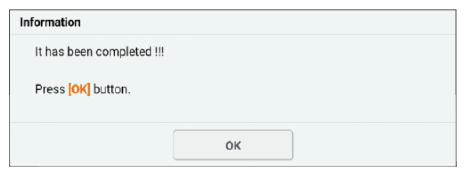

G15728293Courtesy of KIA MOTORS AMERICA, INC.

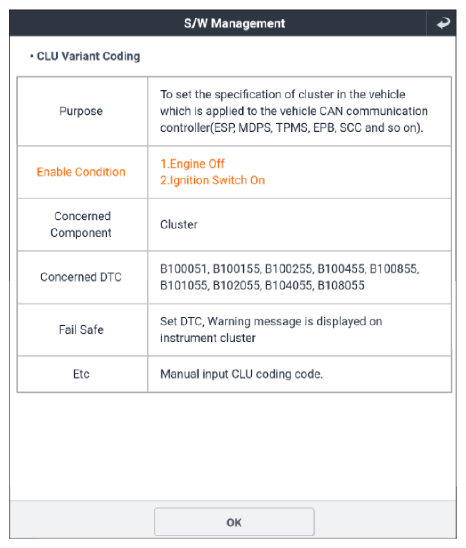

G15728294Courtesy of KIA MOTORS AMERICA, INC.

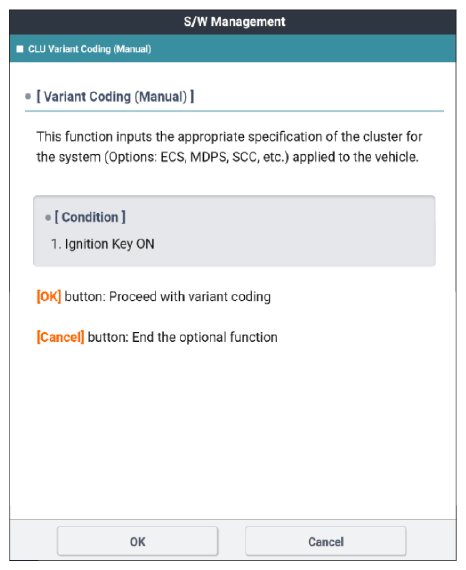

G15728295Courtesy of KIA MOTORS AMERICA, INC.

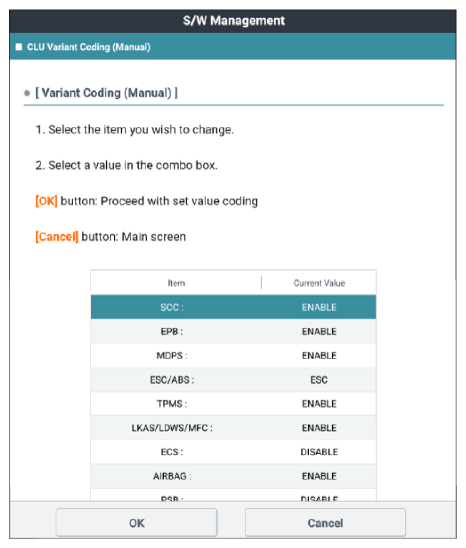

G15728296Courtesy of KIA MOTORS AMERICA, INC.

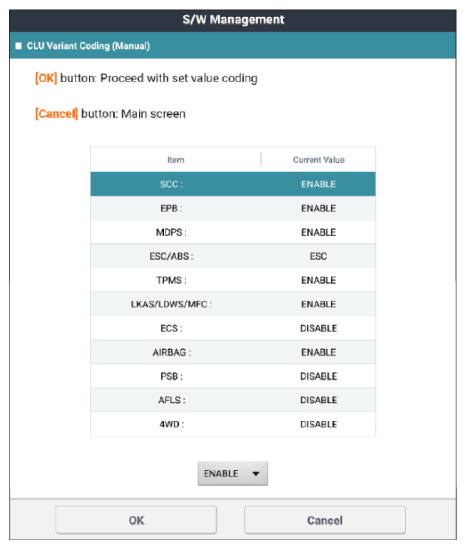

G15728297Courtesy of KIA MOTORS AMERICA, INC.

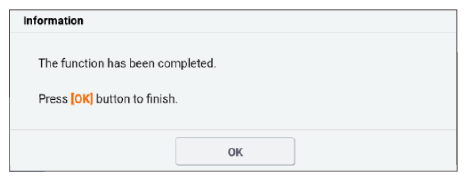

G15728298Courtesy of KIA MOTORS AMERICA, INC.
