Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

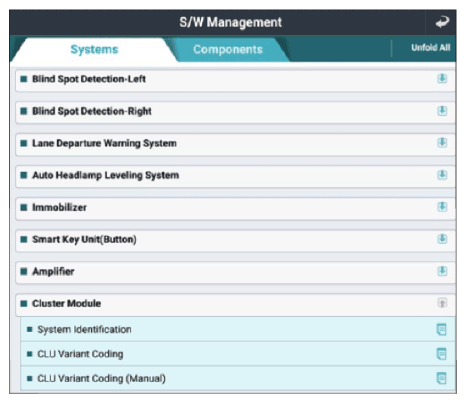

G15728259Courtesy of KIA MOTORS AMERICA, INC.

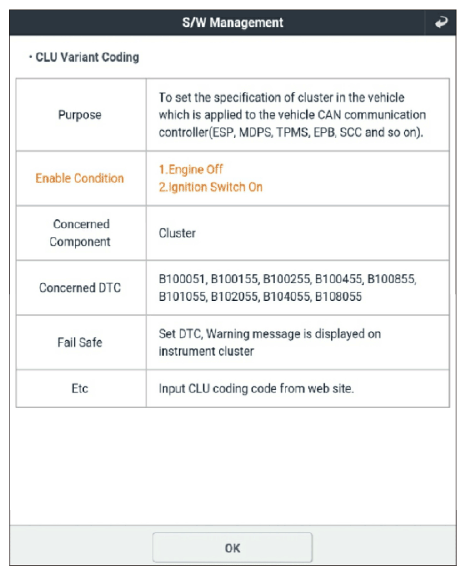

G15728260Courtesy of KIA MOTORS AMERICA, INC.

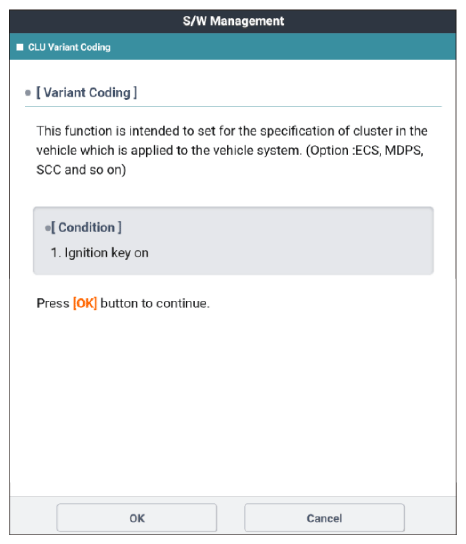

G15728261Courtesy of KIA MOTORS AMERICA, INC.

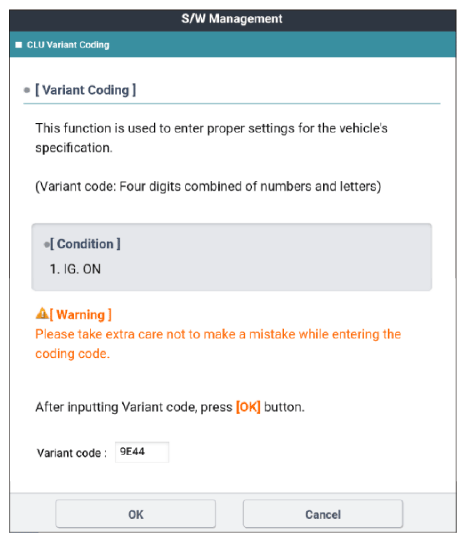

G15728262Courtesy of KIA MOTORS AMERICA, INC.
G15728263Courtesy of KIA MOTORS AMERICA, INC.

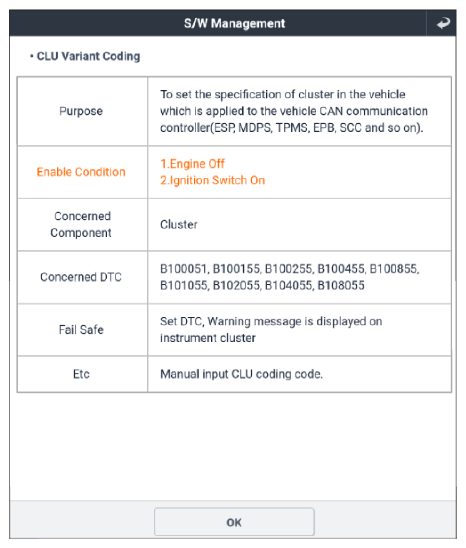

G15728264Courtesy of KIA MOTORS AMERICA, INC.

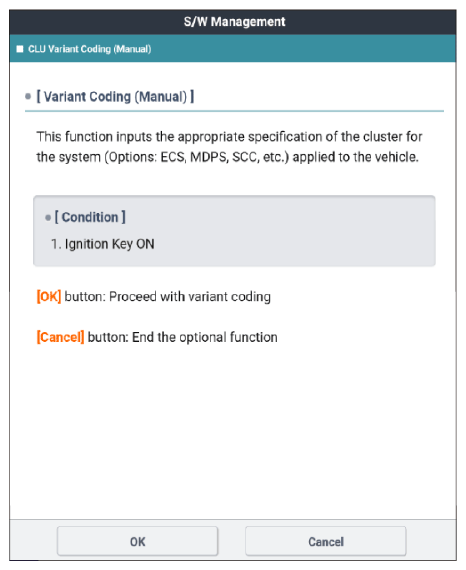

G15728265Courtesy of KIA MOTORS AMERICA, INC.

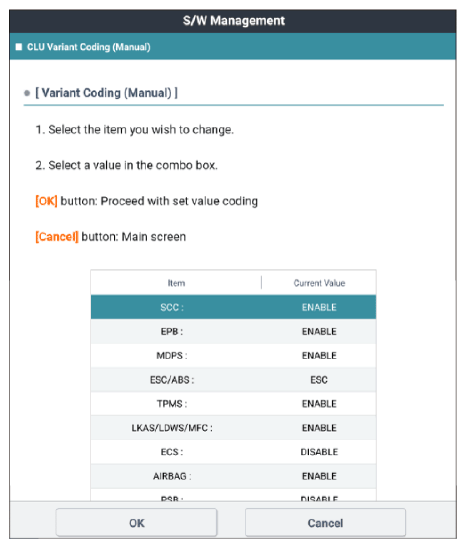

G15728266Courtesy of KIA MOTORS AMERICA, INC.

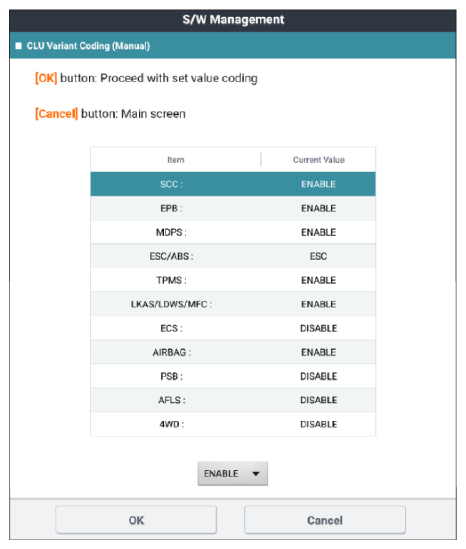

G15728267Courtesy of KIA MOTORS AMERICA, INC.
G15728268Courtesy of KIA MOTORS AMERICA, INC.
