Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

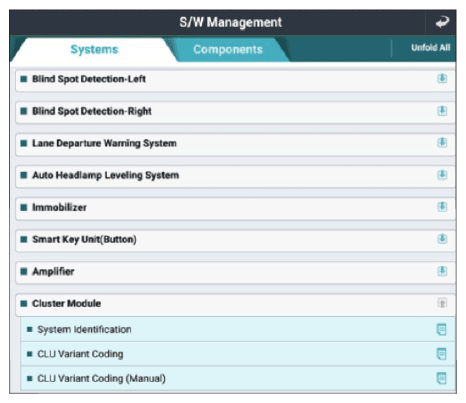

G15728175Courtesy of KIA MOTORS AMERICA, INC.

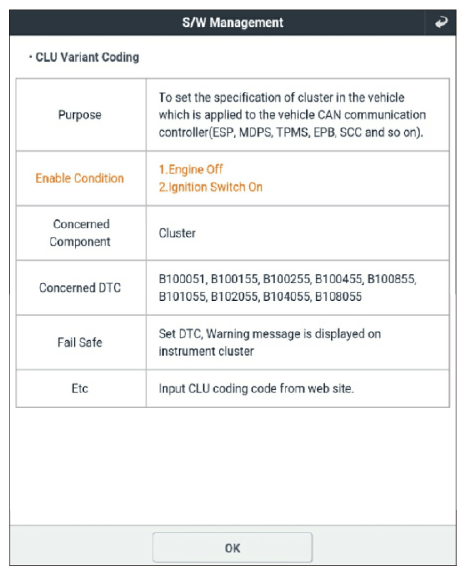

G15728176Courtesy of KIA MOTORS AMERICA, INC.

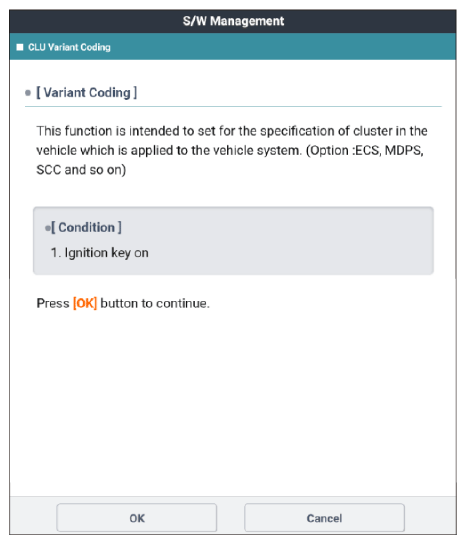

G15728177Courtesy of KIA MOTORS AMERICA, INC.

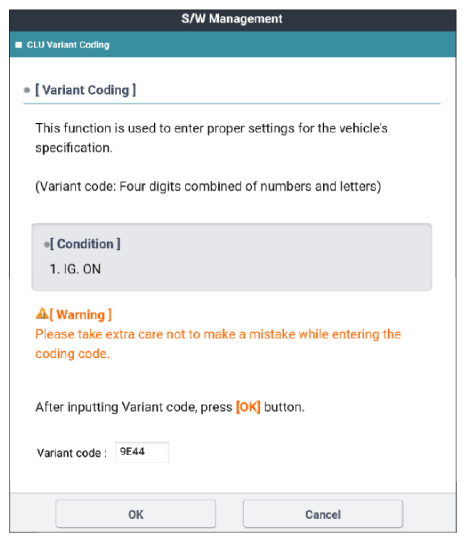

G15728178Courtesy of KIA MOTORS AMERICA, INC.
G15728179Courtesy of KIA MOTORS AMERICA, INC.

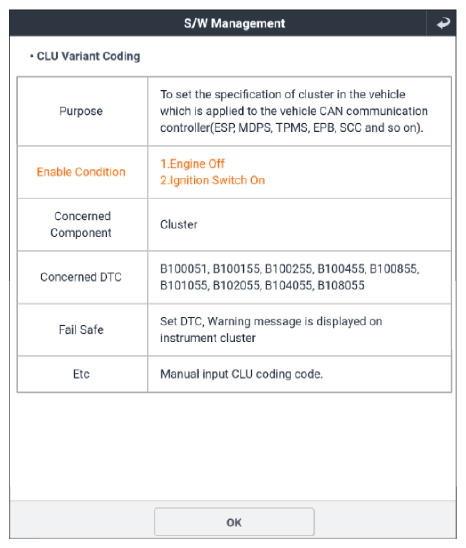

G15728180Courtesy of KIA MOTORS AMERICA, INC.

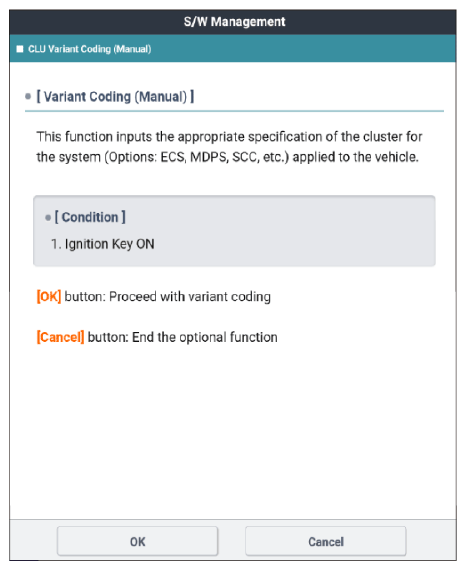

G15728181Courtesy of KIA MOTORS AMERICA, INC.

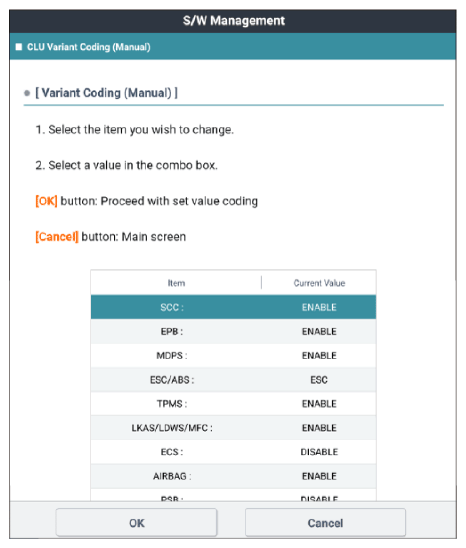

G15728182Courtesy of KIA MOTORS AMERICA, INC.

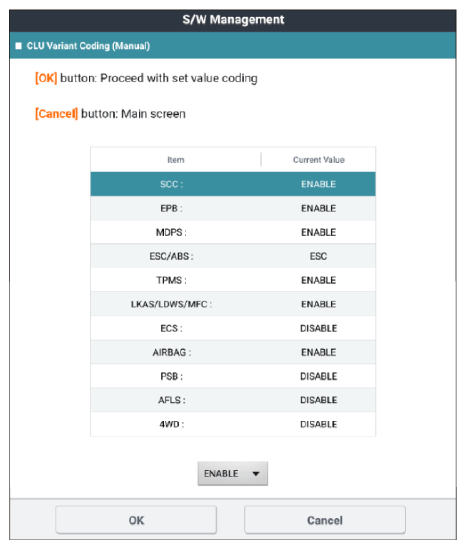

G15728183Courtesy of KIA MOTORS AMERICA, INC.
G15728184Courtesy of KIA MOTORS AMERICA, INC.
