Components And Components Location: Component

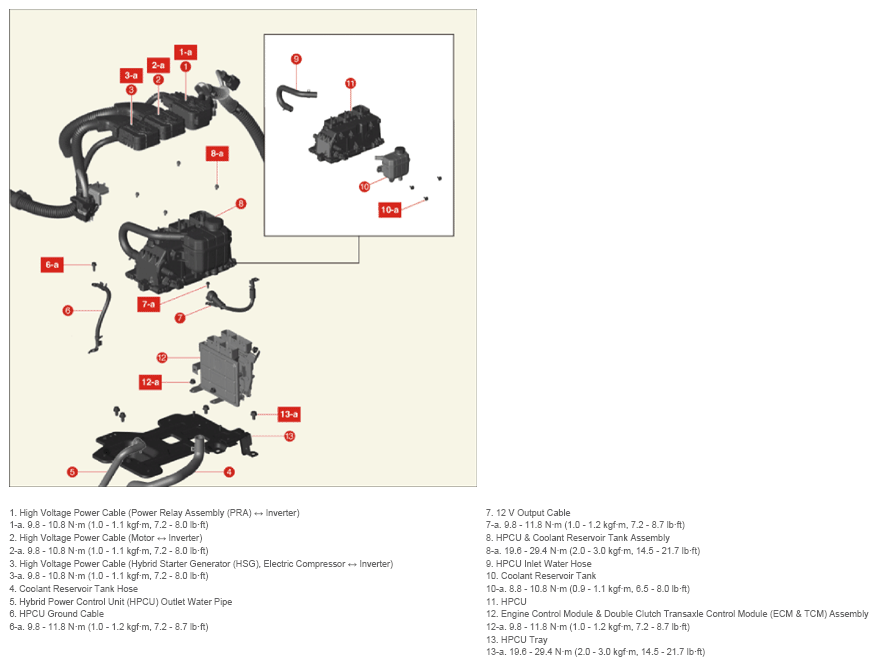

Fig 1: Hybrid Power Control Unit Components Location With Torque Specification

G15791770

Courtesy of KIA MOTORS AMERICA, INC.
