Components And Components Location: Components

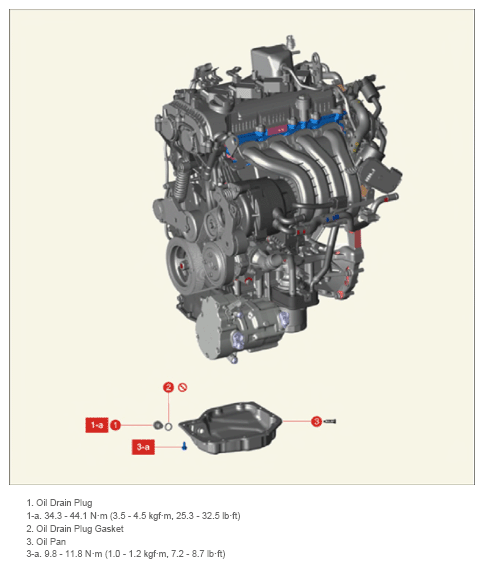

Fig 1: Oil Pan Components Location With Torque Specifications

G15787280

Courtesy of KIA MOTORS AMERICA, INC.
