Components And Components Location: Components

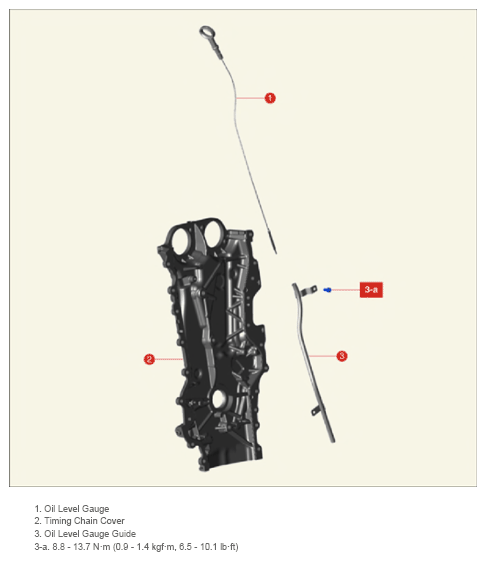

Fig 1: Oil Level Gauge And Guide Components Location With Torque Specifications

G15787287

Courtesy of KIA MOTORS AMERICA, INC.
