Components And Components Location: Components

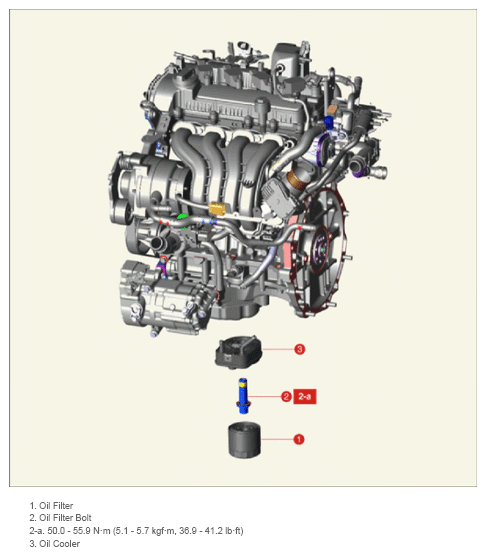

Fig 1: Oil Cooler Components Location With Torque Specification

G15787273

Courtesy of KIA MOTORS AMERICA, INC.
