Front Radar: Installation

WARNING: This page is about a different car, the 2024 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

NOTE:

Check the following below before performing the front radar installation angle adjustment.

Check that the radar surface is clean.
Check the suspension for damage.
Check the tire alignment.
Check the tire pressure.

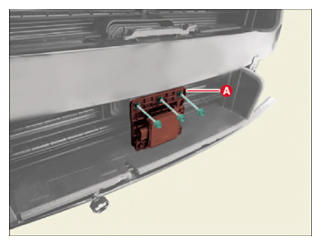

Install the front radar (A) after tightening the nuts.
Tightening torque:

8.9 - 10.7 N.m (0.9 - 1.1 kgf.m, 6.6 - 7.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

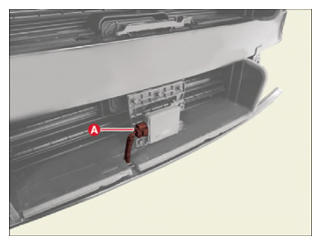

Connect the front radar connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

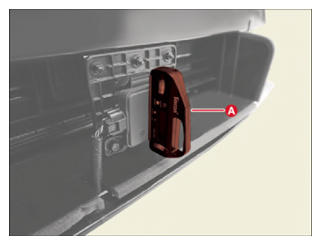

Check the front radar vertical angle by using the digital inclinometer (A).
Horizontal Angle: 0° ± 0.8°

Vertical Angle: 0° ± 0.4°

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Make sure to perform zero setting before using vertical protractor.
- Be careful with +/- readings when finding true vertical using vertical protractor.

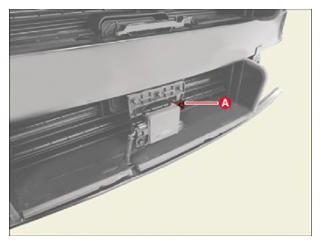

Adjust to vertical installation angle by turning the adjusting screw (A) of the front radar.
- turn clockwise: adjusting (+) angle
- turn counterclockwise: adjusting (-) angle
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Make sure that there is no debris, or reflecting object on the surface of the radar.
- Make sure that there is no debris, or reflecting object on the radiator grille.
Install the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

NOTE: Check that the front radar is clean before installing the front bumper assembly.
1. Perform the front radar inspection/calibration procedure by using the SST.
  (Refer to Front Radar Unit - "ADJUSTMENT ")
